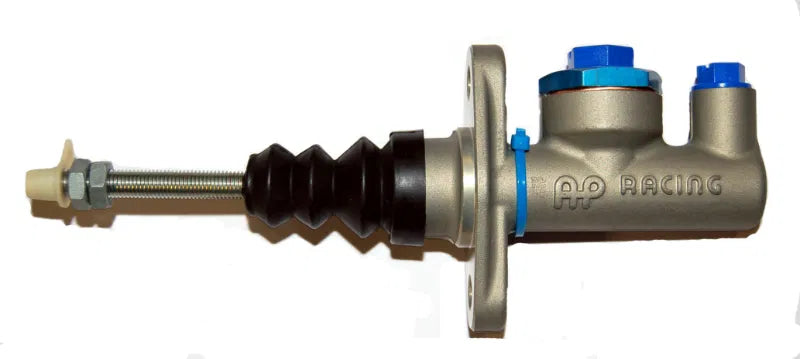

AP CP2623 Master Cylinder

AP CP2623 Master Cylinder

£189.99 GBP
£189.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Bore Size
Pushrod?

A lightweight compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted.

Features:
- Forged Aluminium Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.

Part Number Bore (mm) Pushrod Thread Pushrod Length Weight (g) Pushrod
CP2623-90PRT160 15.9 5/16" UNF 160mm 300 Standard
CP2623-905PRT115 16.8 5/16" UNF 115mm 300 Standard
CP2623-90NC 15.9 N/A N/A 300 No pushrod
CP2623-91NC 17.8 N/A N/A 300 No pushrod
CP2623-88PRT160 14.0 5/16" UNF 160mm 300 Standard

General Specs (All Selected Variants):

  • Full Stroke: 25.4mm (1.00")
  • Travel to Cut-Off: 0.68–1.09mm (0.27–0.43")
  • Inlet Thread: 7/16" x 20UNF
  • Outlet Thread: 3/8" x 24UNF
