AP Racing

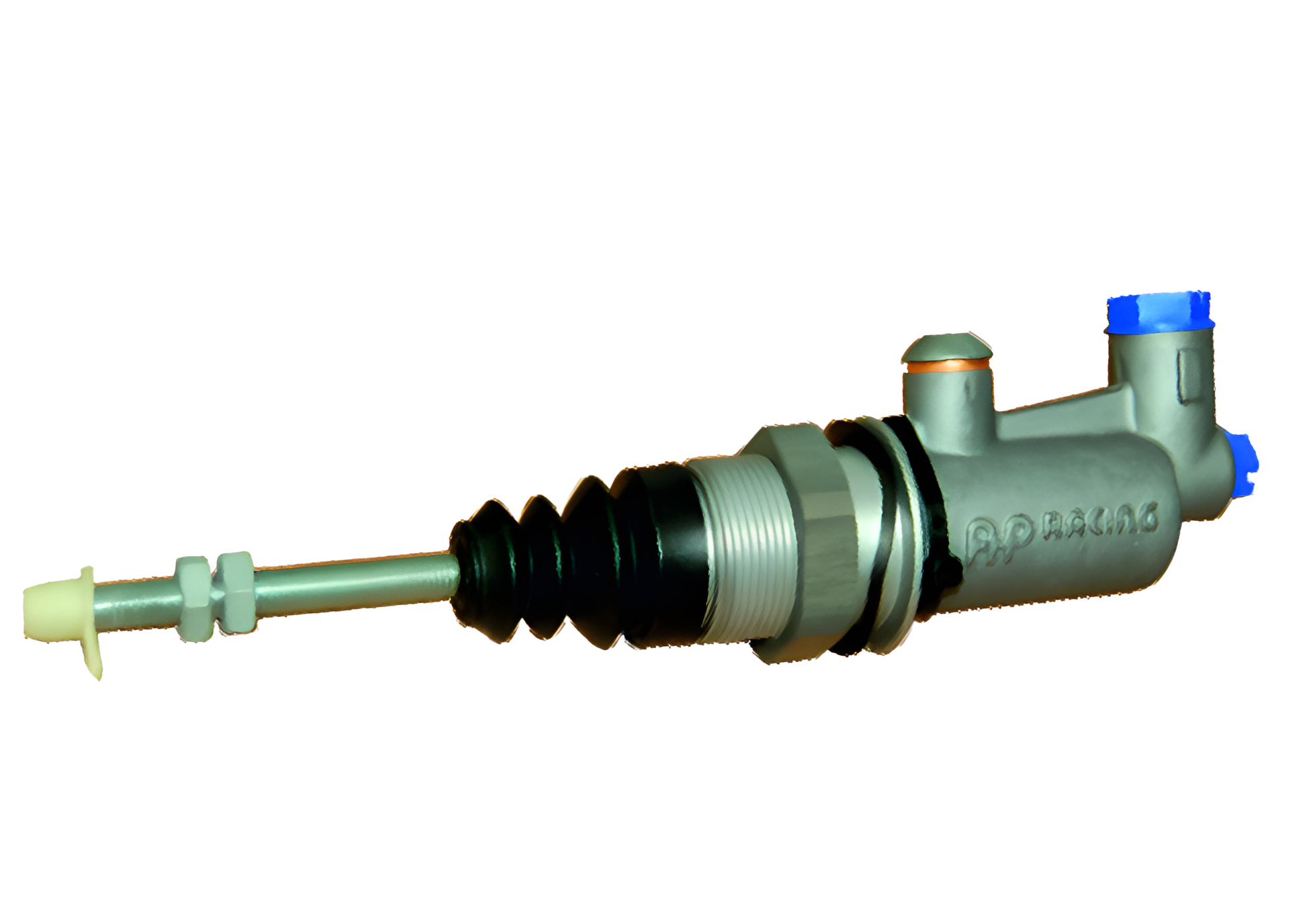

AP CP4400 Master Cylinder
AP CP4400 Master Cylinder
No reviews
Regular price
£239.99 GBP
Regular price
Sale price
£239.99 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The CP4400 Compact Master Cylinder is designed with a centre-lock bulkhead fixing (10–22mm), making it ideal for installations in composite structure race cars where space and mounting flexibility are critical.
With inlet and outlet ports positioned at the end of the cylinder, it provides improved clearance for components such as steering racks, making it well suited to tight cockpit and pedal box layouts.
Manufactured from lightweight aluminium alloy and featuring extra short travel to cut-off, it delivers precise and consistent hydraulic performance for race and rally applications.
| Part Number | Bore (mm) | Pushrod Thread | Pushrod Length | Weight (kg) | Pushrod Length |
|---|---|---|---|---|---|
| CP4400-91PRT135E | 17.8 | 5/16" UNF (PRT) | 135mm | 0.29 | Standard |
| CP4400-93PRM135E | 20.6 | M8 x 1.25 (PRM) | 135mm | 0.29 | Standard |
| CP4400-93PRT180E | 20.6 | 5/16" UNF (PRT) | 180mm | 0.29 | Longer |
Key Features
- Centre-lock bulkhead fixing (10–22mm range)
- End-mounted inlet/outlet ports for improved clearance
- Lightweight aluminium alloy construction
- Extra short travel to cut-off for improved response
- Designed for compact pedal box and bulkhead installations
General Specifications
- Weight: 0.29kg (0.64lbs)
- Full Stroke: 25.4mm (1.00")
- Travel to Cut-Off: 0.48–0.63mm (extra short)
- Inlet Thread: 7/16" x 20UNF
- Outlet Thread: 3/8" x 24UNF
