AP Racing

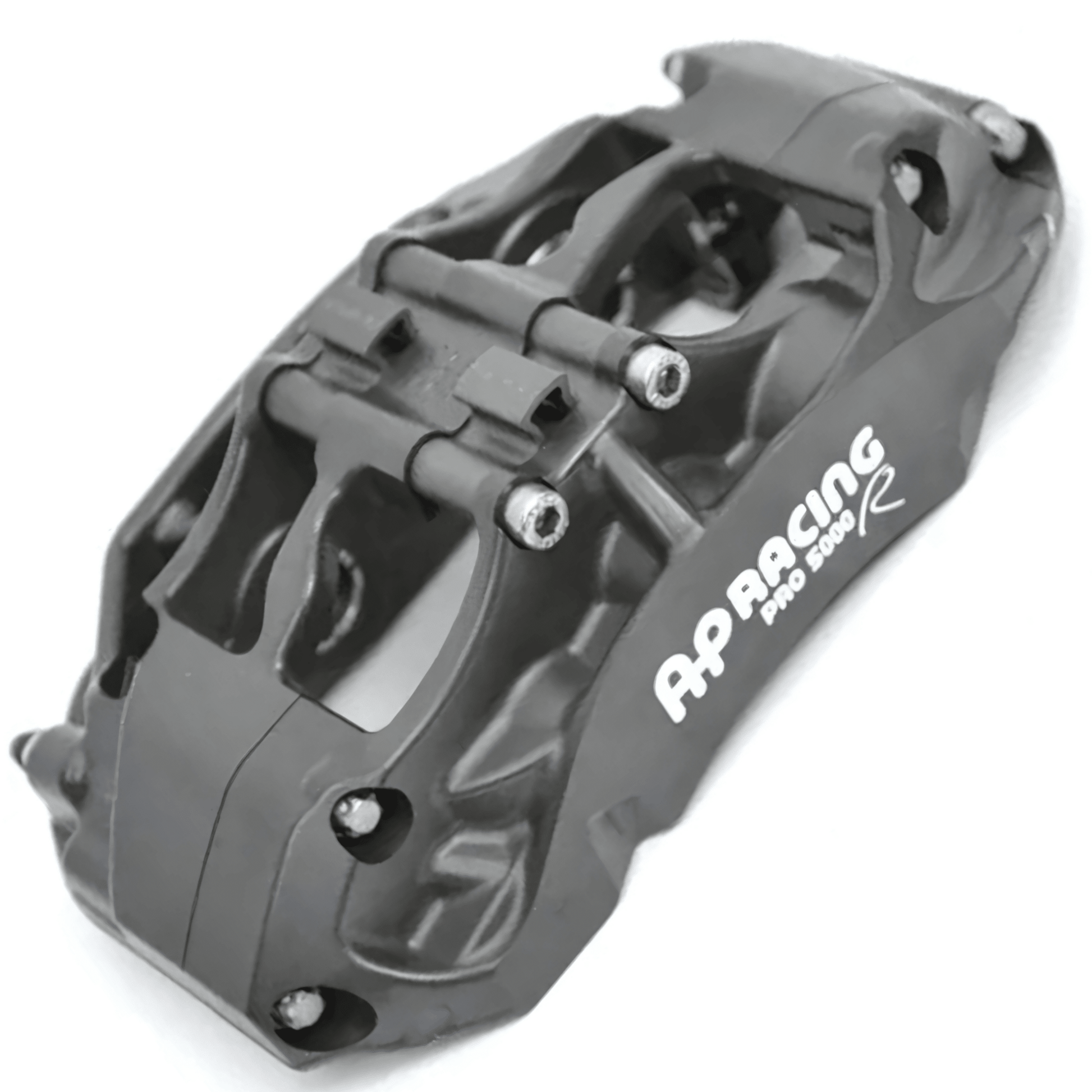

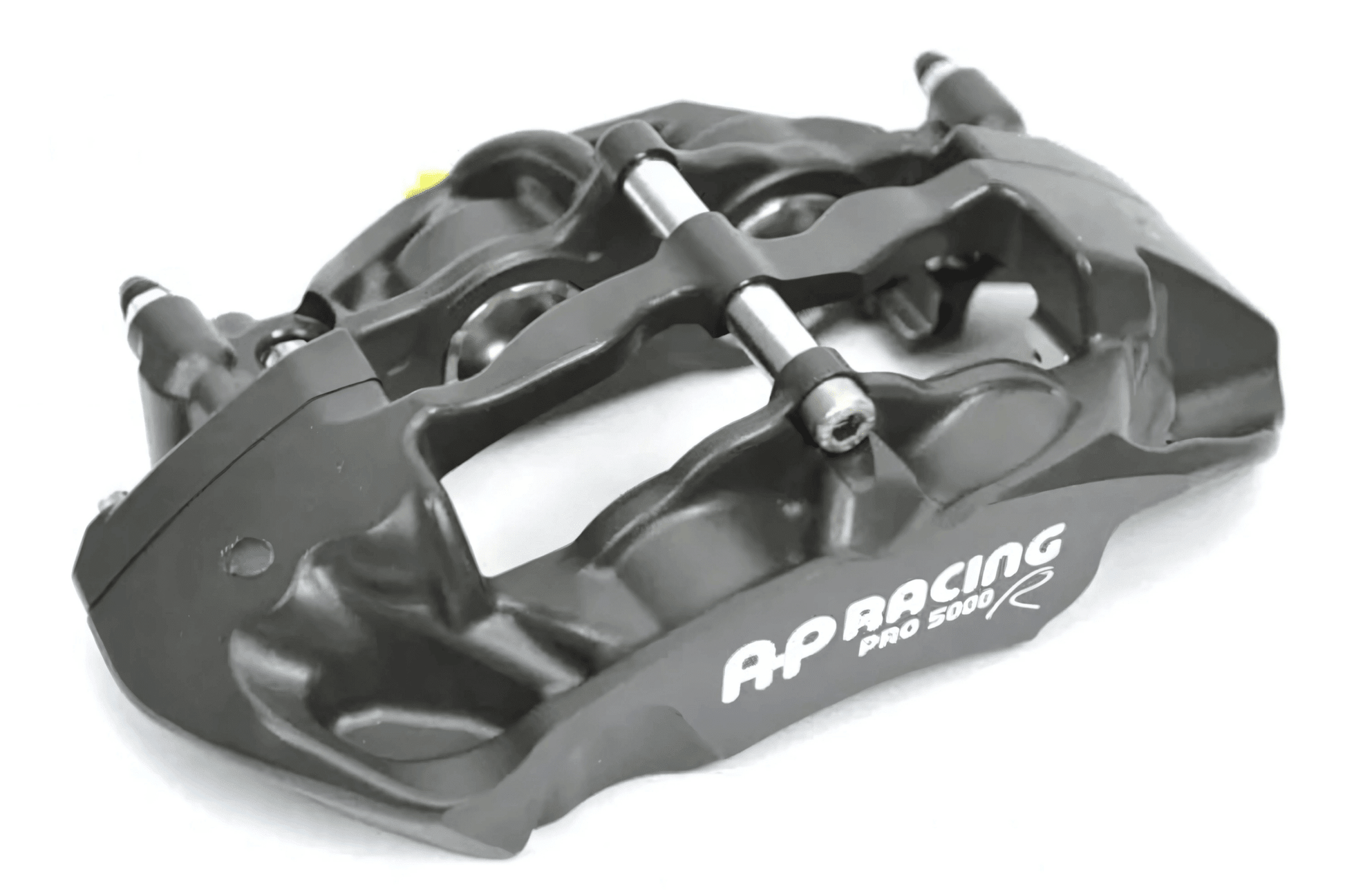

AP Racing PRO 5000R Caliper
AP Racing PRO 5000R Caliper
Regular price
£728.10 GBP
Regular price
Sale price
£728.10 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
A general motorsport front or rear caliper with 4 pistons. The CP9440 & CP9441 are an ally body caliper with stainless steel pistons.
This caliper is available in either large piston (CP9440) or small piston (CP9441) variants.
Features
- 2 Piston Size Options
- Available in Left or Right Handed Options
- Suitable For Disc Diameters from 315 to 330mm
- Radial Mounting Type
- Stainless Steel Pistons
| No. Of Pistons | 4 |
|---|---|
| Piston Diameter(s) (mm) (Large) | 36.0, 41.3 (2 of each) |
| Piston Diameter(s) (mm) (Small) | 31.8, 36.0 (2 of each) |
| Piston Area (cmsq) | 47.12 |
| Disc Diameter (mm) | 315 - 330 |
| Disc Thickness (mm) | 28.0 |
| Wieight (excl, pads) (Kg) | 2.16 |
| Hydraulic Threads | M10X1.0 |
| Mounting Type | Radial |
| Mounting Hole Dia (mm) | 12.2 |
| Mounting Centres (mm) | 152.0 |
| Mouting Offset (mm) | 44.0 |
| 'PL' Dimension (mm) | 57.8 |
