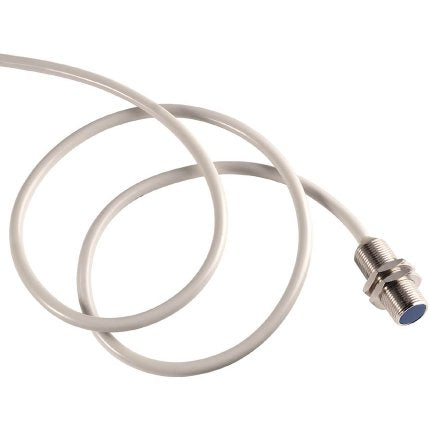

Brantz BR-2B Wheel Speed Sensor

This almost universal 12mm diameter BR2B Wheel Sensor can be mounted on a suspension strut so that it picks up the bolt heads off the brake disk as they pass by.

• A minimum of 4 bolts is required, however 6 is recommended.
• The more pick-up's available the more accurate the tripmeter will be. It has a 1mm sensing distance.

• An alternative positioning for this type of sensor is to pick up on flying tabs (minimum of 2 positioned 180* apart) fatened on the bolts of the Prop Shaft's Universal Joint.
• This is a 3-wire sensor with a Red LED to indicate when the target is in range.

• Cable length: 2mtr
• Total Body Length: 50mm
• Total Thread Length: 35mm

Brantz BR2 Wheel Speed Sensor – Precision & Redundancy

The Brantz BR2 wheel speed sensor provides accurate, real-time wheel speed data for your BR2 or other Brantz displays. Designed for rally, race, and track use, it’s compact, reliable, and built to withstand the rigours of motorsport.

How It Works

• The sensor monitors your wheel hub or driveshaft rotation and generates electronic pulses.
• These pulses are sent to your Brantz display, allowing it to calculate wheel speed and distance travelled accurately.
• When fitted in pairs, the BR2 sensors provide redundancy, ensuring that if one sensor fails, your display continues to receive data—vital for reliability in competition.

Easy Installation

1. Locate the wheel hub or driveshaft where the sensor will attach.
2. Mount the BR2 sensor using the supplied bracket or threaded fitting.
3. Connect the sensor cable to your Brantz display (signal and ground).
4. Secure the cable clear of hot or moving parts using cable ties.
5. Power on the display and configure the sensor parameters according to your wheel size and application.
6. For maximum reliability, fit a second sensor on the opposite wheel or output—this creates redundancy, giving you peace of mind in competition.

Key Benefits

• Accurate wheel speed readings for rally, race, or track applications
• Compact, durable, and race-ready
• Allows dual-sensor redundancy for critical applications
• Easy to install and integrate with any Brantz display

Tips

• Keep sensors aligned and clear of moving parts
• Secure cabling to avoid abrasion or heat exposure
• Use dual sensors where reliability is critical

The BR2 wheel speed sensor is a simple, robust solution for accurate wheel speed monitoring. Fit two sensors for redundancy and enjoy complete confidence in your display during every stage or track session.
