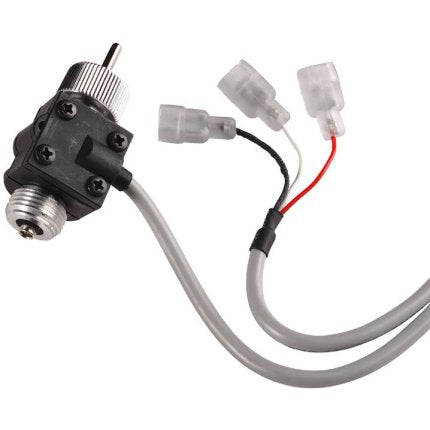

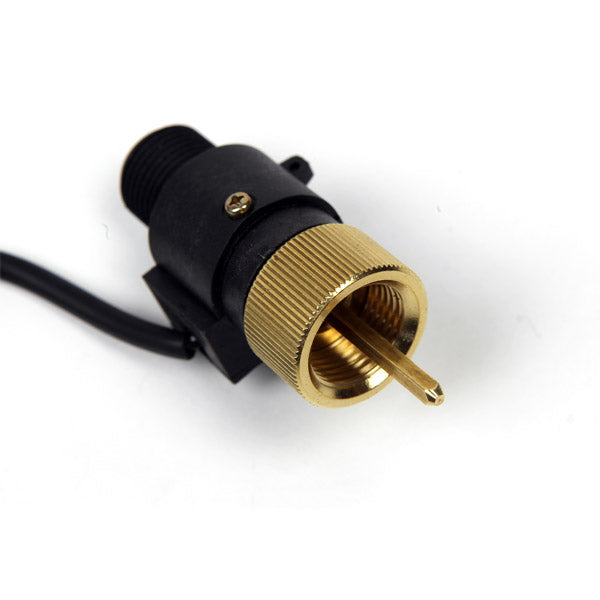

Brantz BR-4 (European) M18 x 1.5 Gearbox Sensor
Brantz BR-4 (European) M18 x 1.5 Gearbox Sensor
Only 1 left in stock
Couldn't load pickup availability
Brantz Ford / EU Gearbox Sensor
The Brantz Ford / EU Gearbox Sensor provides an electronic speed signal for compatible Brantz tripmeters and Retrotrips. Designed to fit inline between the gearbox and speedometer cable, it converts mechanical rotation into electronic pulses that the connected Brantz instrument uses to calculate speed and distance.
With an M18 × 1.5mm gearbox thread and a 2.7mm square drive pin, this sensor is suitable for a range of European vehicle applications, including selected models from Ford, GM, Vauxhall, Volvo, Volkswagen, Škoda, Lada and Fiat. Always check the gearbox thread and drive configuration before ordering to confirm compatibility with your vehicle.
Key Features
- Inline gearbox installation – fits between the gearbox speedometer output and the existing speedometer cable.
- Wide vehicle application – designed for selected European vehicles, including compatible Ford, GM, Vauxhall, Volvo, Volkswagen, Škoda, Lada and Fiat models.
- Electronic pulse output – converts mechanical rotation into a signal for a compatible Brantz instrument.
- 4 pulses per revolution – provides the sensor output specified for tripmeter calibration.
- Compact design – supplied with an approximately 1.5m cable for connection to the instrument.
- Brantz compatibility – specified for use with Brantz tripmeters and Retrotrips.
Specifications
| Specification | Details |
|---|---|
| Product type | Gearbox speed sensor |
| Application | Ford / European vehicles, subject to fitment |
| Gearbox thread | M18 × 1.5mm |
| Cable length | Approximately 1.5m |
| Output | 4 pulses per revolution |
| Drive type | 2.7mm square drive pin |
| Compatibility | Brantz tripmeters and Retrotrips |
| Weight | 118g |
Installation
The sensor installs inline between the gearbox speedometer output and the existing speedometer cable.
- Check that the gearbox thread and drive configuration match the sensor.
- Remove the existing speedometer cable from the gearbox output.
- Fit the sensor to the gearbox using the specified M18 × 1.5mm connection.
- Reconnect the speedometer cable to the sensor.
- Route the sensor wiring into the cabin and connect it to the compatible Brantz instrument according to the manufacturer's instructions.
- Secure the wiring away from heat sources, moving components and potential chafing points.
Fitment note: Vehicle compatibility can vary by model, year and gearbox. Confirm the thread and square-drive dimensions before purchase. Follow the Brantz instructions for electrical connections and tripmeter calibration.
Frequently Asked Questions
Which Brantz instruments is this sensor compatible with?
It is specified for use with Brantz tripmeters and Retrotrips. Confirm compatibility with your particular instrument and its connection requirements before installation.
Which vehicles does the Brantz Ford / EU Gearbox Sensor fit?
It is designed for selected European vehicle applications, including some Ford, GM, Vauxhall, Volvo, Volkswagen, Škoda, Lada and Fiat models. Compatibility is not universal, so check the gearbox thread and drive type.
What gearbox thread does the sensor use?
The sensor has an M18 × 1.5mm gearbox connection.
How many pulses does the sensor produce?
The specified output is four pulses per revolution. The connected instrument must be calibrated appropriately for the vehicle and sensor installation.
Can I retain the original speedometer cable?
The sensor is designed to fit inline between the gearbox and speedometer cable, allowing the existing cable to be reconnected where the vehicle's fittings are compatible.
Is the sensor suitable for rally and motorsport?
It can be used with compatible Brantz instrumentation in motorsport applications, including rallying. Correct fitment, wiring and calibration are essential for reliable distance and speed readings.
