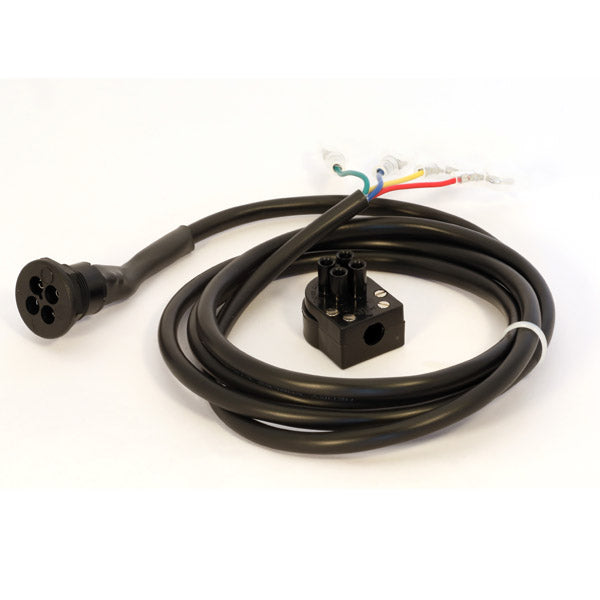

Brantz BR-45 CANBUS Plug Kit

The Brantz CANBUS Plug Kit is designed to connect your Brantz CANBUS Interface to compatible Brantz tripmeters fitted with a male plug connection.

Simple and effective, this kit ensures a secure and reliable link between your vehicle’s CANBUS system and your tripmeter setup.

Specifications

• Designed for use with Brantz CANBUS Interface
• Compatible with Brantz tripmeters featuring male plug connection
• Cable length: 1.5m

How It Works

The plug kit provides a direct connection between your CANBUS interface and tripmeter, allowing vehicle data to be transmitted accurately.

• Connects CANBUS interface to tripmeter
• Transfers data signals cleanly and reliably
• Enables integration with modern vehicle systems

Installation

1. Identify the male plug connection on your Brantz tripmeter
2. Connect the plug kit to the tripmeter
3. Attach the other end to the Brantz CANBUS Interface
4. Route the cable safely within the vehicle
5. Secure away from heat and moving parts

Key Benefits

• Simple plug-and-play connection
• Ensures reliable CANBUS data transfer
• Compatible with Brantz CANBUS systems
• Ideal for modern vehicle installations

A straightforward connection solution for integrating your Brantz CANBUS Interface with your tripmeter—quick to fit and built for dependable performance.
