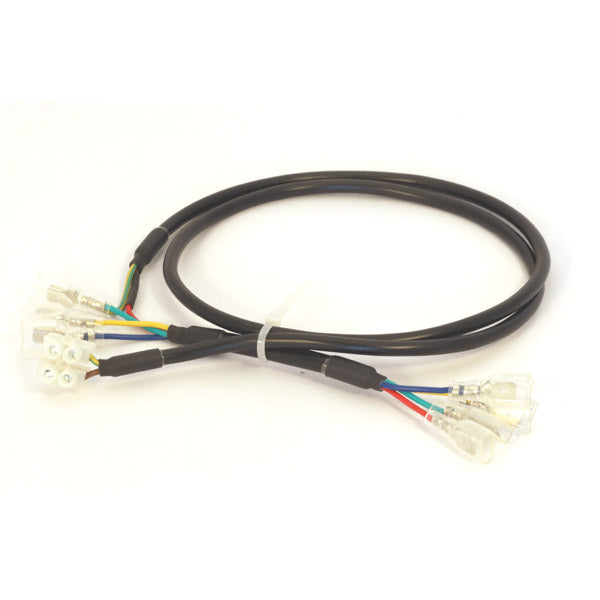

Brantz CANBUS Wiring Loom

The Brantz CANBUS Wiring Loom is designed to connect a Brantz CANBUS Interface to compatible Brantz tripmeters fitted with a grey sensor cable with crimped ends.

With a compact 0.8m cable, this loom provides a dedicated wiring connection between compatible Brantz equipment, helping integrate your tripmeter setup with the vehicle's CANBUS interface.

Key Features

• Designed for the Brantz CANBUS Interface – connects the interface to compatible Brantz tripmeters.
• For crimped sensor cable connections – intended for tripmeters using a grey sensor cable with crimped ends.
• Compact 0.8m cable – suitable for installations where a shorter wiring loom is appropriate.
• Dedicated wiring solution – provides the connection between compatible tripmeter wiring and the CANBUS Interface.
• Motorsport applications – suited to compatible Brantz installations in rally and other motorsport vehicles.

Specifications

Installation

1. Confirm that your Brantz tripmeter has the specified grey sensor cable with crimped ends.
2. Identify the appropriate connections according to the Brantz installation instructions.
3. Connect the wiring loom to the tripmeter wiring and CANBUS Interface as directed by the manufacturer.
4. Route the loom securely, keeping it clear of heat sources, moving components and potential chafing points.
5. Check the connections and verify correct operation before using the system.

Compatibility note: This loom is intended for compatible Brantz tripmeters with the specified sensor cable arrangement. Check the connector type and requirements of your CANBUS Interface before ordering. Do not assume compatibility with every Brantz tripmeter or vehicle CANBUS system.

Frequently Asked Questions

What is the Brantz CANBUS Wiring Loom used for?

It connects compatible Brantz tripmeters, using a grey sensor cable with crimped ends, to the Brantz CANBUS Interface.

Which tripmeters is it compatible with?

It is intended for Brantz tripmeters featuring the specified grey sensor cable and crimped-end connection. Confirm the configuration of your particular instrument before purchase.

How long is the wiring loom?

The cable length is 0.8m.

Is this the same as the Brantz CANBUS Plug Kit?

They are different connection accessories. The CANBUS Plug Kit is intended for tripmeters with a male plug connection, while this wiring loom is intended for tripmeters with a grey sensor cable with crimped ends. Check which connection your equipment requires.

Does this loom include the Brantz CANBUS Interface?

The loom is described as a connection accessory for the interface. Check the product contents and the manufacturer's installation requirements to confirm which additional components are needed.
