Land Rover Defender 200TDI RHD '91-'94 Silicone Heater Coolant Hose Kit
Land Rover Defender 200TDI RHD '91-'94 Silicone Heater Coolant Hose Kit
Couldn't load pickup availability

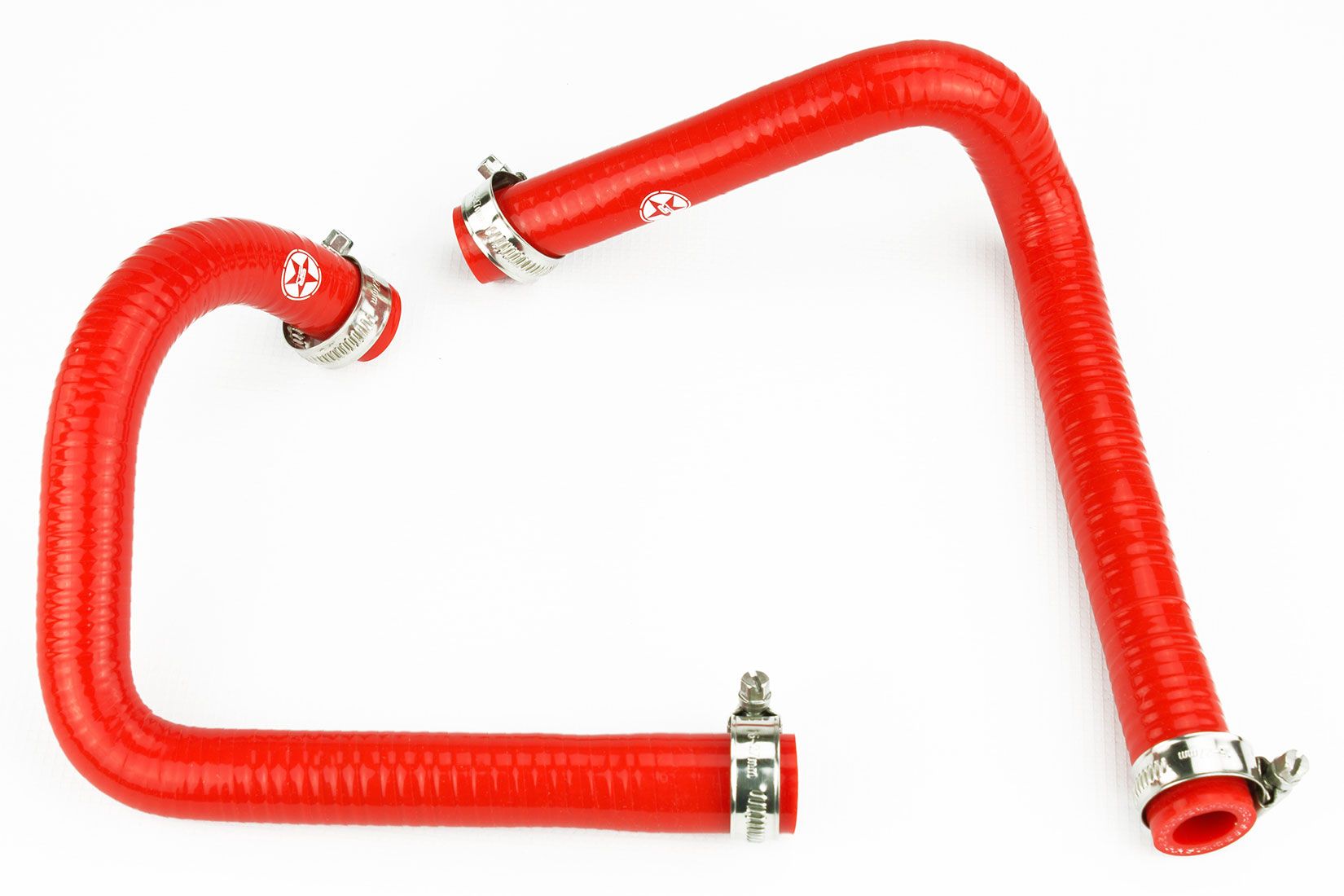

Stoney Racing DEF200-0013 Silicone Heater Coolant Hose Kit – Land Rover Defender 200TDI RHD 1991–1994
The Stoney Racing DEF200-0013 is a silicone replacement for the two heater hoses on the Land Rover Defender 200TDI RHD 1991–1994, 1991–1994.
The kit replaces the 2 heater hoses that feed the heater matrix. Each hose is built from 4-ply silicone with 3-ply polyester reinforcement, so it will not perish, swell or crack like ageing rubber hoses.
It is available in 7 colours and can be ordered with a full set of stainless worm-drive, spring or stainless T-bolt clamps, or without clamps if you plan to reuse your originals.
Key Features
- Direct-fit replacement for 2 heater hoses
- Fits right-hand-drive Defender 200TDI models from chassis HA700656, with or without AC
- Manual and automatic, RHD only
- 4-ply silicone with 3-ply polyester reinforcement
- Working pressure over 7 bar, burst pressure over 10 bar
- Temperature range −50°C to 180°C
- Choice of 7 colours
- Optional full clamp kit in 3 styles
- 3-year manufacturer warranty
Specifications
| Specification Details | |
|---|---|
| Brand | Stoney Racing |
| Product Code | DEF200-0013 |
| Vehicle | Land Rover Defender 90/110 (late 200TDI, from chassis HA700656) |
| Model Years | 1991–1994 |
| Engine | 2.5 200TDI |
| Transmission | Manual and automatic |
| Hoses in Kit | 2 |
| Construction | Approx. 4.5mm wall, 4-ply silicone, 3-ply polyester reinforcement |
| Working Pressure | Over 7 bar |
| Burst Pressure | Over 10 bar |
| Temperature Range | −50°C to 180°C |
| Colours | Blue, Red, Black, Green, Yellow, Purple, Orange |
| Warranty | 3 years |
Hoses Included
- Heater hose 1
- Heater hose 2
Clamp Options
Black Spring Clips are the type most manufacturers use. They give the most even clamping pressure and are generally the best choice for coolant hoses, although being mild steel they can show surface rust over time.
Stainless Worm-Drive clamps are fully stainless, so they will not rust, and they are easier to fit in tight spaces. A good choice if engine bay appearance matters.
Stainless T-Bolt clamps are the heaviest-duty option, ideal where maximum clamping force is wanted.
None lets you reuse your existing clamps. These hoses are slightly thicker than standard, so some original clamps may be too small.
Important Fitting Information
- Some coolants are not compatible with silicone hoses. Check your coolant before fitting.
- Use washing-up liquid to lubricate the hoses when fitting. Never use WD40 or any oil-based lubricant.
- Always dilute coolant with de-ionised water, never tap water, and never mix coolant types.
What's in the Box?
- 2 × Stoney Racing reinforced silicone hoses in your chosen colour
- Full clamp set in your chosen style (if selected)
Frequently Asked Questions
Does it fit models with air conditioning?
Yes. This heater kit fits both AC and non-AC models from chassis HA700656.
Why are some colours on pre-order?
Stoney Racing makes some colour and clamp combinations to order. These are marked as pre-order and dispatched in around 3–6 weeks.
Which clamps should I choose?
Spring clips give the most even clamping force for coolant hoses. Stainless worm-drive clamps will not rust and are easier to fit. T-bolt clamps are the strongest option.
Is my coolant compatible?
Most are, but some coolants (particularly some OAT types containing 2-EHA) can damage silicone. Read the Important Fitting Notes linked on this page, which list compatible coolants.
What warranty do I get?
Stoney Racing silicone hoses carry a 3-year warranty.
