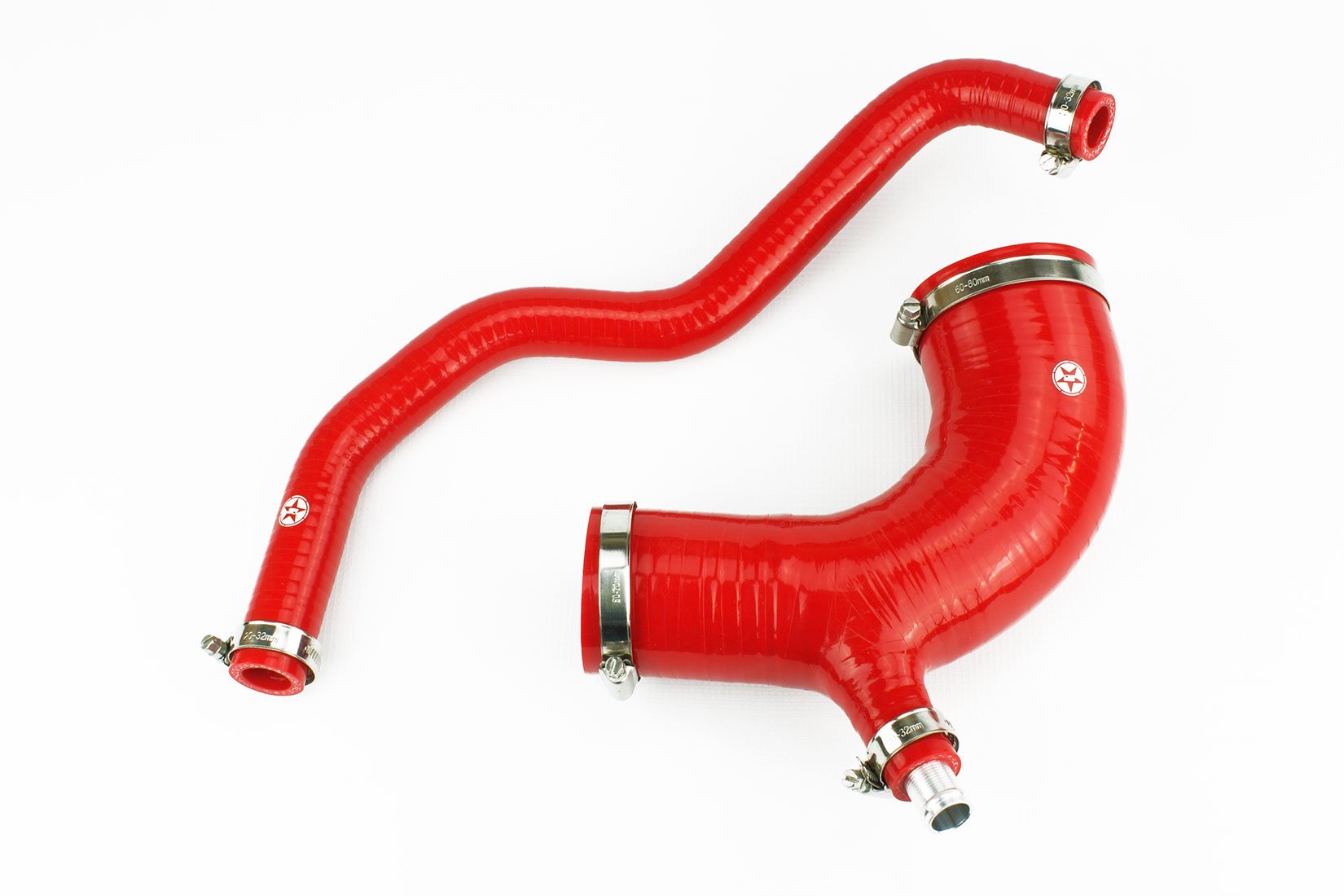

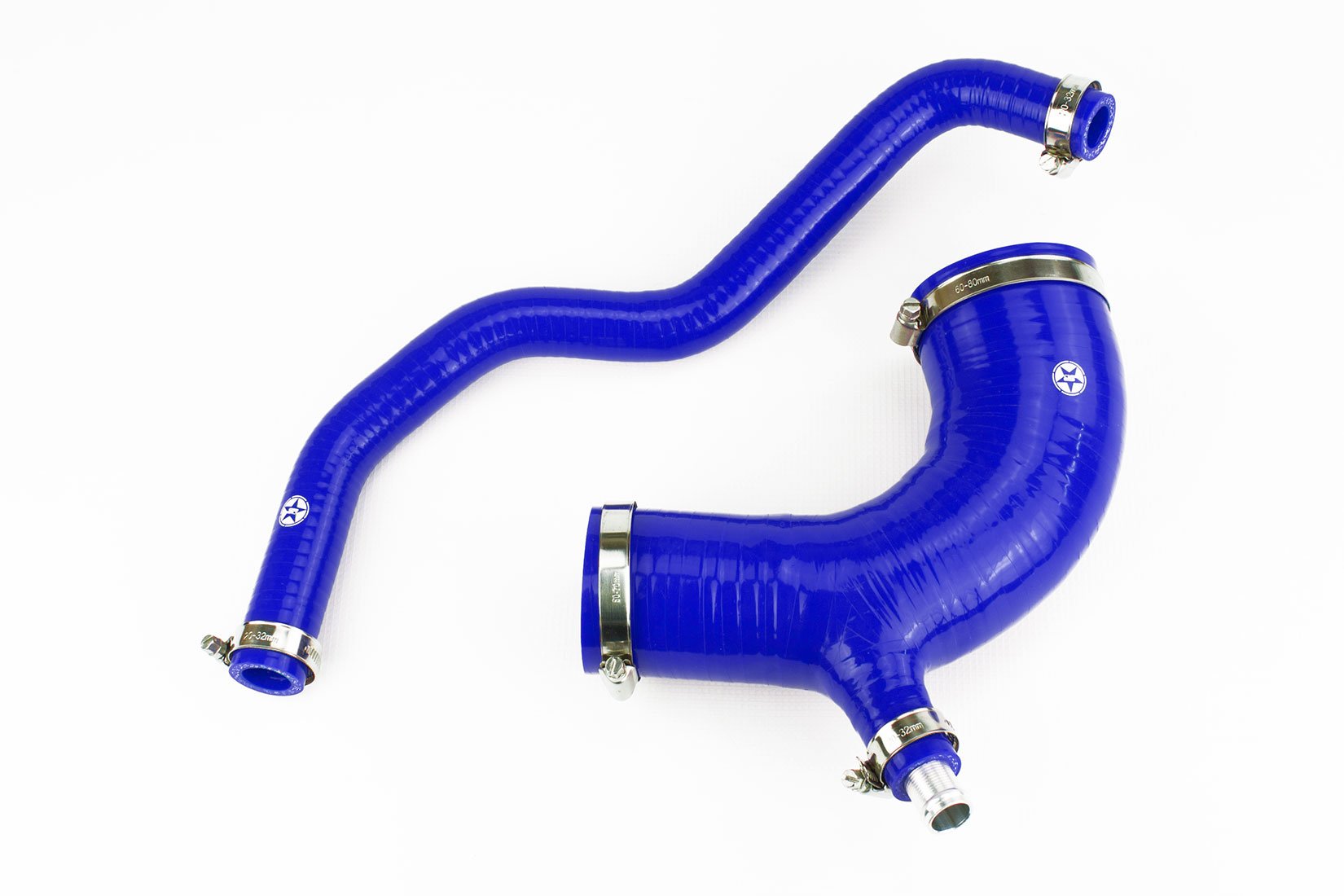

Stoney Racing DEFTD4-0002 Silicone Air Intake Hose Kit – Land Rover Defender Td4 2.2 TDCi
The Stoney Racing DEFTD4-0002 is a silicone replacement for the air intake hose on the Land Rover Defender Td4 2.2 TDCi, 2012–2016.
It replaces the large intake hose from the airbox to the turbo, including the crankcase ventilation hose. Each hose is built from 5-ply silicone with 4-ply polyester reinforcement, so it will not perish, swell or crack like ageing rubber hoses.
It is available in 3 colours and can be ordered with a full set of stainless worm-drive or stainless T-bolt clamps, or without clamps if you plan to reuse your originals.
Key Features
- Direct-fit replacement for 1 air intake hose
- Fits Defender 2.2 TDCi Puma models
- All transmissions, RHD and LHD
- 5-ply silicone with 4-ply polyester reinforcement
- Working pressure over 9 bar, burst pressure over 12 bar
- Temperature range −50°C to 180°C
- Choice of 3 colours
- Optional full clamp kit in 2 styles
- 3-year manufacturer warranty
Specifications
| Specification Details | |
|---|---|
| Brand | Stoney Racing |
| Product Code | DEFTD4-0002 |
| Vehicle | Land Rover Defender 90/110/130 Td4 2.2 TDCi (Puma) |
| Model Years | 2012–2016 |
| Engine | 2.2 TDCi Puma |
| Transmission | All |
| Hoses in Kit | 1 |
| Construction | Approx. 4.5mm wall, 4-ply silicone, 3-ply polyester reinforcement |
| Working Pressure | Over 9 bar |
| Burst Pressure | Over 12 bar |
| Temperature Range | −50°C to 180°C |
| Colours | Blue, Red, Black |
| Warranty | 3 years |
Hoses Included
- Large air intake hose, airbox to turbo, with crankcase ventilation hose
Clamp Options
Stainless Worm-Drive clamps are fully stainless, so they will not rust, and they are easier to fit in tight spaces. A good choice if engine bay appearance matters.
Stainless T-Bolt clamps are the heaviest-duty option, ideal where maximum clamping force is wanted.
None lets you reuse your existing clamps. These hoses are slightly thicker than standard, so some original clamps may be too small.
Important Fitting Information
- The thicker 5.4mm wall stops the hose collapsing under boost.
- Use washing-up liquid to lubricate the hoses when fitting. Never use WD40 or any oil-based lubricant.
- Always dilute coolant with de-ionised water, never tap water, and never mix coolant types.
What's in the Box?
- 1 × Stoney Racing reinforced silicone hose in your chosen colour
- Full clamp set in your chosen style (if selected)
Frequently Asked Questions
Will it fit the 2.4 TDCi?
No. The 2.4 has its own intake kit.
Which clamps should I choose?
Stainless worm-drive clamps are easy to fit and will not rust. T-bolt clamps give the most clamping force, which is ideal on boosted hoses. Spring clips are not offered for this kit.
What warranty do I get?
Stoney Racing silicone hoses carry a 3-year warranty.
