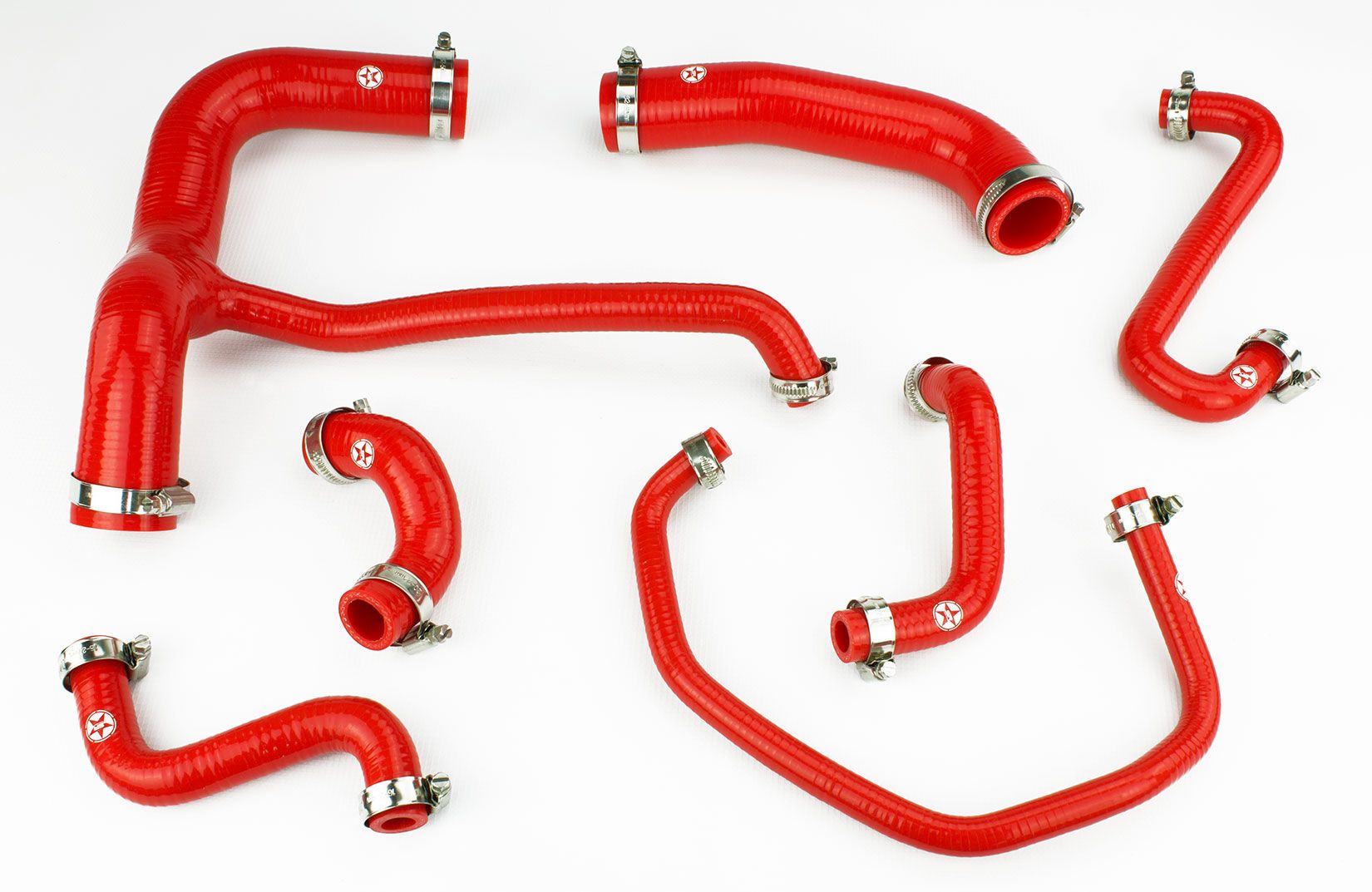

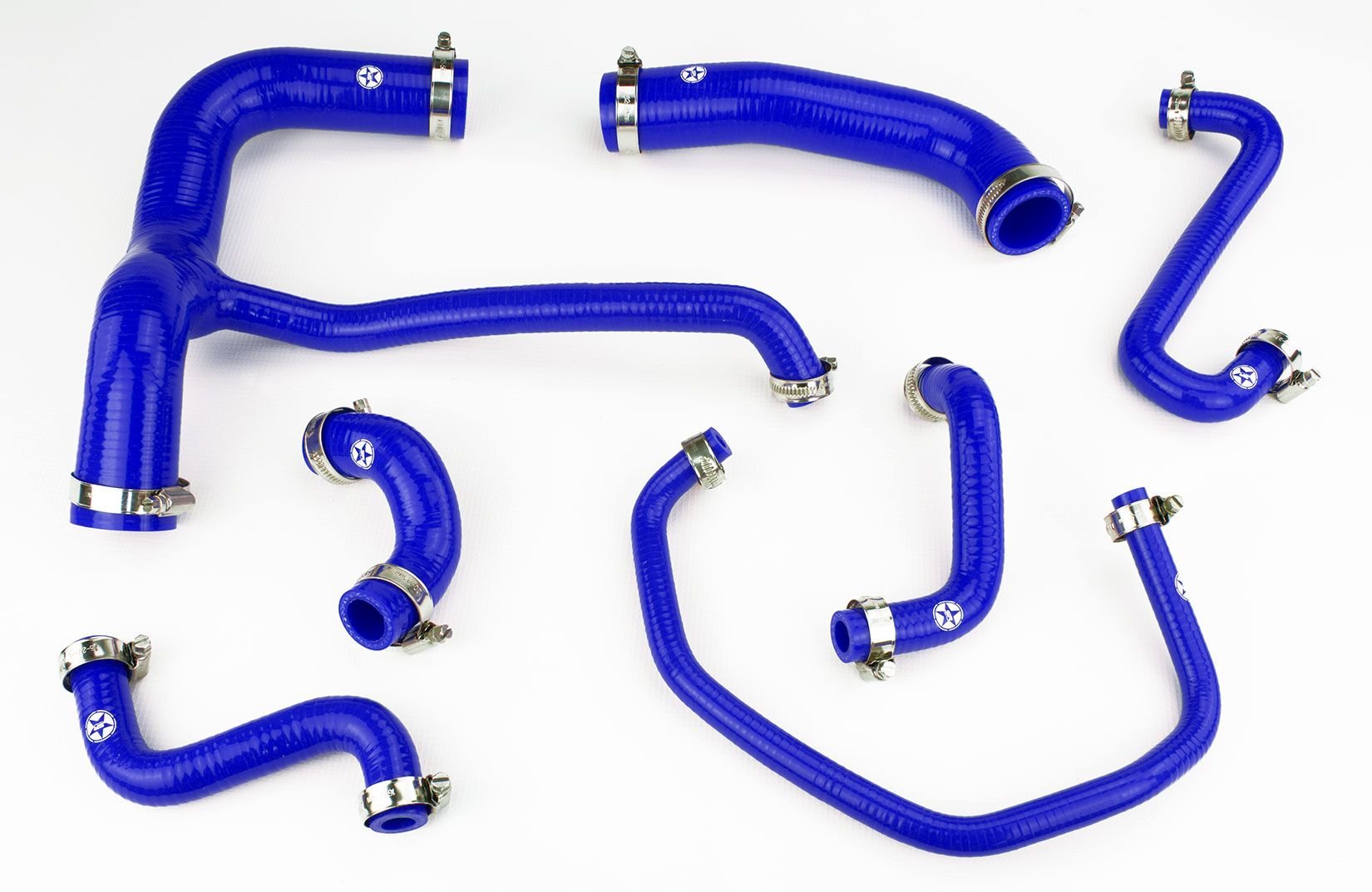

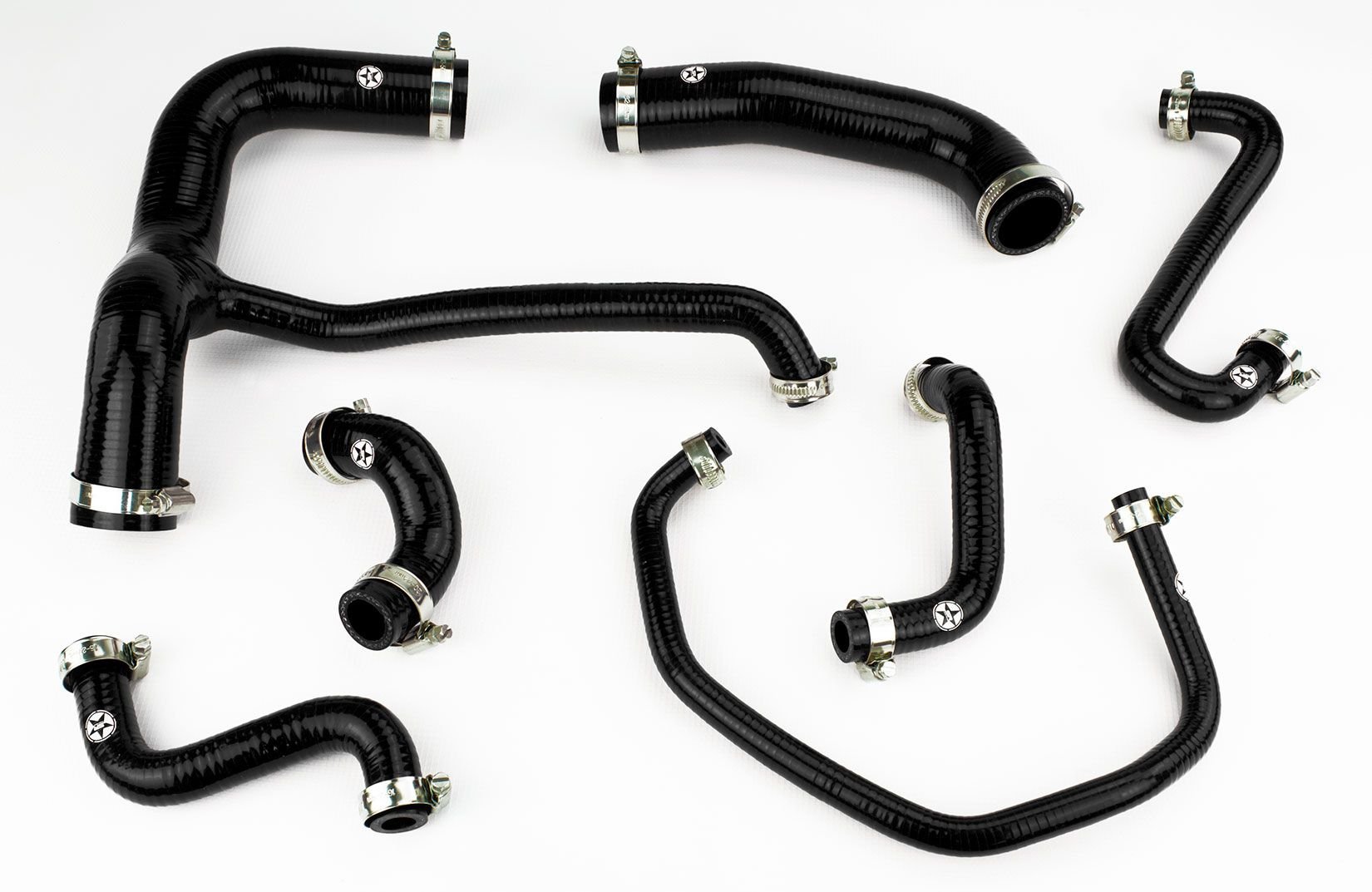

Stoney Racing DIS200-0008 Silicone Radiator Coolant Hose Kit – Land Rover Discovery 200TDI
The Stoney Racing DIS200-0008 is a silicone replacement for the main radiator and heater coolant hoses on the Land Rover Discovery 200TDI, 1989–1994.
The kit replaces all 7 coolant hoses in the engine bay, from the radiator hoses to the heater, bypass and expansion tank hoses. Each hose is built from 4-ply silicone with 3-ply polyester reinforcement, so it will not perish, swell or crack like ageing rubber hoses.
It is available in 7 colours and can be ordered with a full set of stainless worm-drive, spring or stainless T-bolt clamps, or without clamps if you plan to reuse your originals.
Key Features
- Direct-fit replacement for 7 coolant hoses
- Fits all Discovery MK1 200TDI models, 1989–1994
- Manual and automatic, RHD and LHD
- 4-ply silicone with 3-ply polyester reinforcement
- Working pressure over 7 bar, burst pressure over 10 bar
- Temperature range −50°C to 180°C
- Choice of 7 colours
- Optional full clamp kit in 3 styles
- 3-year manufacturer warranty
Specifications
| Specification Details | |
|---|---|
| Brand | Stoney Racing |
| Product Code | DIS200-0008 |
| Vehicle | Land Rover Discovery MK1 200TDI |
| Model Years | 1989–1994 |
| Engine | 2.5 200TDI |
| Transmission | Manual and automatic |
| Hoses in Kit | 7 |
| Construction | Approx. 4.5mm wall, 4-ply silicone, 3-ply polyester reinforcement |
| Working Pressure | Over 7 bar |
| Burst Pressure | Over 10 bar |
| Temperature Range | −50°C to 180°C |
| Colours | Blue, Red, Black, Green, Yellow, Purple, Orange |
| Warranty | 3 years |
Hoses Included
- Top radiator hose
- Bottom radiator hose
- Heater matrix hose 1
- Heater matrix hose 2
- Heat pipe hose
- Water pump bypass hose
- Expansion tank hose
Clamp Options
Black Spring Clips are the type most manufacturers use. They give the most even clamping pressure and are generally the best choice for coolant hoses, although being mild steel they can show surface rust over time.
Stainless Worm-Drive clamps are fully stainless, so they will not rust, and they are easier to fit in tight spaces. A good choice if engine bay appearance matters.
Stainless T-Bolt clamps are the heaviest-duty option, ideal where maximum clamping force is wanted.
None lets you reuse your existing clamps. These hoses are slightly thicker than standard, so some original clamps may be too small.
Important Fitting Information
- Some coolants are not compatible with silicone hoses. Check your coolant before fitting.
- Use washing-up liquid to lubricate the hoses when fitting. Never use WD40 or any oil-based lubricant.
- Always dilute coolant with de-ionised water, never tap water, and never mix coolant types.
What's in the Box?
- 7 × Stoney Racing reinforced silicone hoses in your chosen colour
- Full clamp set in your chosen style (if selected)
Frequently Asked Questions
Does it fit left-hand-drive Discoveries?
Yes. It fits all 200TDI Discovery models, RHD and LHD.
Why are some colours on pre-order?
Stoney Racing makes some colour and clamp combinations to order. These are marked as pre-order and dispatched in around 3–6 weeks.
Which clamps should I choose?
Spring clips give the most even clamping force for coolant hoses. Stainless worm-drive clamps will not rust and are easier to fit. T-bolt clamps are the strongest option.
Can I reuse my original clamps?
Often, yes. However, these hoses are slightly thicker than the originals, so some factory clamps may be too small.
Is my coolant compatible?
Most are, but some coolants (particularly some OAT types containing 2-EHA) can damage silicone. Read the Important Fitting Notes linked on this page, which list compatible coolants.
What warranty do I get?
Stoney Racing silicone hoses carry a 3-year warranty.
