Stoney Racing LRFL-0001 Silicone PRT Radiator Coolant Hose Kit – Land Rover Freelander MK1 1.8 Petrol (PRT)

The Stoney Racing LRFL-0001 is a silicone replacement for the radiator, heater and expansion tank coolant hoses on the Land Rover Freelander MK1 1.8 Petrol (PRT), 1997–2006 (to VIN 5A476242).

The kit replaces 9 coolant hoses, including the plastic expansion tank pipes that are prone to cracking. It can also be used to retrofit a PRT to a non-PRT manual 1.8, a popular head gasket protection upgrade. Each hose is built from 4-ply silicone with 3-ply polyester reinforcement, so it will not perish, swell or crack like ageing rubber hoses.

It is available in 3 colours and can be ordered with a full set of stainless worm-drive, spring or stainless T-bolt clamps, or without clamps if you plan to reuse your originals.

Key Features

• Direct-fit replacement for 9 coolant hoses
• Fits right-hand-drive Freelander MK1 1.8 petrol models with PRT, up to VIN 5A476242
• Manual, RHD only
• 4-ply silicone with 3-ply polyester reinforcement
• Working pressure over 7 bar, burst pressure over 10 bar
• Temperature range −50°C to 180°C
• Choice of 3 colours
• Optional full clamp kit in 3 styles
• 3-year manufacturer warranty

Specifications

Hoses Included

• Upper radiator hose to T-piece
• T-piece to coolant rail
• T-piece to PRT
• PRT to block
• Lower radiator hose to PRT
• Heater matrix inlet hose
• Heater matrix outlet hose
• Coolant rail to expansion tank hose
• Expansion tank overflow assembly hose

Clamp Options

Black Spring Clips are the type most manufacturers use. They give the most even clamping pressure and are generally the best choice for coolant hoses, although being mild steel they can show surface rust over time.

Stainless Worm-Drive clamps are fully stainless, so they will not rust, and they are easier to fit in tight spaces. A good choice if engine bay appearance matters.

Stainless T-Bolt clamps are the heaviest-duty option, ideal where maximum clamping force is wanted.

None lets you reuse your existing clamps. These hoses are slightly thicker than standard, so some original clamps may be too small.

Important Fitting Information

• Some coolants are not compatible with silicone hoses. Check your coolant before fitting.
• One hose contains an aluminium bleed screw assembly. Clamp it like any other hose end or it can pop out under pressure.
• Fits up to VIN 5A476242 only.
• Use washing-up liquid to lubricate the hoses when fitting. Never use WD40 or any oil-based lubricant.
• Always dilute coolant with de-ionised water, never tap water, and never mix coolant types.

What's in the Box?

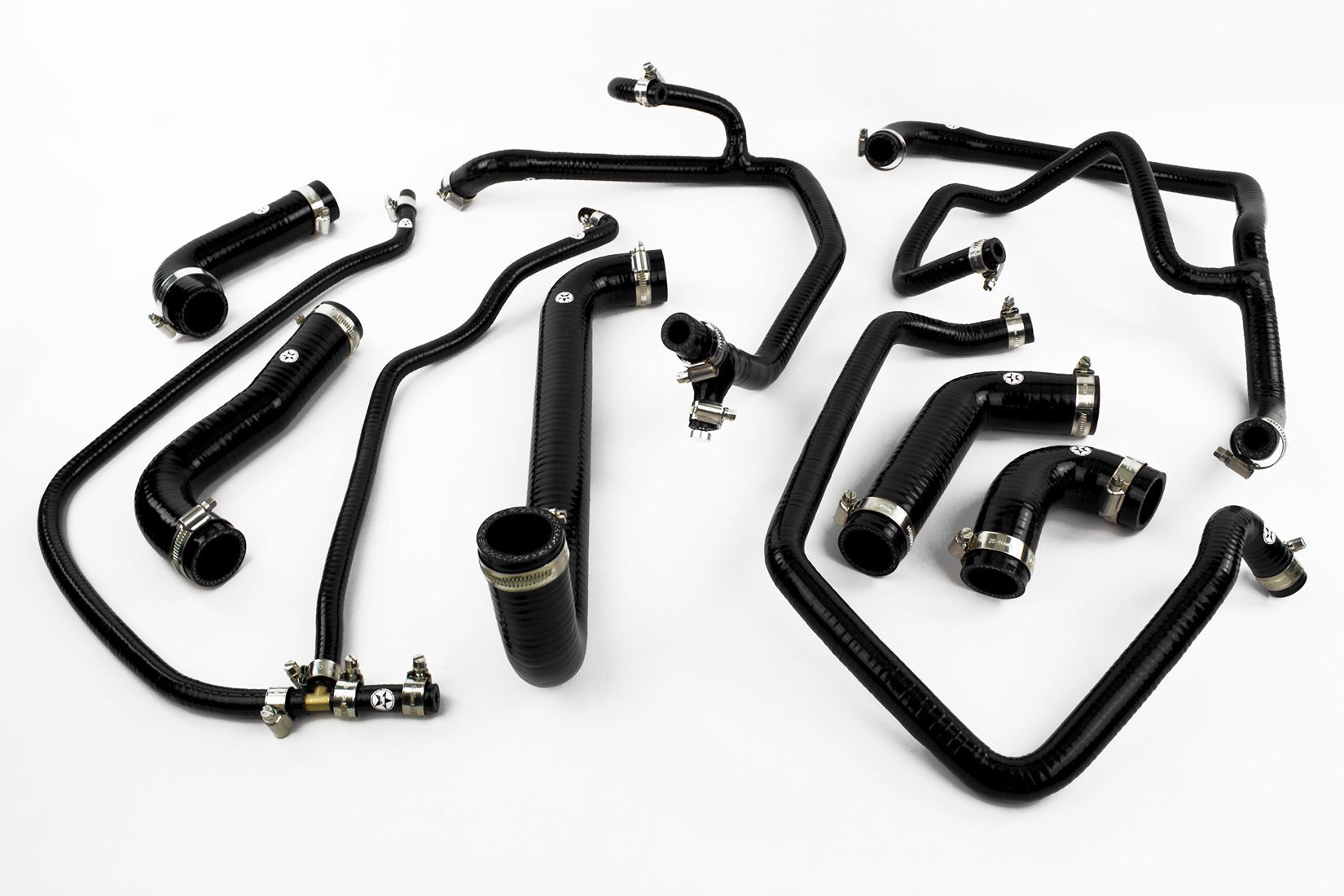

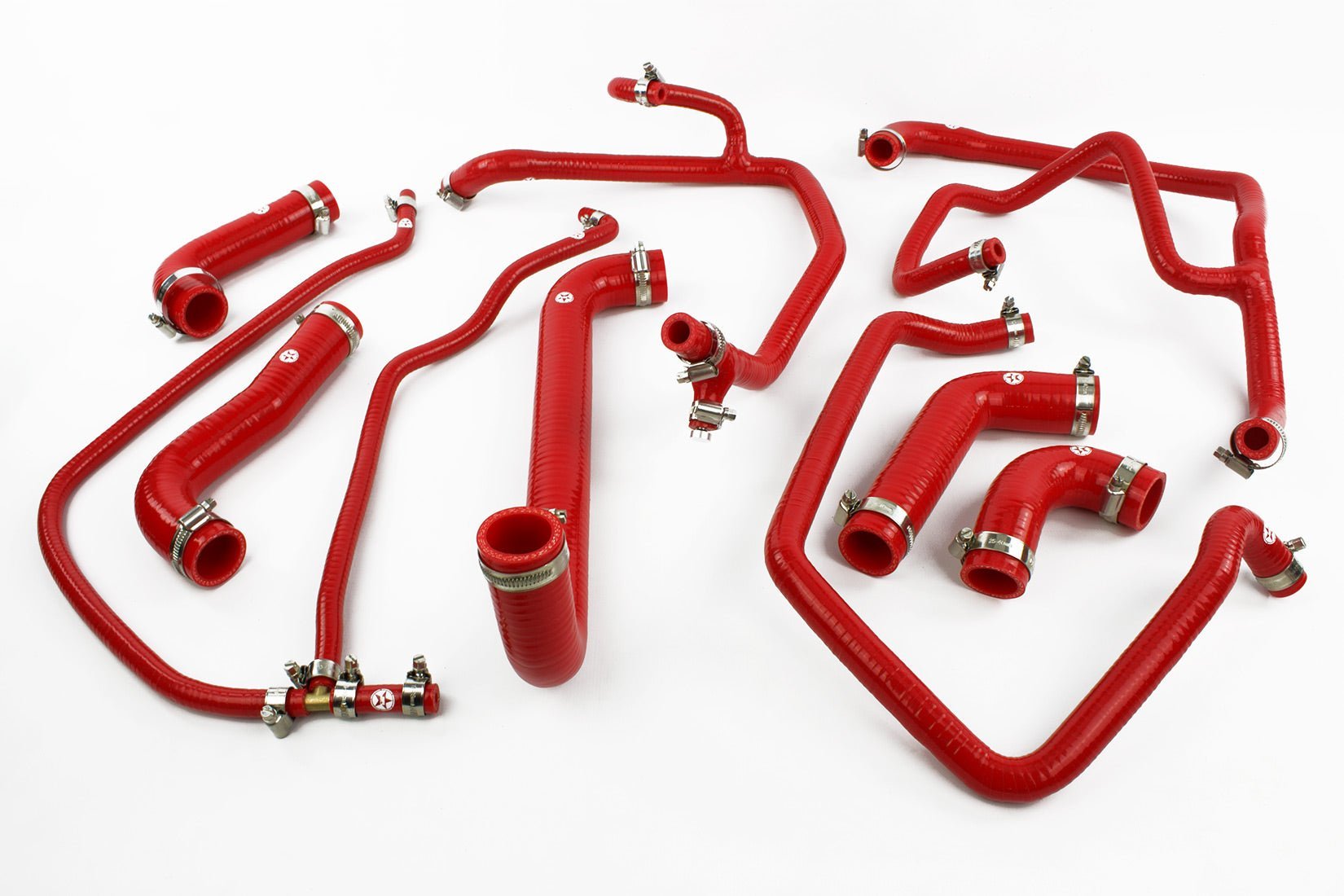

• 9 × Stoney Racing reinforced silicone hoses in your chosen colour
• 1 × aluminium bleed screw assembly (fitted in hose)
• Full clamp set in your chosen style (if selected)

Frequently Asked Questions

Can I use this kit to fit a PRT to my non-PRT Freelander?

Yes, on manual 1.8 models. You will also need the PRT thermostat (PEL500110R), T-piece (PFK000031), thermostat blanking plate (PEL000040) and thermostat seal (PEF10010). These are not included.

Why does one hose have a metal fitting in it?

The kit includes an aluminium bleed screw assembly fitted inside one hose. It must be clamped like any other hose end, or it can pop out under pressure. A clamp for it is included with every clamp set.

Why are some colours on pre-order?

Stoney Racing makes some colour and clamp combinations to order. These are marked as pre-order and dispatched in around 3–6 weeks.

Which clamps should I choose?

Spring clips give the most even clamping force for coolant hoses. Stainless worm-drive clamps will not rust and are easier to fit. T-bolt clamps are the strongest option.

Is my coolant compatible?

Most are, but some coolants (particularly some OAT types containing 2-EHA) can damage silicone. Read the Important Fitting Notes linked on this page, which list compatible coolants.

What warranty do I get?

Stoney Racing silicone hoses carry a 3-year warranty.
