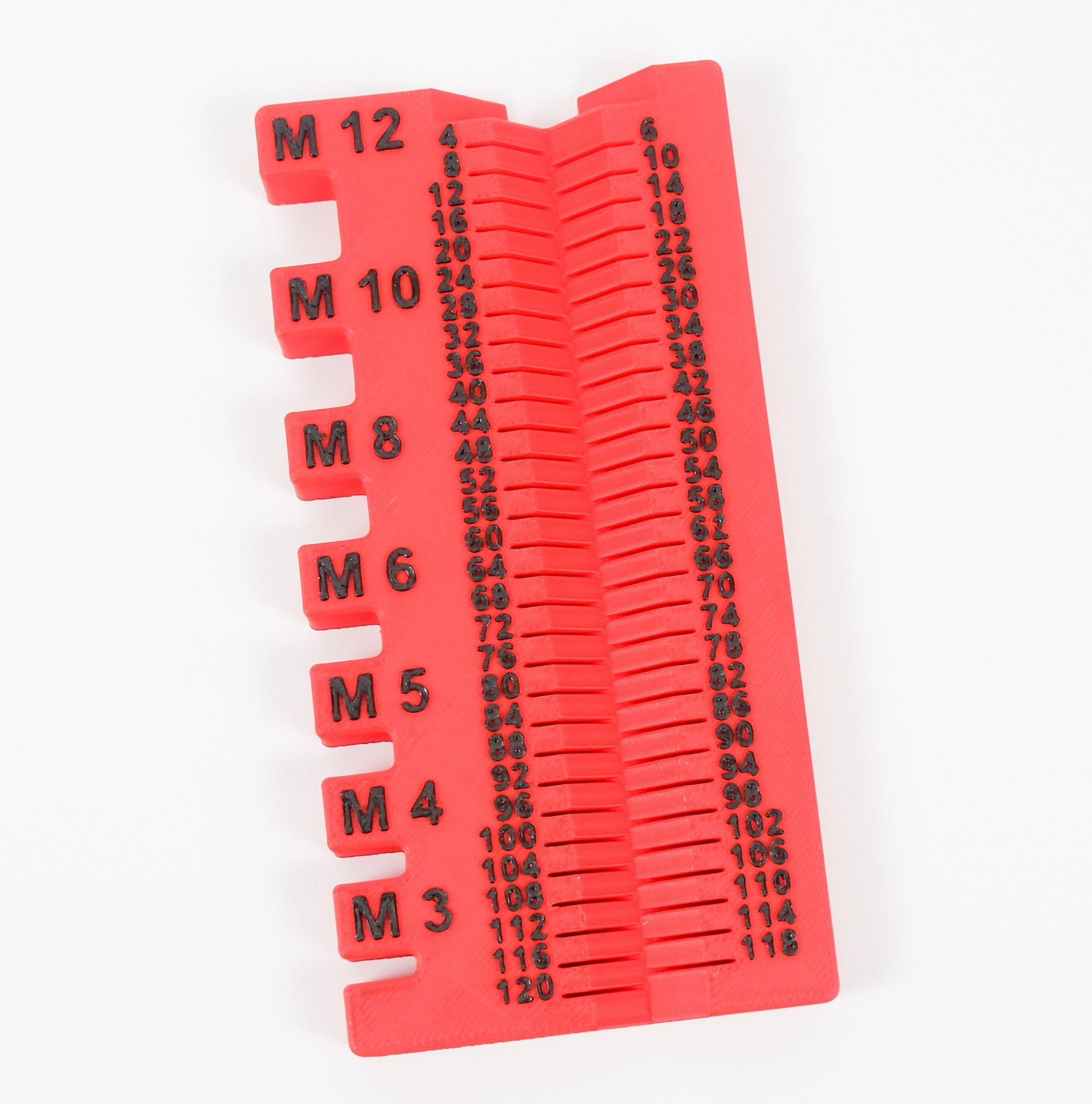

Metric Bolt & Screw Measurement Gauge

The Metric Bolt & Screw Measurement Gauge is an essential workshop reference tool designed for the rapid identification and sortation of metric fasteners. Engineered to streamline organization in automotive workshops and garages, it allows technicians to instantly determine both thread size and shank length without guesswork.

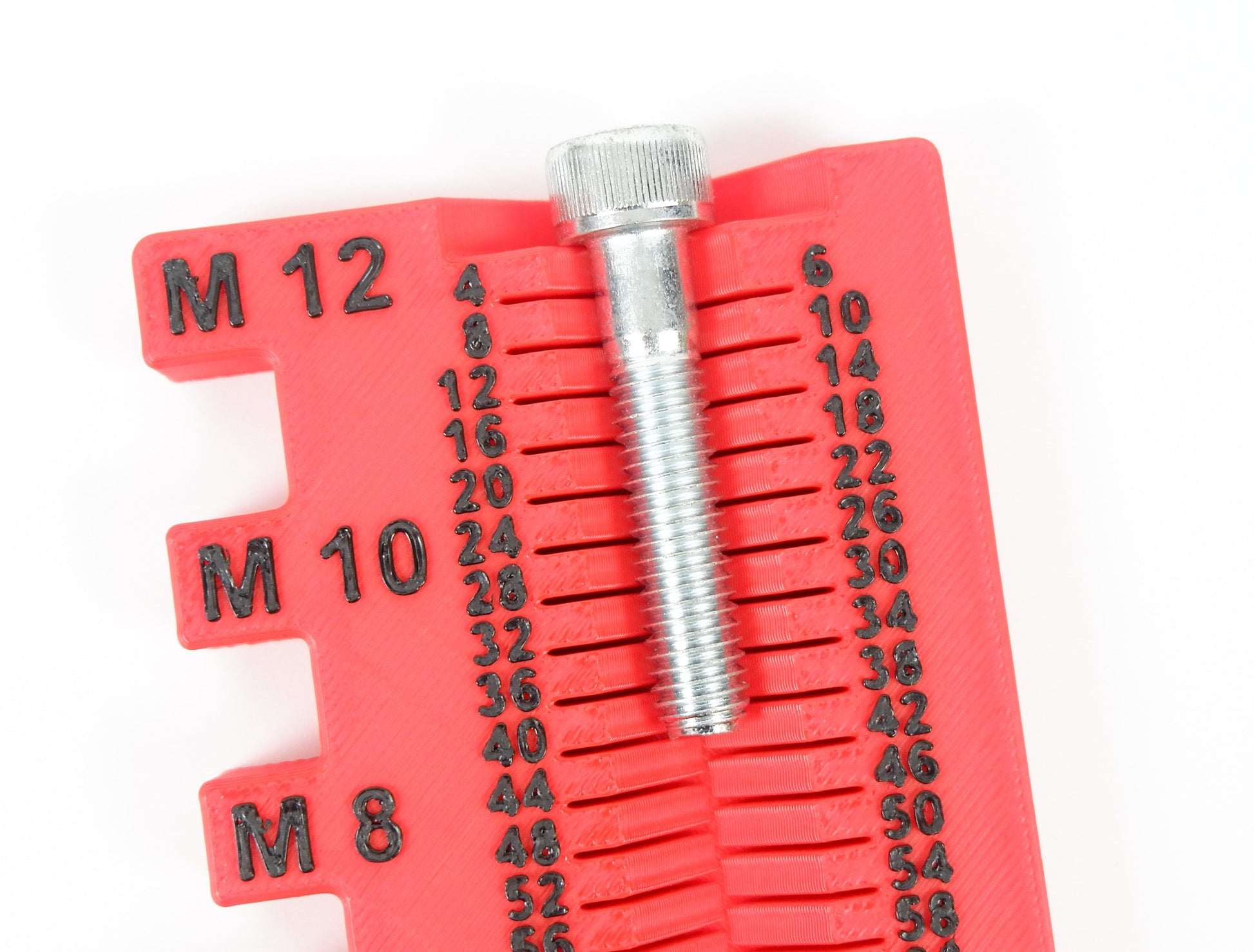

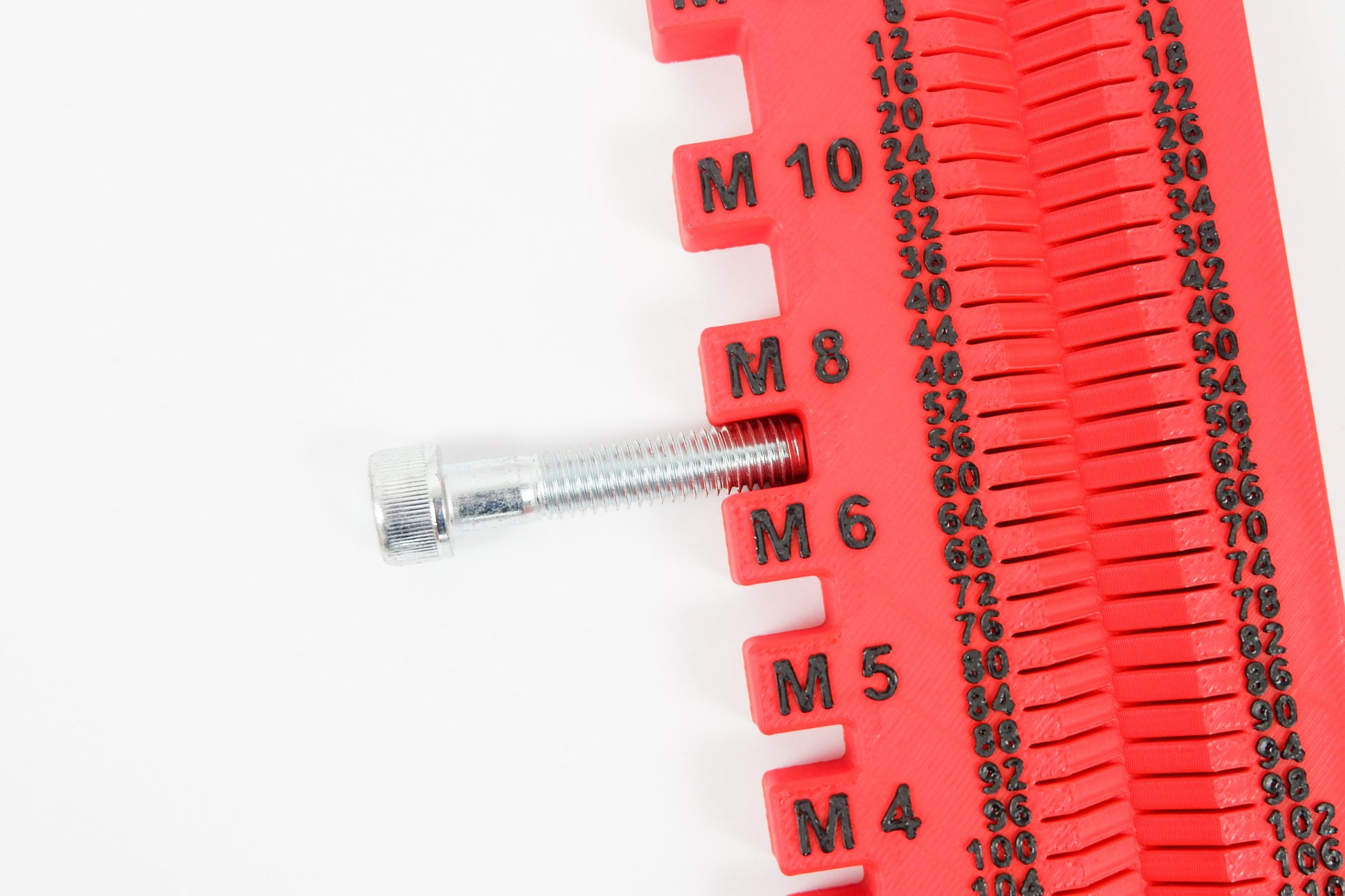

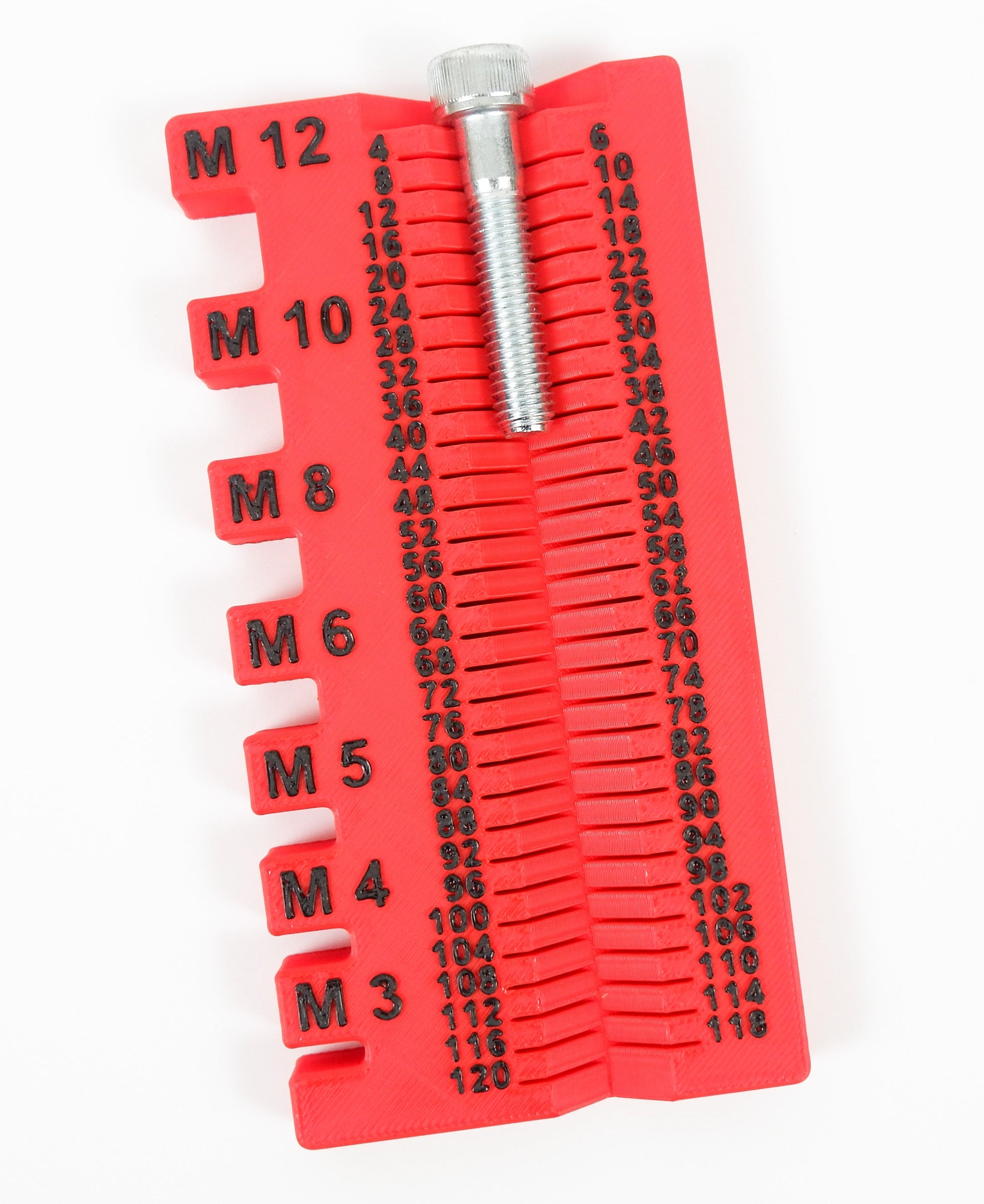

The durable gauge measures metric thread diameters ranging from M3 up to M12, alongside fastener lengths from 4mm to 120mm in precise 2mm increments.

Why Choose a Metric Bolt & Screw Gauge?

A dedicated fastener measurement tool is essential for:

• Quickly identifying loose, mixed, or unlabeled bolts from workshop sorting trays
• Matching correct replacement thread sizes (M3 to M12) before starting repairs
• Measuring exact fastener lengths from 4mm to 120mm in 2mm increments to prevent bottoming out
• Keeping service benches organized and eliminating trial-and-error fitting

Unlike rulers or thread pitch gauges alone, this dedicated measurement plate combines thread sizing holes and length scales into a single, straightforward reference board.

Key Benefits

• Measures metric thread diameters from M3 to M12

• Measures bolt and screw lengths from 4mm to 120mm in clear 2mm increments

• Streamlines workshop sorting and identification of mixed hardware

• Compact, durable design built for daily benchtop use

Technical Specifications

Box Includes:

Metric Bolt & Screw Measurement Gauge.

Who Is This For?

• Workshop Technicians: Essential for sorting mixed fastener tubs and finding exact replacement bolts quickly.
• Restoration Enthusiasts: Perfect for identifying old, corroded, or unmarked fasteners during vehicle tear-downs.
• Maintenance Engineers: Keeps service carts and hardware bins properly categorized.

Frequently Asked Questions

What thread sizes can it measure?

It measures metric thread diameters from M3 up to M12.

What lengths does it cover?

It measures fastener lengths from 4mm to 120mm broken down into clear 2mm increments.
