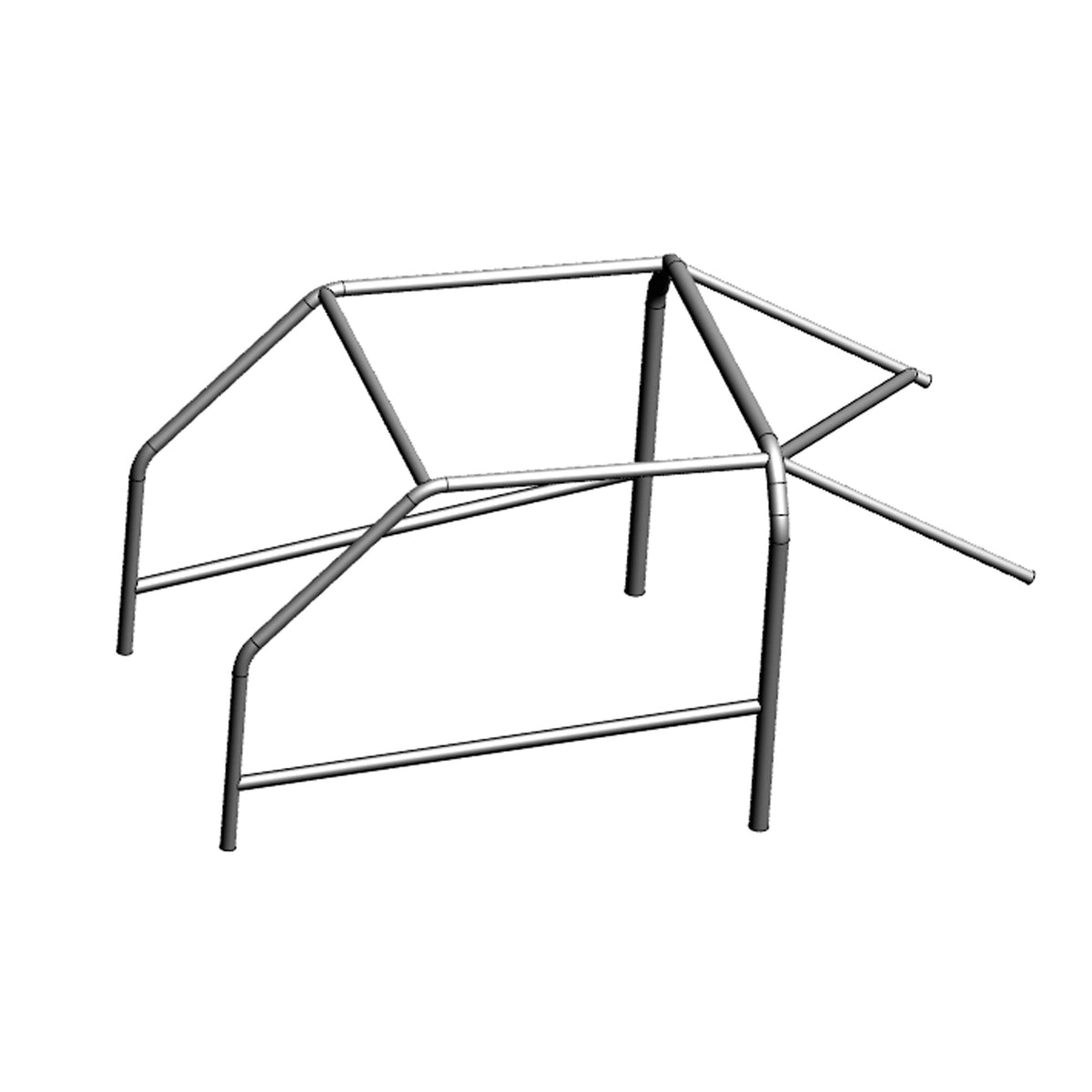

OMP AB0-105P-126 FIA Bolt-In Roll Cage – Peugeot 205 GTI

The OMP AB0-105P-126 is a 10-point bolt-in racing roll cage designed specifically for the Peugeot 205 GTI 3-door, 1983–1998.

Manufactured from FE45 cold-drawn steel tubing, the cage uses a combination of 50mm and 40mm diameter tubing and incorporates an A2SX configuration with single door reinforcements, sleeve connecting tubes and diagonal reinforcement on the rear legs.

The bolt-in design allows the cage to be assembled within the vehicle without requiring the entire structure to be welded into place. However, welding is still required during installation, including the door bars and certain mounting points depending on the vehicle and cage configuration.

As well as providing additional occupant protection in the event of an accident, a properly installed roll cage can increase the torsional rigidity of the bodyshell, which can be beneficial on competition vehicles.

This cage is FIA homologated – All J and is intended for competition use.

This roll cage is built to order. Please allow approximately 4–6 weeks for manufacture before dispatch. Lead times are approximate and may vary depending on production schedules.

Key Features

• OMP AB0-105P-126
• 10-point bolt-in racing roll cage
• Designed for Peugeot 205 GTI 3-door
• Suitable for 1983–1998 models
• FIA homologated – All J
• A2SX configuration
• FE45 cold-drawn steel construction
• 50mm × 2mm main hoop tubing
• 40mm × 2mm tubing for other cage sections
• Single door reinforcements
• Sleeve connecting tubes
• Diagonal reinforcement between the rear legs
• Single door bars supplied
• Door bars require cutting to length and welding during installation
• Designed for motorsport competition use
• 26kg stated weight

Specifications

Construction & Installation

The AB0-105P-126 is manufactured from FE45 cold-drawn steel tubing, providing the strength required for a competition roll cage while keeping the overall cage weight to approximately 26kg.

The main hoop uses 50mm diameter × 2mm wall tubing, while the remaining cage sections use 40mm diameter × 2mm wall tubing.

The A2SX configuration includes single door reinforcements, sleeve connecting tubes and diagonal reinforcement on the rear legs.

Although this is a bolt-in cage, installation is not simply a case of bolting the complete cage into the vehicle. Welding is required for certain parts of the installation. The supplied single door bars require cutting to the correct length and welding into position, while additional welding may be required for mounting plates and other cage attachment points.

The exact installation requirements can vary depending on the vehicle application, so the relevant OMP fitting instructions should be followed when installing the cage.

Important Installation Information

• This is a bolt-in competition roll cage, but welding is still required during installation.
• The supplied single door bars require cutting to length and welding into position.
• Welding may be required for chassis strengthening mounting plates and door-bar mounting points.
• Some cage applications may require additional welding to other sections of the cage.
• Dashboard modifications may be required on some vehicle applications to allow the cage to be correctly positioned.
• OMP bolt-in competition cages are not suitable for vehicles fitted with a factory sunroof unless specifically stated otherwise.
• Check the specific vehicle application and fitting instructions before installation.
• Always confirm that the cage is suitable for the regulations governing your intended motorsport application.

What’s in the Box?

• 1 × OMP AB0-105P-126 FIA homologated roll cage
• Fitting components as supplied by OMP
• Single door bars

Frequently Asked Questions

What vehicle does the OMP AB0-105P-126 fit?

The AB0-105P-126 is designed for the Peugeot 205 GTI 3-door, 1983–1998.

Is this roll cage FIA homologated?

Yes. The AB0-105P-126 is FIA homologated – All J.

Is this a bolt-in roll cage?

Yes. The cage is designed as a bolt-in installation, but welding is still required for certain parts of the installation.

Does the cage require welding?

Yes. Although the main cage is designed to bolt into the vehicle, the supplied door bars require cutting to length and welding into position. Additional welding may also be required for mounting plates and other installation points.

What material is the cage made from?

The cage is manufactured from FE45 cold-drawn steel tubing.

What size tubing does the cage use?

The main hoop uses 50mm × 2mm tubing, while the other cage sections use 40mm × 2mm tubing.

How many points does the cage have?

The AB0-105P-126 is a 10-point roll cage.

What does the A2SX configuration include?

The A2SX configuration includes single door reinforcements, sleeve connecting tubes and diagonal reinforcement on the rear legs.

How much does the roll cage weigh?

The stated cage weight is 26kg.

Is the cage suitable for a Peugeot 205 with a sunroof?

OMP bolt-in competition roll cages are generally not suitable for vehicles with a factory-fitted sunroof unless specifically stated otherwise. Check the application information before ordering.

Does the cage require dashboard modifications?

Some applications may require modifications to the dashboard to allow the cage to be correctly installed. The vehicle-specific fitting information should be checked before installation.

How long does this cage take to arrive?

The AB0-105P-126 is built to order. Please allow approximately 4–6 weeks for manufacture before dispatch. The lead time is approximate and can vary depending on production schedules.
