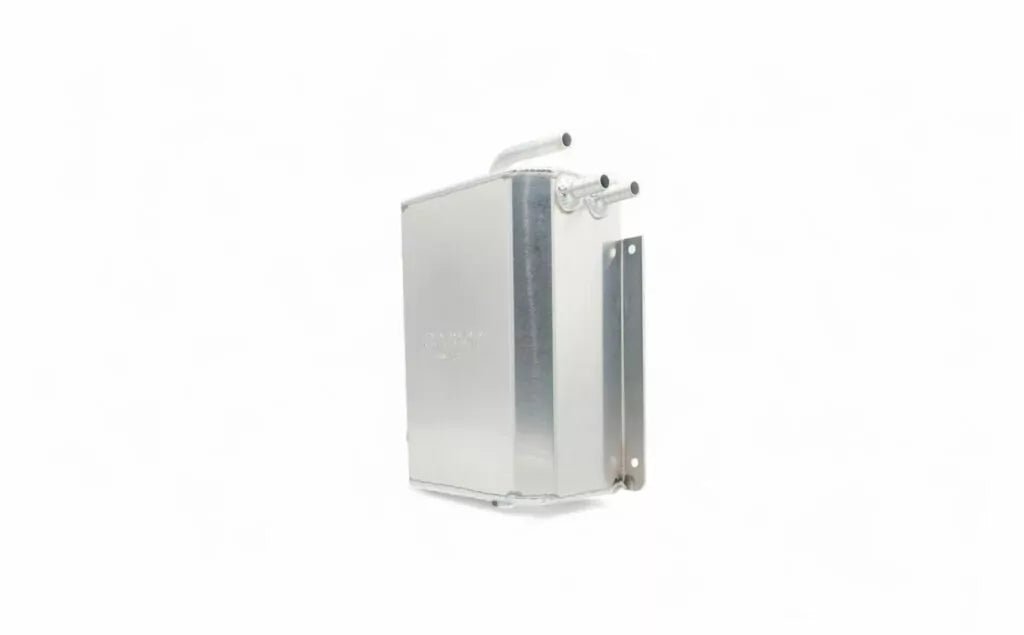

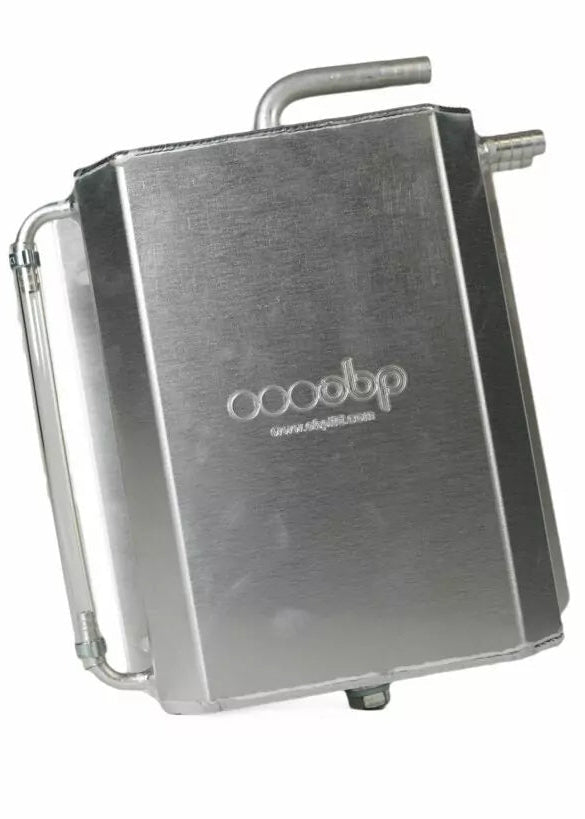

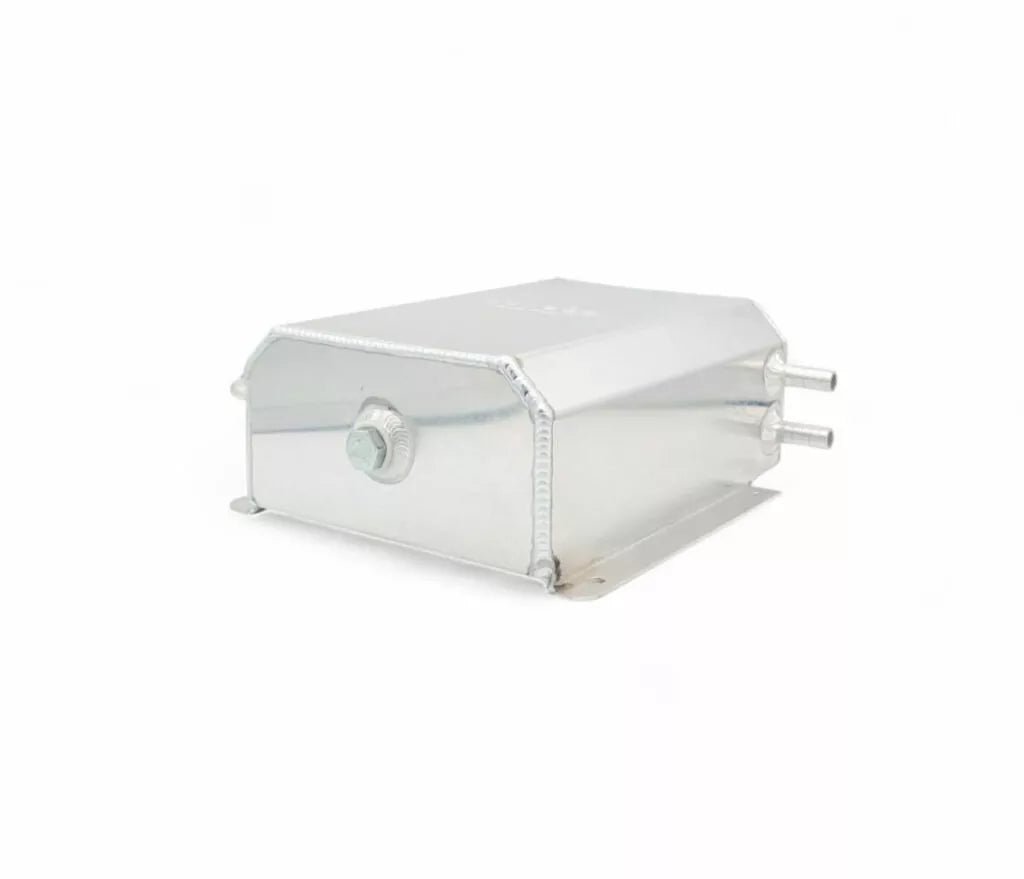

Race Spec Oil Catch Tank (Push On Fittings)

The OBP Race Specification Oil Catch Tank with Push on Fittings is a professional-grade solution developed to meet current MSA regulations for competition vehicles. Designed to withstand the harshest racing conditions, this catch tank is ideal for managing oil vapour and blow-by gases in high-performance and motorsport applications.

Each tank is handcrafted in OBP Motorsport’s UK-based factory using high-grade aluminium. Built with precision TIG welding and robust internal baffling, it ensures reliable oil separation and prevents unwanted contaminants from entering the intake system.

Key Features:

• ✅ MSA Compliant – Built to meet current motorsport regulations
• ✅ Push-On Hose Connections – Fast and simple installation with standard breather hose sizes
• ✅ Internal Baffling – Reduces oil vapour entering the intake system
• ✅ Sight Tube – Allows quick and easy oil level checks
• ✅ M10x1.25 Drain Bung – Simplifies emptying between sessions
• ✅ UK Manufactured – Precision-built in our UK facility with rigorous quality control
• ✅ Bulkhead Mounting – Clean, race-ready installation

Available Sizes & Specifications:

1.5 Litre Oil Catch Tank

• Fitment: Bulkhead
• Dimensions: H: 180mm | L: 125mm | W: 80mm
• Fittings: 10mm Push-On (Inlet, Outlet, Breather)
• Includes: Sight Tube, M10x1.25 Drain Bung

2 Litre Oil Catch Tank

• Fitment: Bulkhead
• Dimensions: H: 205mm | L: 145mm | W: 80mm
• Fittings: 10mm Push-On (Inlet, Outlet, Breather)
• Includes: Sight Tube, M10x1.25 Drain Bung

3 Litre Oil Catch Tank

• Fitment: Bulkhead
• Dimensions: H: 230mm | L: 170mm | W: 90mm
• Fittings: 10mm Push-On (Inlet, Outlet, Breather)
• Includes: Sight Tube, M10x1.25 Drain Bung
