Heat Shield
Think Aluminium Barrier Heat Shield
Think Aluminium Barrier Heat Shield
Couldn't load pickup availability

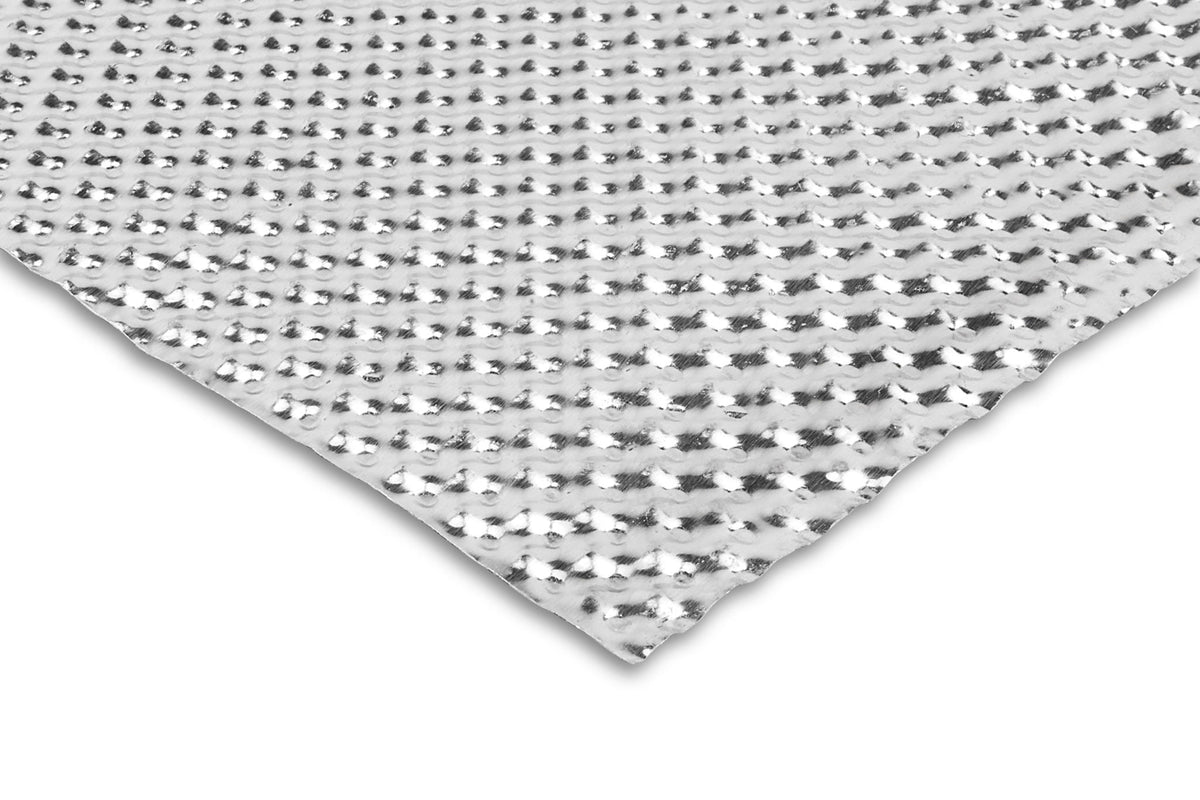

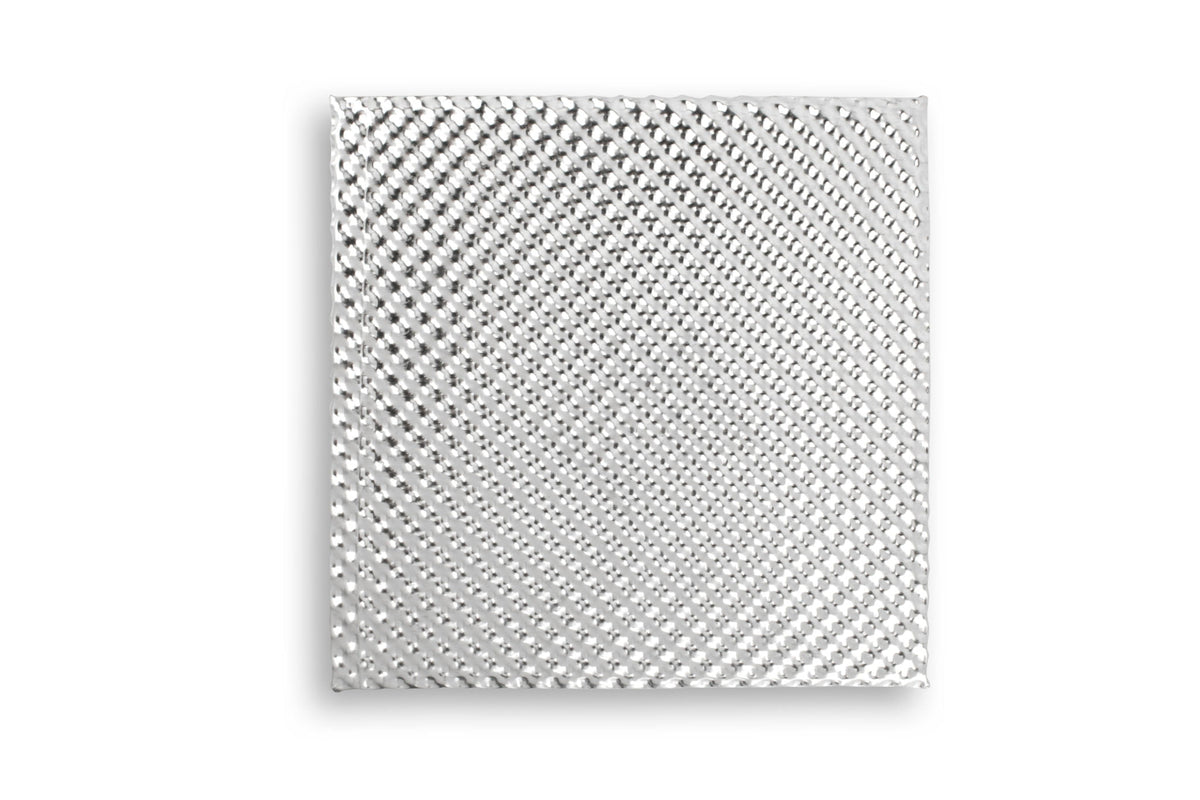

0.5mm Aluminium Barrier Heat Shield
Our 0.5mm Thick Aluminium Barrier Heat Shield is a robust, versatile heat-reflective sheet commonly used in OEM applications and suitable for a wide range of motorsport and automotive heat-management requirements.

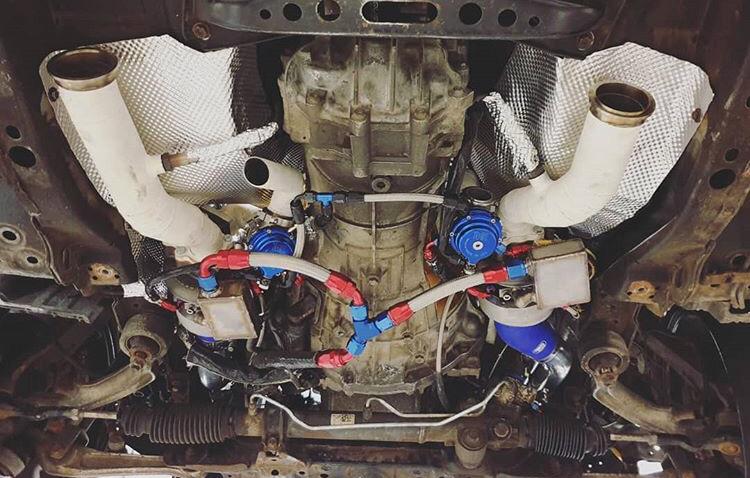

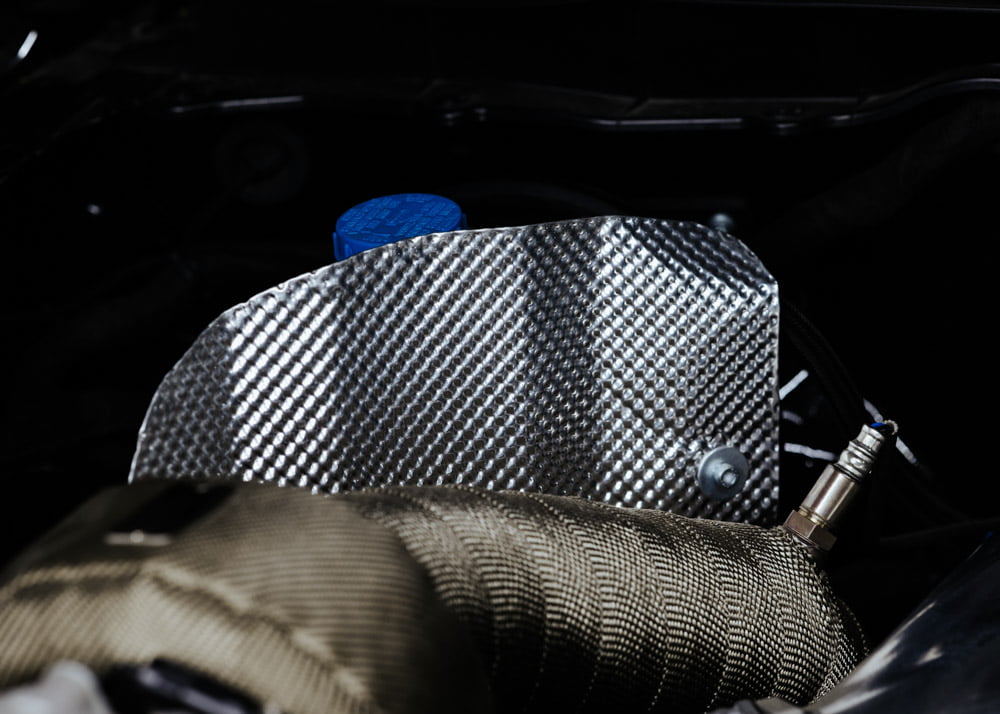

The aluminium barrier can be cut to size and shaped to suit the application, allowing you to create a heat shield around exhaust components, turbochargers, manifolds and other high-temperature areas where nearby components require protection from radiant heat.
Available in a range of sheet sizes, the 0.5mm thickness provides a more substantial barrier than thinner aluminium heat-shield materials while remaining practical to cut and form during installation.
Key Features
- 0.5mm thick aluminium heat shield sheet
- Commonly used in OEM applications
- Suitable for motorsport and automotive heat management
- Can be cut to the required size
- Can be shaped to suit individual applications
- Helps reflect radiant heat away from nearby components
- Available in a variety of sheet sizes
- Suitable for creating bespoke heat shields around exhaust and engine components
Specifications
| Specification | Details |
|---|---|
| Product Type | Aluminium Barrier Heat Shield |
| Material | Aluminium |
| Thickness | 0.5mm |
| Finish | Aluminium |
| Format | Sheet |
| Customisation | Can be cut and shaped |
| Application | Heat management and thermal protection |
| Typical Use | Exhaust, turbo, manifold and engine-bay applications |
What's in the Box
- 1 × 0.5mm Aluminium Barrier Heat Shield sheet in the selected size
Frequently Asked Questions
What is a 0.5mm Aluminium Barrier Heat Shield used for?
It is used to create a physical heat barrier between high-temperature components and surrounding parts that require protection from radiant heat.
Can the aluminium heat shield be cut to size?
Yes. The sheet can be cut to suit the specific application, allowing a bespoke heat shield to be made for individual vehicles and components.
Can the heat shield be shaped?
Yes. The 0.5mm aluminium sheet can be formed and shaped to suit the required installation.
Where can I use an aluminium barrier heat shield?
Typical applications include around exhaust systems, turbochargers, exhaust manifolds and other high-temperature engine-bay components where radiant heat needs to be managed.
Is this aluminium heat shield suitable for motorsport?
Yes. Its ability to be cut and shaped makes it suitable for a wide range of motorsport, competition and performance vehicle applications.
Why use a thicker 0.5mm aluminium sheet?
The 0.5mm thickness provides a more substantial aluminium barrier while still allowing the material to be cut and formed for individual applications.
Is the aluminium barrier heat shield insulation?
It is primarily a reflective heat barrier, rather than a bulk insulating material. Installation should be designed to provide suitable clearance and, where required, an air gap between the heat source and the protected component.
