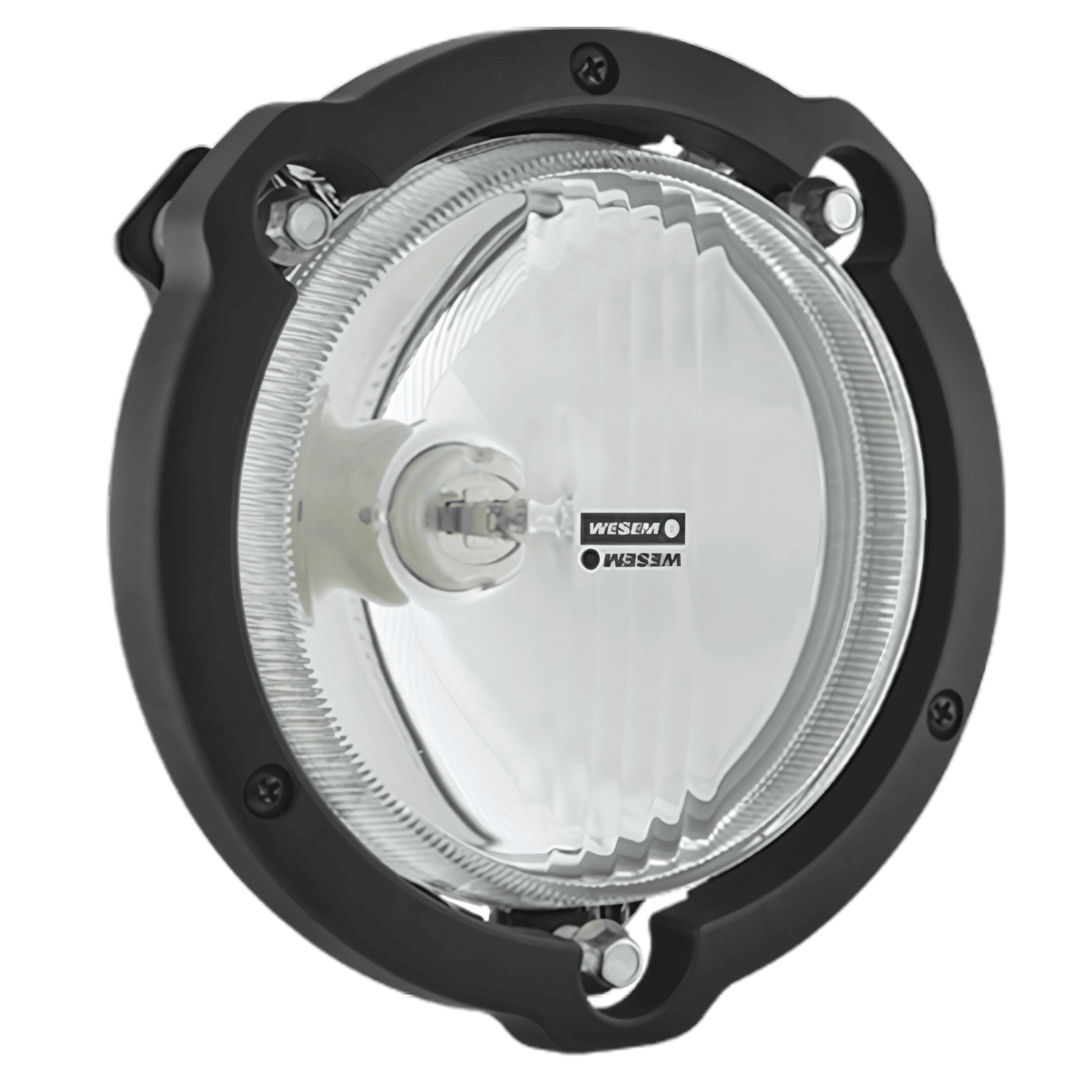

WESEM 122mm Rally Drive Lamp – Pod Mounting

The WESEM lamp units for pod mounting offer an exceptional lighting solution for serious rally competitors who demand quality, reliability and proven performance. Trusted by crews competing in some of Europe's most competitive rallies, WESEM lighting is renowned for its engineering excellence and dependable performance.

WESEM – Serious Enlightenment.

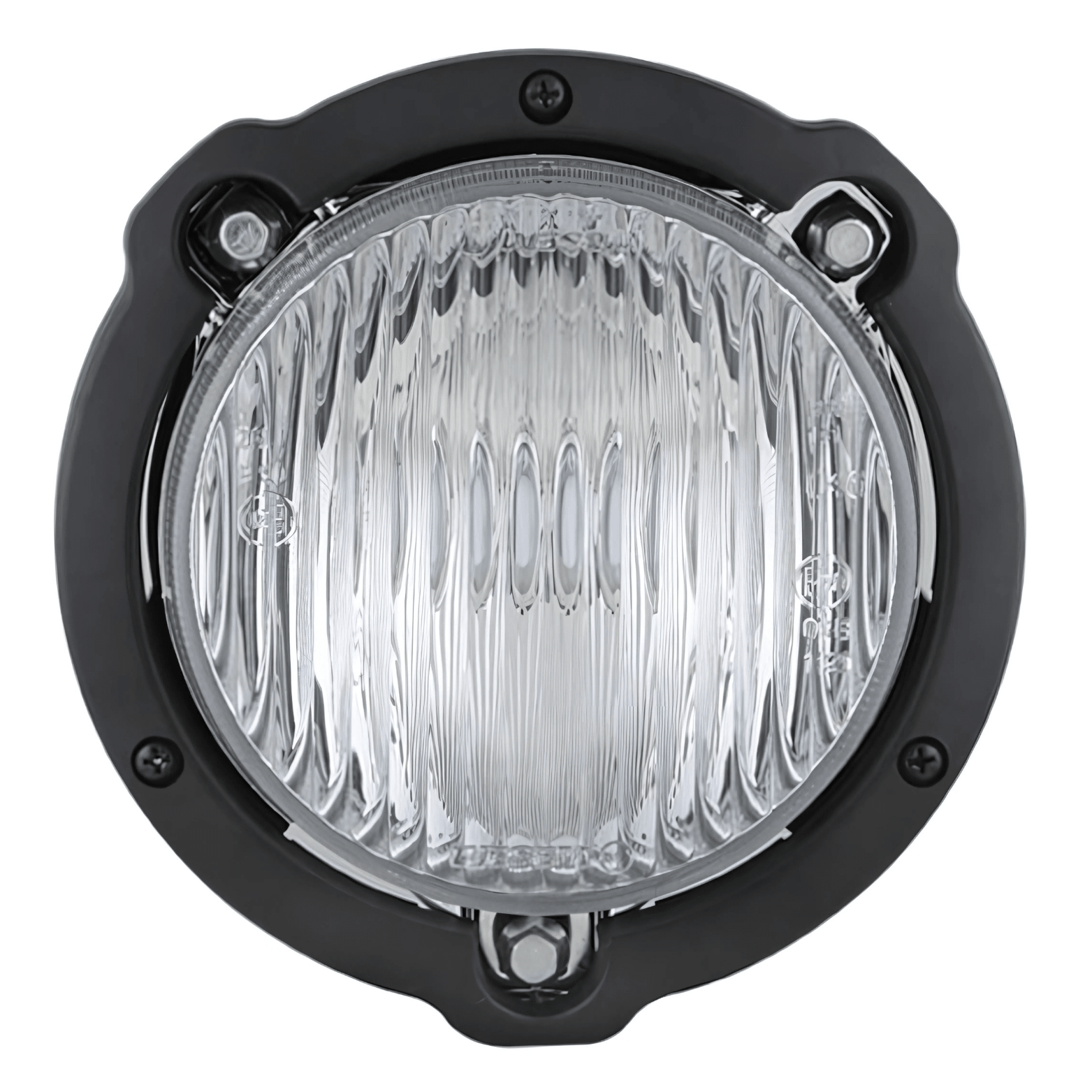

Drive or Fog Beam Patterns

Available with either Drive or Fog lens patterns, these compact WESEM lamp units feature a 90-degree adjustment stud configuration.

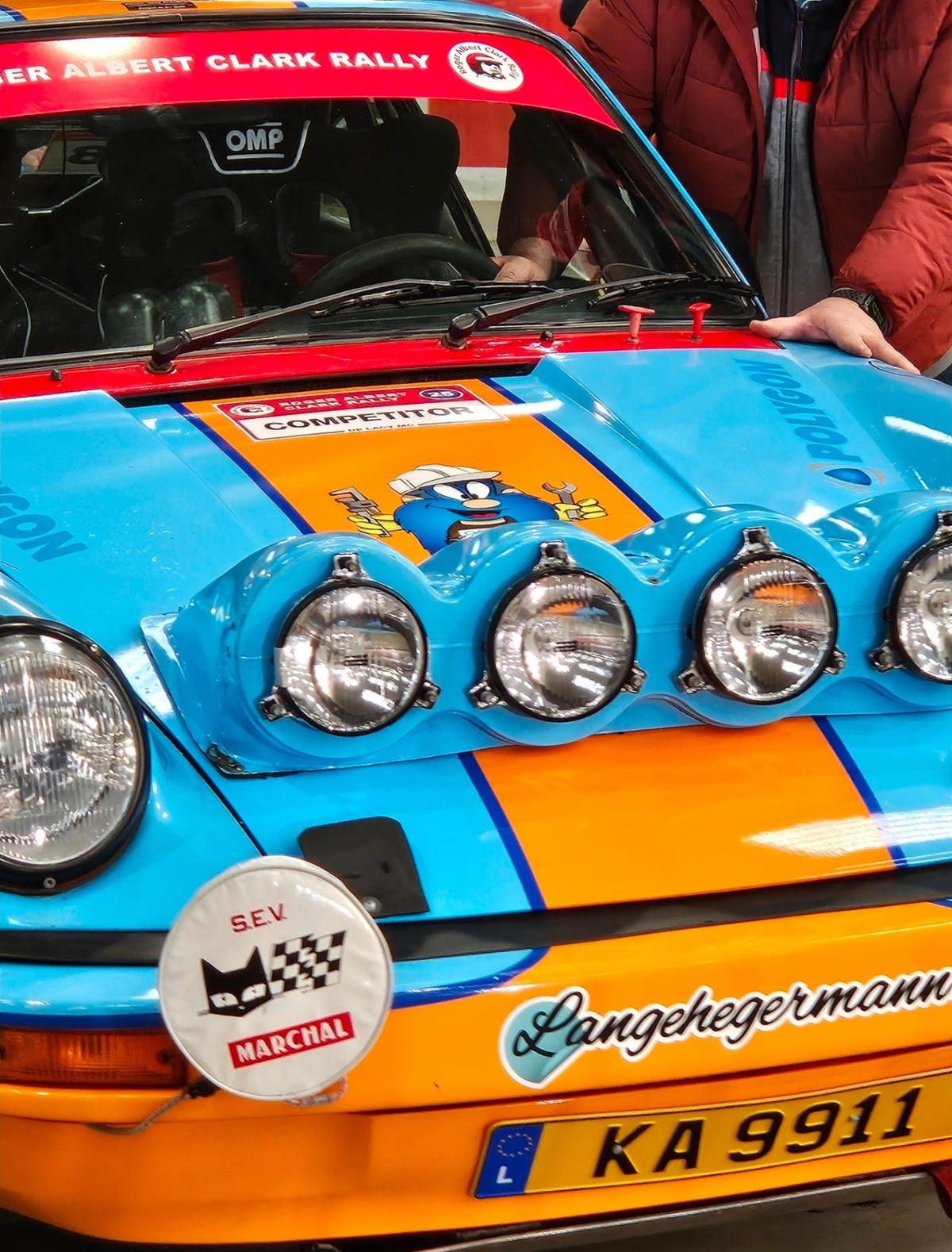

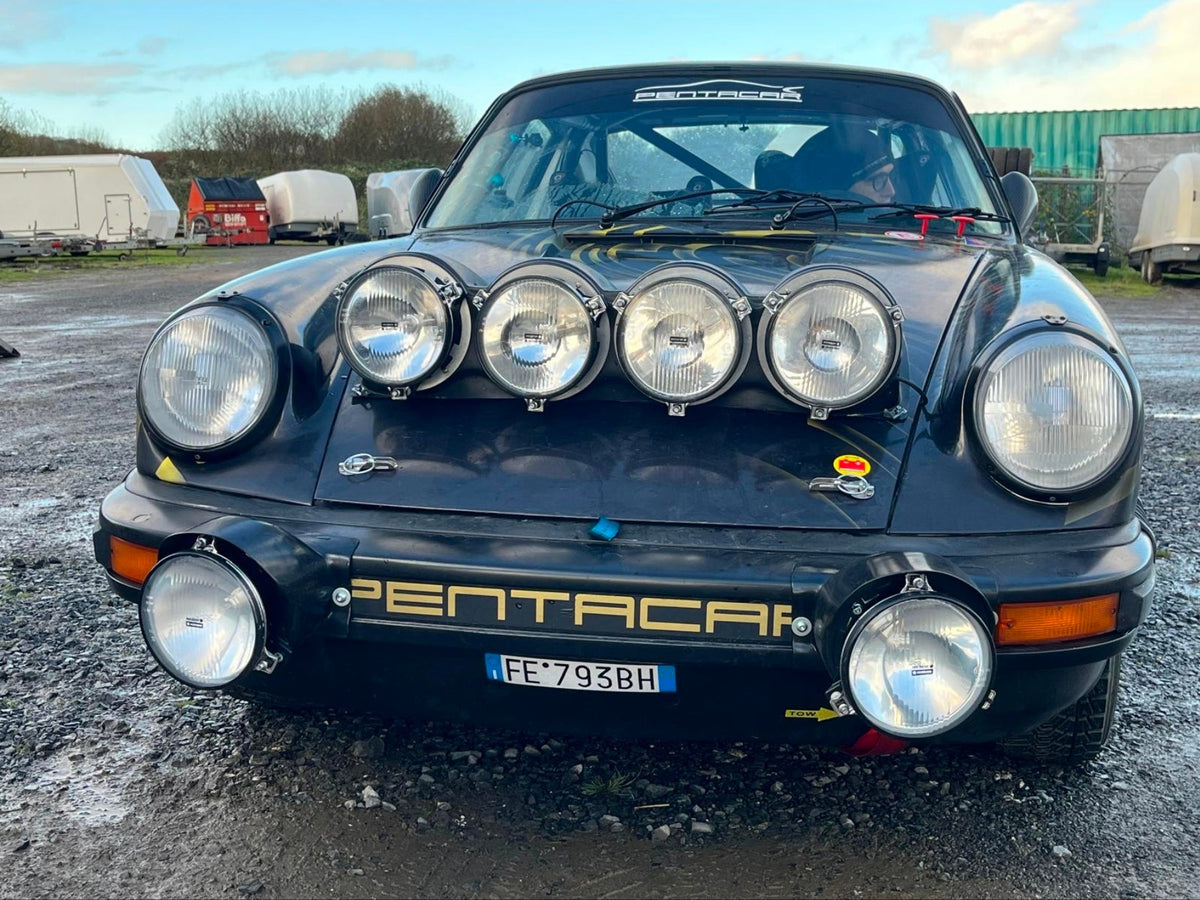

Designed for pod mounting, their compact dimensions and flexible mounting arrangement make them an excellent choice for rally cars where available space is limited.

Precision Adjustment & Secure Mounting

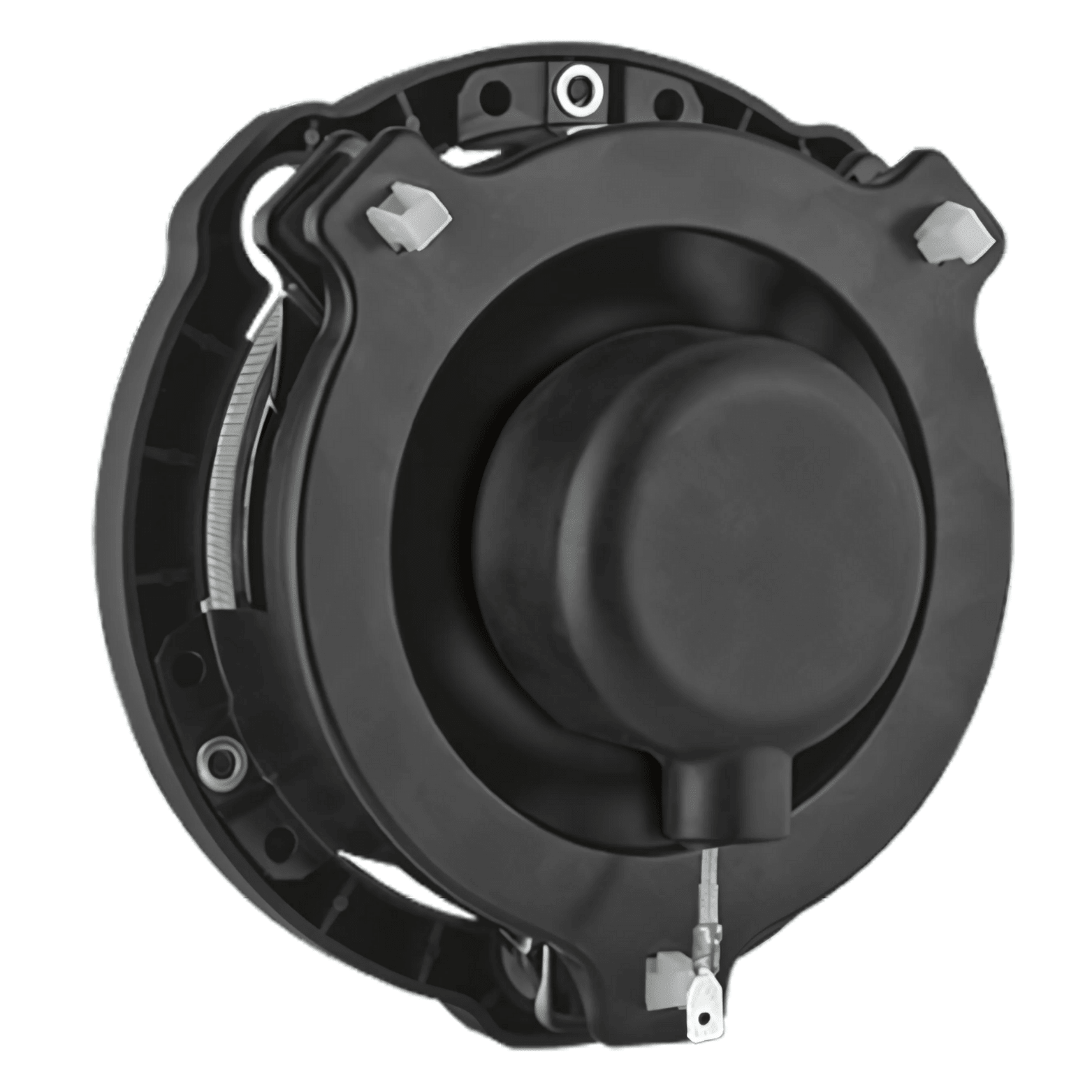

Each lamp unit is supplied with all necessary adjustment hardware and a compact mounting plate measuring just 122mm in diameter. Multiple pre-drilled fixing positions make installation into a bare lamp pod straightforward.

The three ball-and-socket adjustment studs provide up to 10 degrees of articulation without binding, allowing precise positioning of the lighting beam.

For dependable performance in demanding motorsport environments, each unit also features high-quality bulb gaskets, proven AMP SuperSeal connectors and protective SuperSeal caps.

Lighting Performance

Designed to operate with H3 70W bulbs, the WESEM Drive lens delivers impressive forward illumination, making it a popular choice for rally applications where effective long-range lighting is essential.

These lamp units are rated for use with 70W H3 bulbs.

If you require a 55W H3 bulb, see our WESEM H3 12V bulbs.

What's Included?

Each WESEM Rally Drive Lamp kit includes:

• 1 × WESEM lamp housing with selected Drive or Fog lens pattern.
• 1 × 122mm compact mounting plate with pre-drilled fixing positions.
• 3 × Ball-and-socket adjustment studs.
• Complete adjustment hardware.
• High-quality bulb gasket.
• AMP SuperSeal electrical connector.
• SuperSeal 5P protective cap.

Please note: H3 70W bulbs should be selected separately unless specifically included in the chosen product configuration.

Frequently Asked Questions

What is the diameter of the WESEM lamp unit?

The lamp housing measures 122mm in diameter, matching the supplied mounting plate.

Are Drive and Fog beam patterns available?

Yes. The units are available with either a Drive or Fog lens pattern, allowing you to select the lighting characteristics best suited to your requirements.

What bulb does this lamp use?

The lamp is designed for an H3 70W bulb. A suitable 55W H3 bulb is also available, but check compatibility with the intended application.

Can I use a 55W H3 bulb instead of a 70W bulb?

Yes, a 55W H3 bulb is available separately. You can find it here: WESEM H3 12V Bulbs.

Are the bulbs included?

The supplied kit specification lists the lamp housing and mounting hardware. Check the selected product option for bulb inclusion.

How much adjustment is available?

The three ball-and-socket adjustment studs provide up to 10 degrees of articulation without binding, allowing accurate positioning of the lighting beam.

Is the mounting plate included?

Yes. Each unit is supplied with a compact 122mm mounting plate featuring multiple pre-drilled fixing positions.

Are the electrical connections weather-resistant?

The lamp units feature AMP SuperSeal connectors and protective SuperSeal 5P caps to help maintain secure, weather-resistant electrical connections.

Are these lamps suitable for rally competition?

Yes. WESEM lighting is trusted by rally competitors and designed for demanding motorsport applications.

Key Features

• Premium WESEM motorsport lighting.
• Compact 122mm lamp housing.
• Choice of Drive or Fog lens pattern.
• Designed for H3 70W bulbs.
• 90-degree adjustment stud positioning.
• Three ball-and-socket adjustment studs.
• Up to 10 degrees of articulation.
• Compact mounting plate with pre-drilled fixing positions.
• High-quality bulb gasket.
• AMP SuperSeal electrical connector.
• SuperSeal 5P protective cap.
• Designed for rally lamp pod installation.

For drivers who value WESEM's reputation for excellence, this Rally Drive Lamp is an excellent choice for dependable motorsport lighting.

*Note - Not supplied with bulbs
