WESEM 180mm Rally Lamp Units – Pod Mounting

Designed for serious rally competitors, WESEM 180mm pod-mounted lamp units combine exceptional build quality, precise adjustability and outstanding lighting performance. Trusted by crews competing in some of Europe's toughest rallies, WESEM has established a reputation for dependable, high-performance motorsport lighting.

WESEM – Serious Enlightenment.

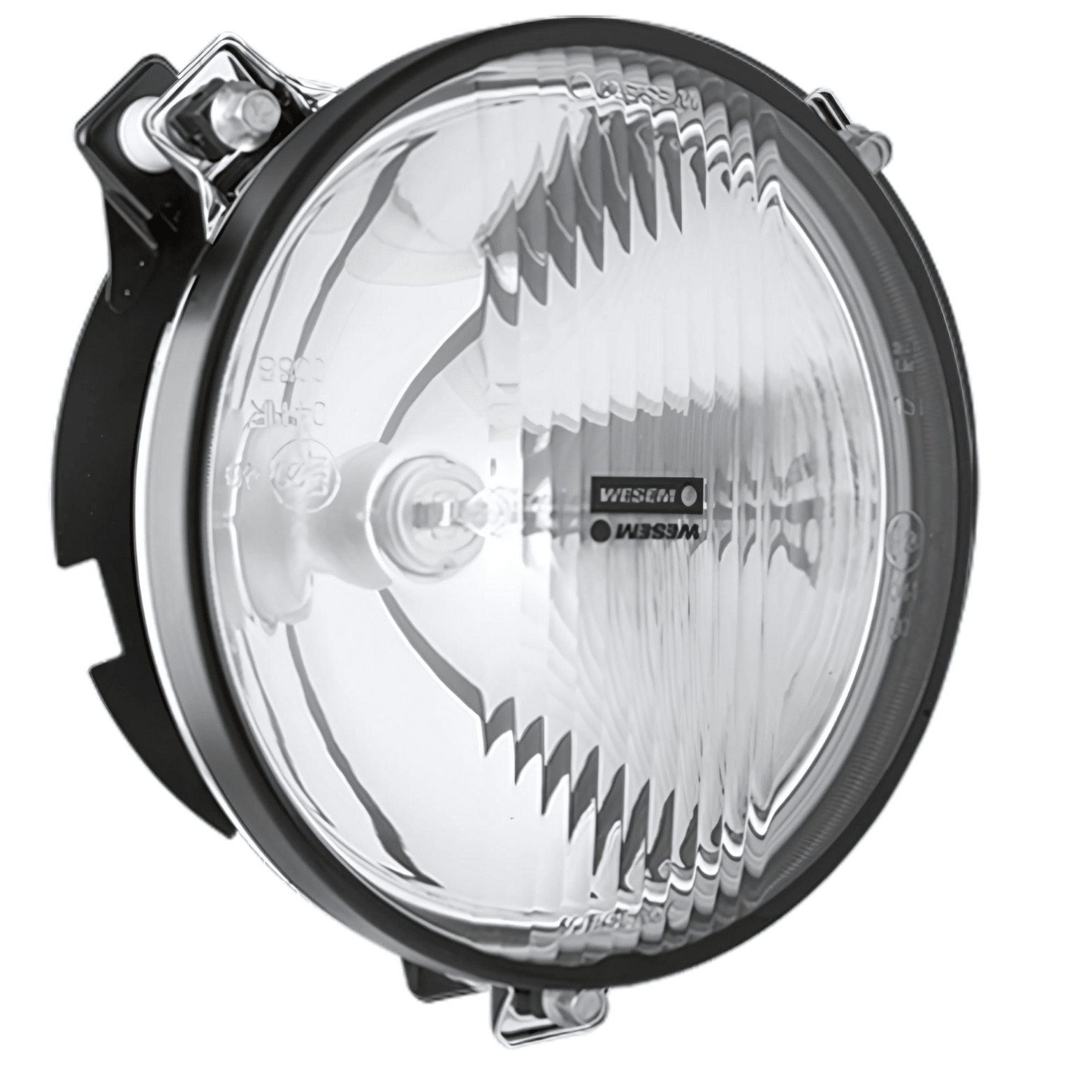

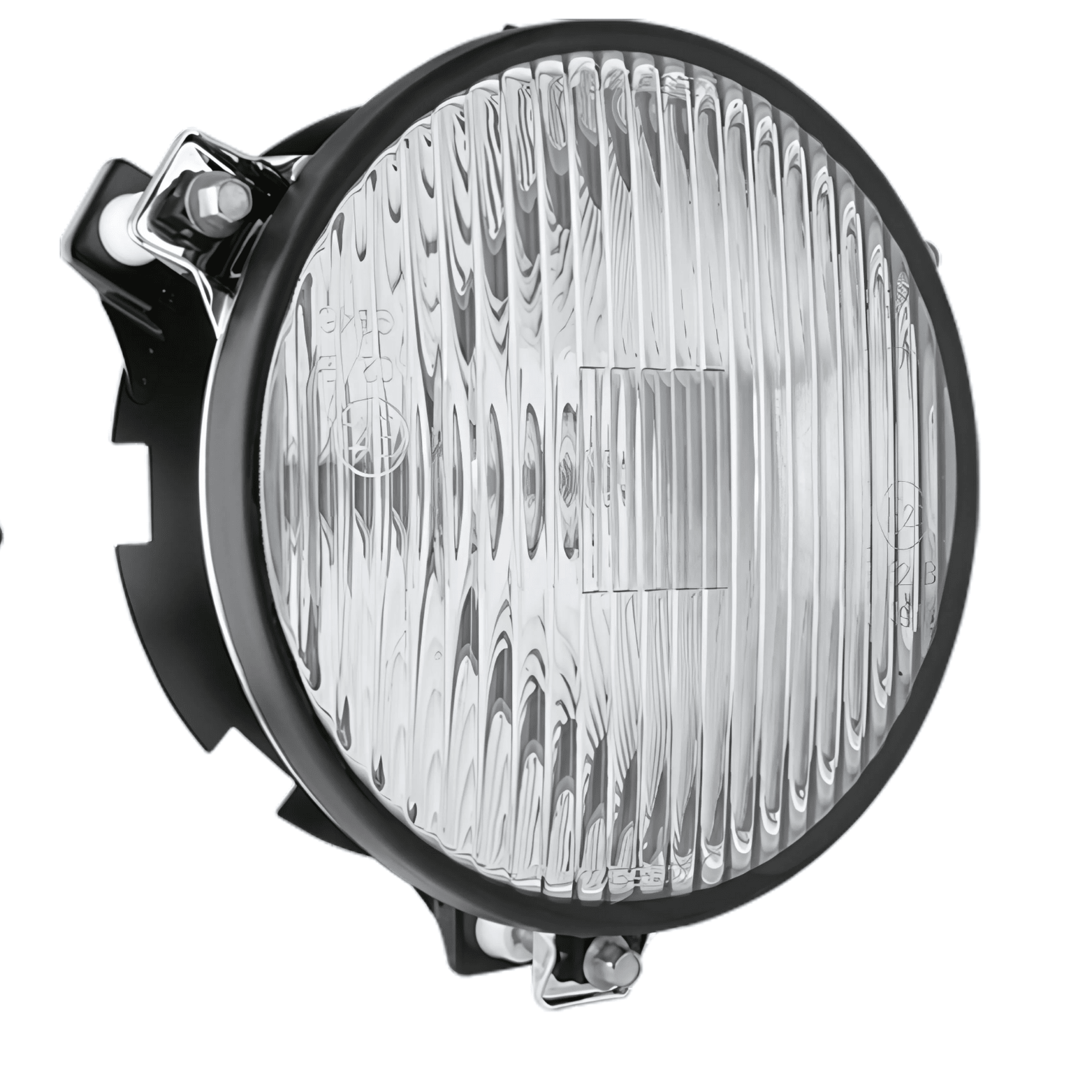

Drive or Fog Beam Patterns

Available with either Drive or Fog lens patterns, these 180mm lamp units offer two different adjustment stud configurations:

• 120-degree stud positioning
• 90-degree stud positioning

Combining the two configurations allows the lamps to be mounted closer together, providing greater flexibility when designing or fitting lamp pods. This can make it possible to accommodate these large-diameter, high-performance units in smaller pods where conventional mounting arrangements may not allow sufficient clearance.

Precision Adjustment & Secure Mounting

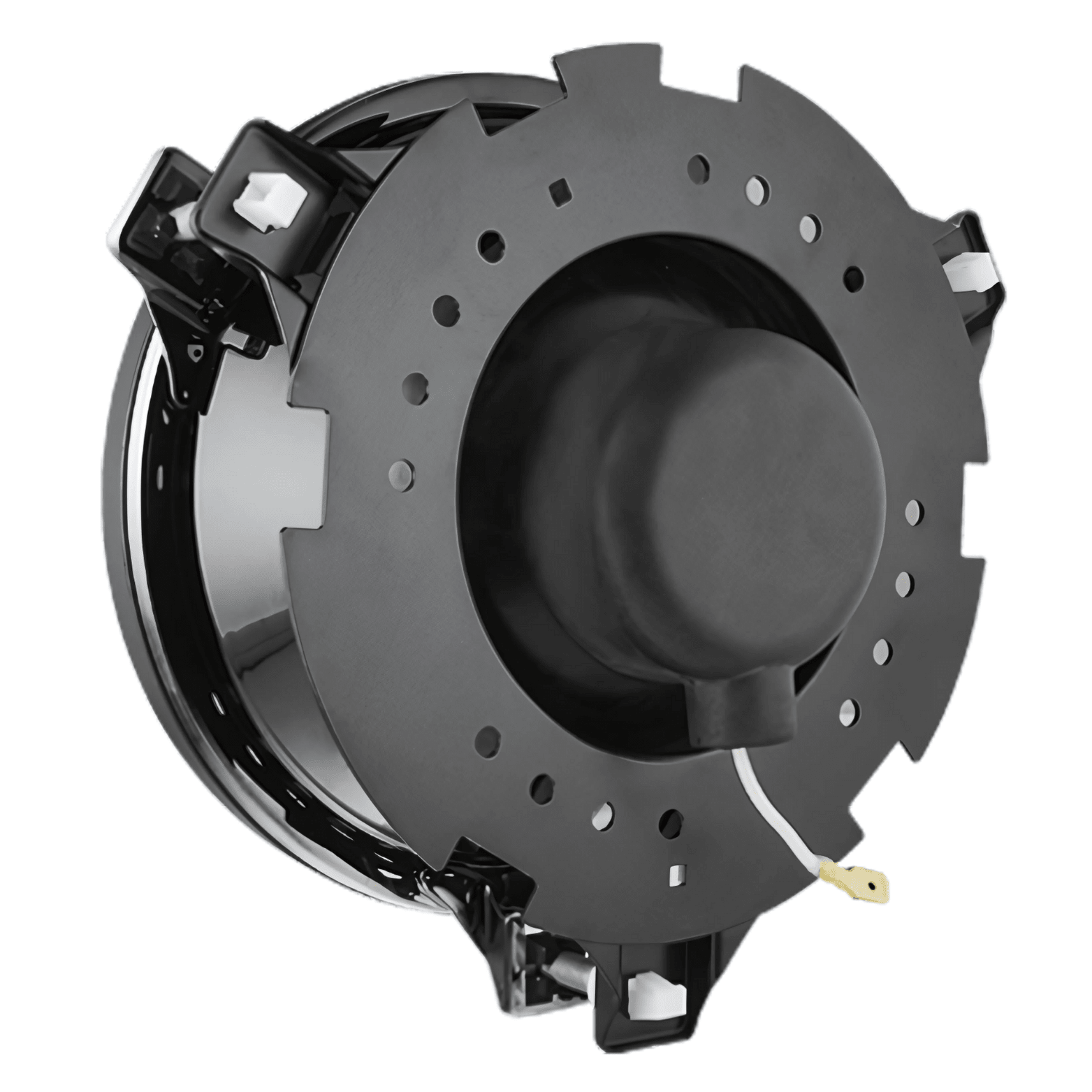

Each lamp unit is supplied with all necessary adjustment hardware and a compact mounting plate measuring just 172mm in diameter. Multiple pre-drilled fixing positions make installation into a bare lamp pod straightforward.

The three ball-and-socket adjustment studs provide up to 10 degrees of articulation without binding, allowing precise positioning of the lighting beam.

Reliability is equally important in competition environments. Each unit features high-quality bulb gaskets, proven AMP SuperSeal connectors and protective SuperSeal caps to help maintain secure electrical connections.

Impressive Lighting Performance

WESEM's 180mm lamp units deliver impressive illumination, with different beam patterns available to suit varying rally conditions.

Drive Beam

• H3 100W halogen configuration: usable range approaching 450 metres.
• Xenon configuration: range exceeding 700 metres, with a beam width of approximately 40 metres.

Fog Beam

• Produces a shorter, wider spread of light for improved close-range illumination.
• Xenon configuration: beam spread approaching 60 metres, with a range of up to 200 metres.

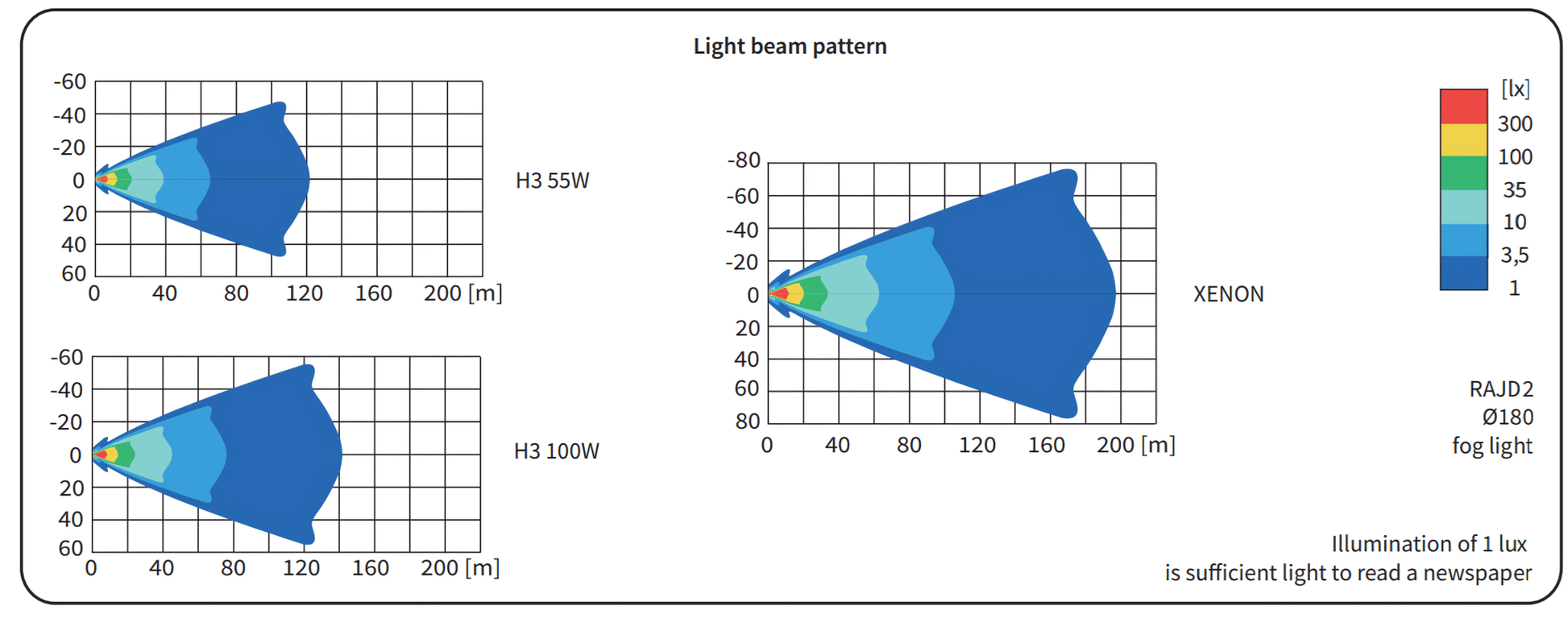

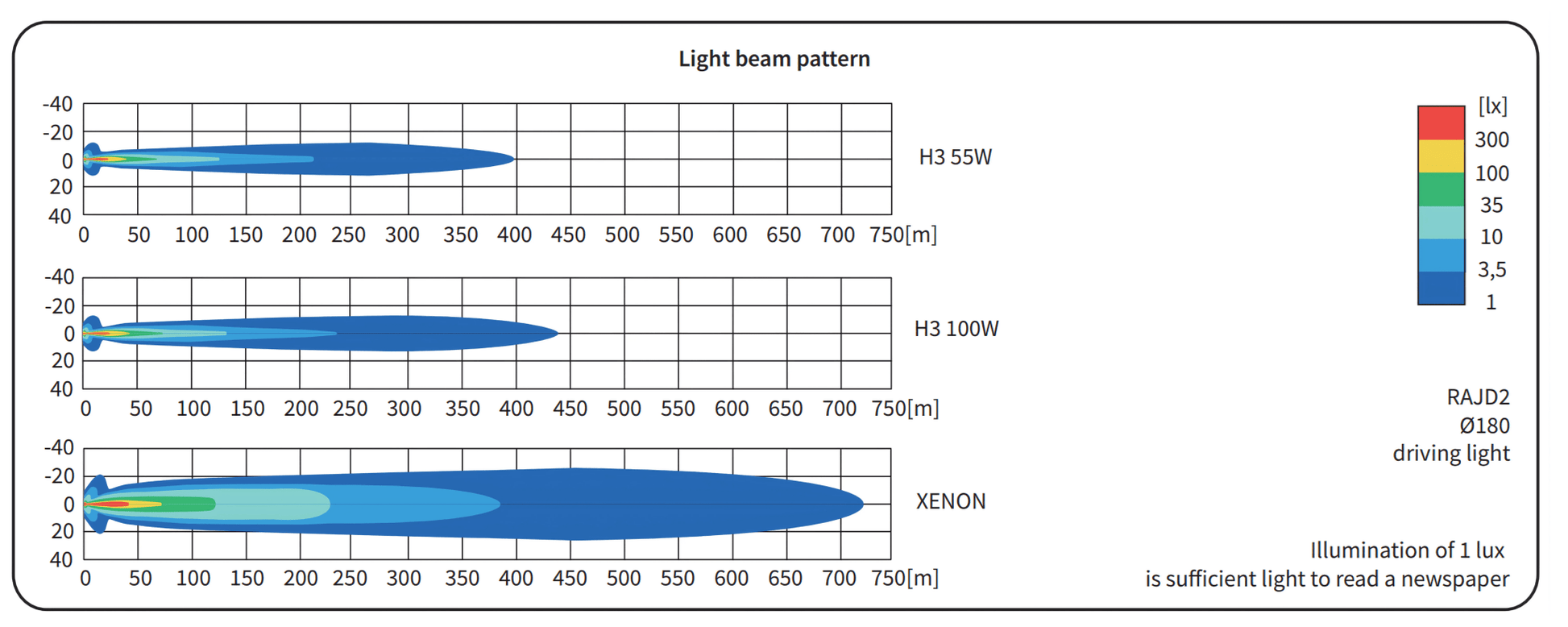

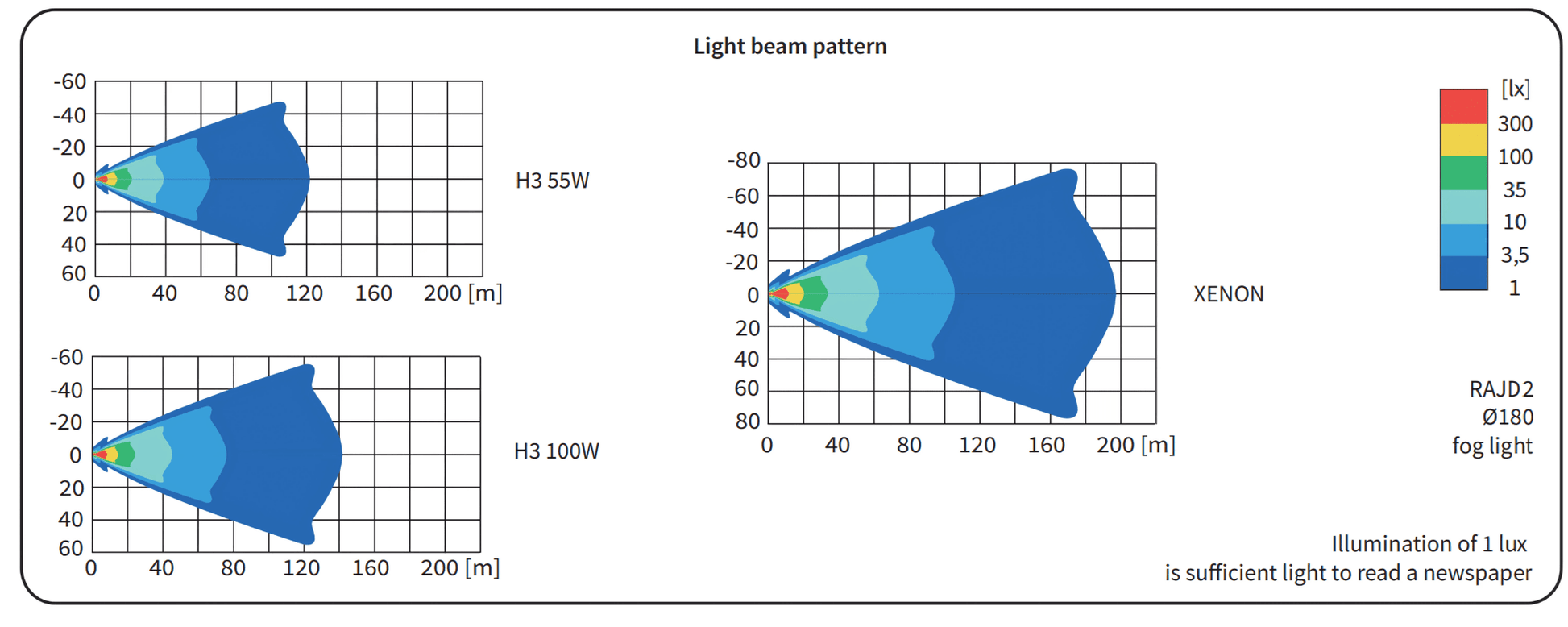

Refer to the beam pattern image for a detailed comparison of the available lighting characteristics.

What's Included?

Each WESEM 180mm lamp unit kit includes:

• 1 × 180mm lamp housing with selected Drive or Fog lens pattern.
• 1 × 172mm compact mounting plate.
• 3 × Ball-and-socket adjustment studs.
• Complete lamp adjustment hardware.
• High-quality bulb gasket.
• AMP SuperSeal electrical connector.
• SuperSeal 5P protective cap.

Please note: Bulb configuration (Xenon or halogen) is dependent on the selected option. Confirm the chosen specification when ordering.

Frequently Asked Questions

What is the diameter of the WESEM lamp unit?

The lamp housing has a diameter of 180mm. The supplied mounting plate measures 172mm in diameter.

What is the difference between the Drive and Fog lens patterns?

The Drive lens produces a longer-range beam designed to illuminate further ahead. The Fog lens produces a shorter, wider spread of light, providing better close-range coverage.

What is the difference between the 90-degree and 120-degree stud configurations?

The difference is the positioning of the three adjustment studs. Using a combination of both configurations can allow two 180mm lamps to be mounted closer together, which is particularly useful when working with smaller lamp pods.

Can these lamps be fitted into existing lamp pods?

They are designed for pod mounting and supplied with a compact 172mm mounting plate featuring multiple pre-drilled fixing positions. Always check the available space, mounting arrangement and clearance within your particular lamp pod before purchasing.

How much adjustment is available?

The three ball-and-socket adjustment studs provide up to 10 degrees of articulation without binding, allowing accurate positioning of the lighting beam.

Are the lamps available with Xenon and halogen bulbs?

Yes. Both Xenon and halogen configurations are available, depending on the selected specification.

What is the lighting range of the Drive beam?

With H3 100W halogen bulbs, the Drive beam offers a usable range approaching 450 metres. The Xenon configuration extends this to over 700 metres, with a beam width of approximately 40 metres.

What is the lighting range of the Fog beam?

The Xenon Fog configuration offers a range of up to 200 metres, with a spread of light approaching 60 metres.

Are mounting brackets and adjustment hardware included?

Yes. Each kit includes the compact mounting plate and the complete adjustment hardware required to position the lamp unit.

Are the electrical connections waterproof?

The lamp units feature AMP SuperSeal connectors and protective SuperSeal 5P caps, providing secure, weather-resistant electrical connections suitable for demanding motorsport environments.

Are these lamps suitable for rally competition?

Yes. WESEM lamp units are designed for demanding motorsport applications and are used by crews competing in European rally events.

Key Features

• Premium WESEM motorsport lighting.
• 180mm diameter lamp housing.
• Drive or Fog beam pattern options.
• Xenon or halogen configurations.
• 90-degree or 120-degree adjustment stud positioning.
• Three ball-and-socket adjustment studs.
• Up to 10 degrees of articulation.
• Compact 172mm mounting plate.
• AMP SuperSeal electrical connections.
• Designed for rally lamp pod installation.

For Xenon Units - Click here

For 55w and 100w H3 bulbs - Click Here

For drivers who value WESEM’s reputation for excellence, the Rally Drive Lamp is the standout choice
