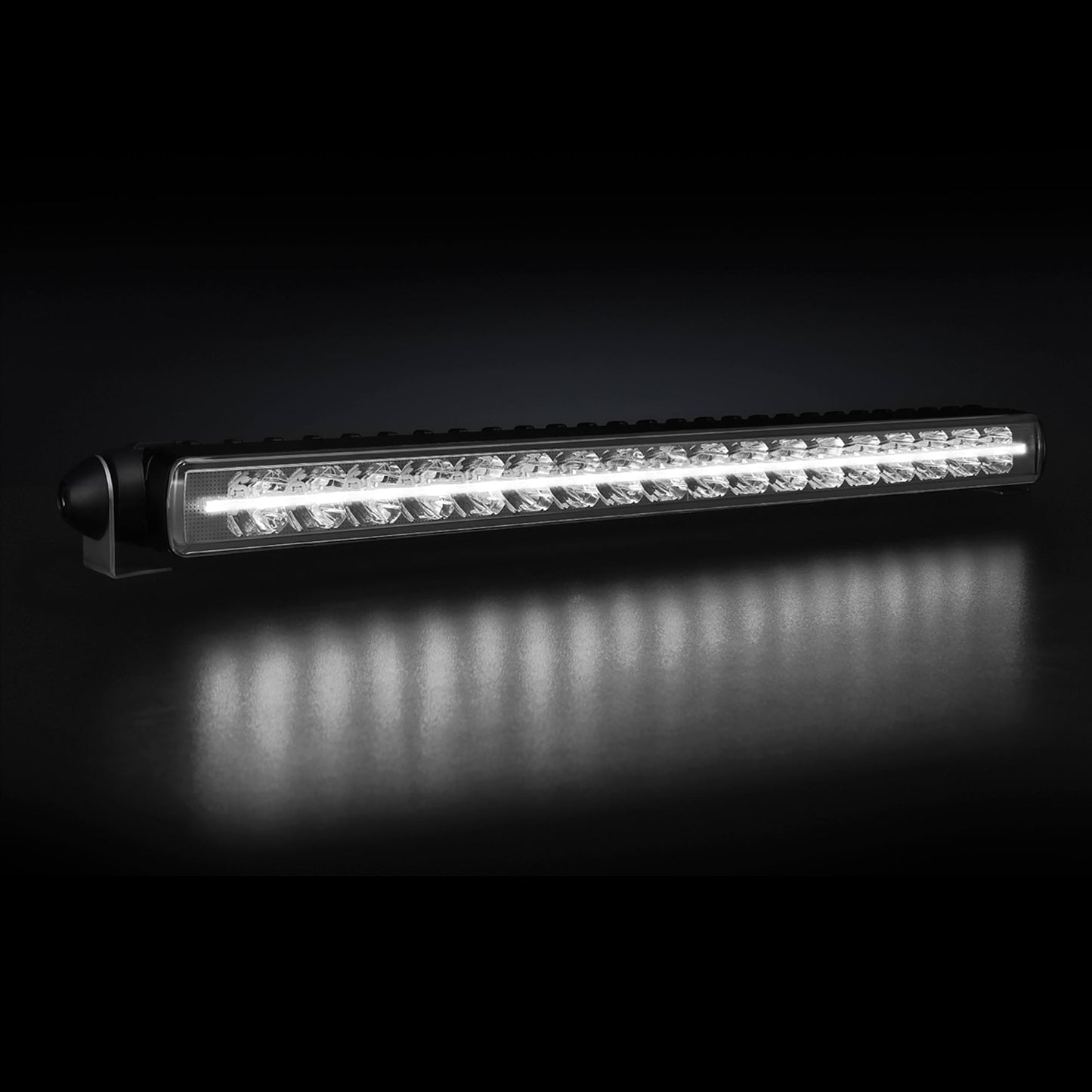

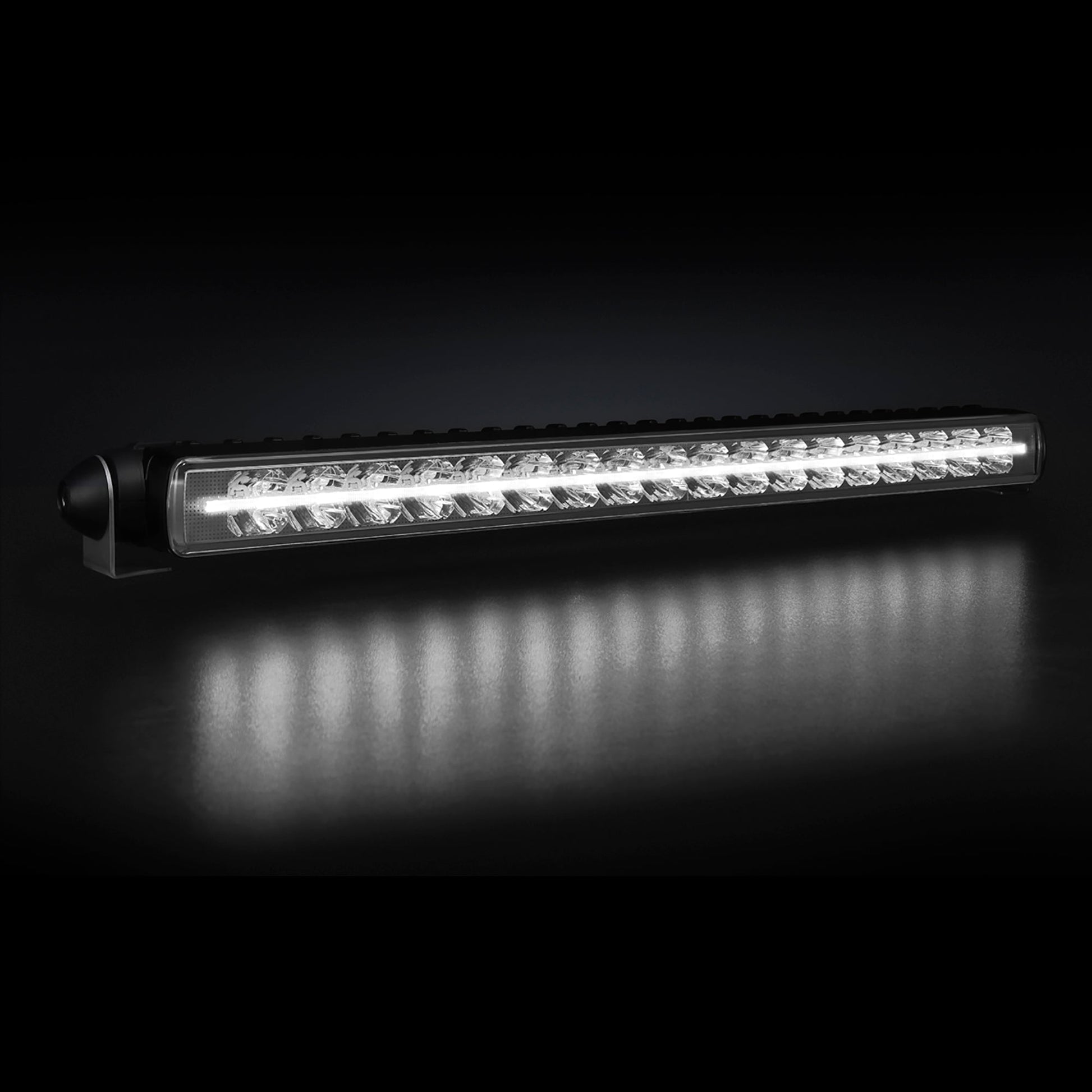

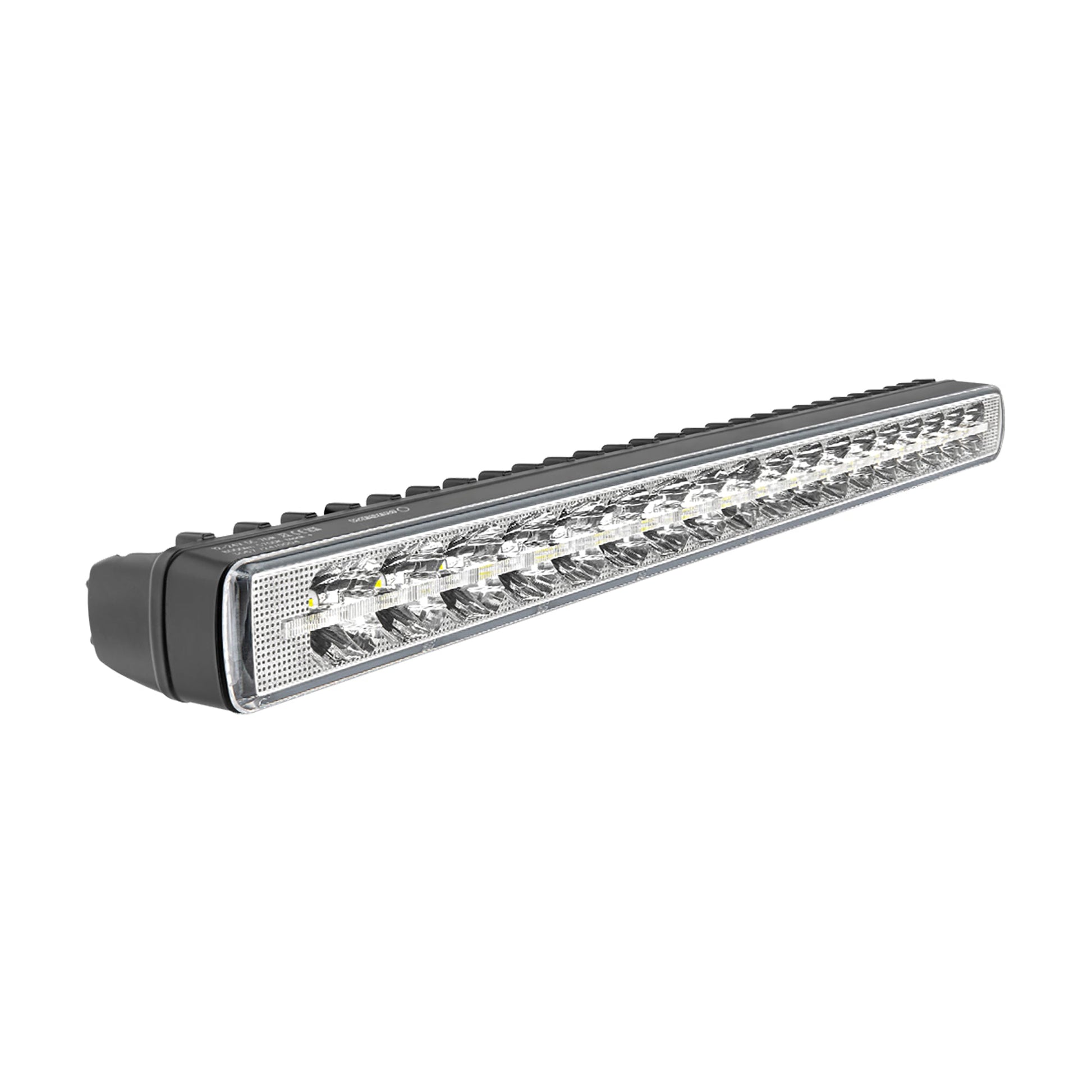

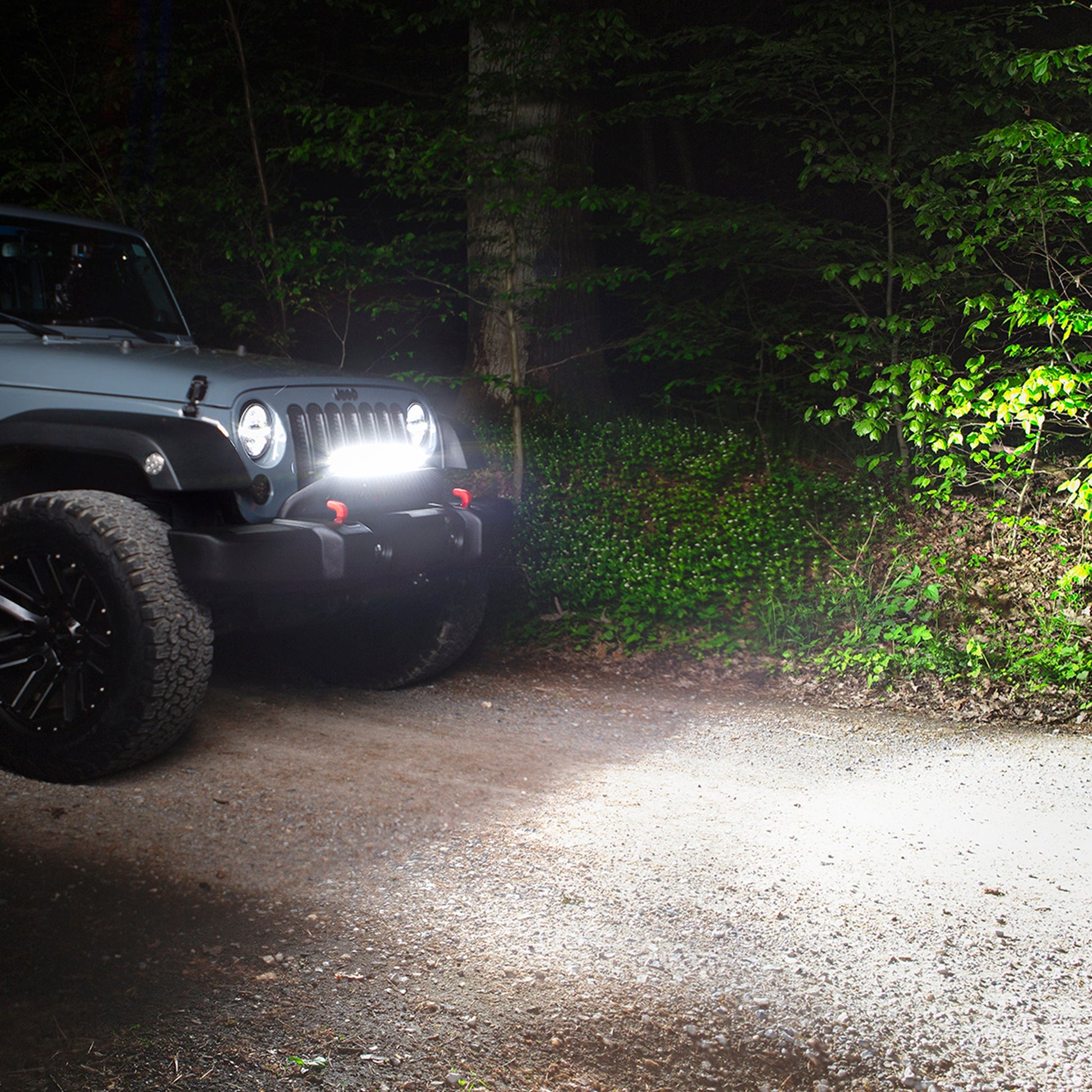

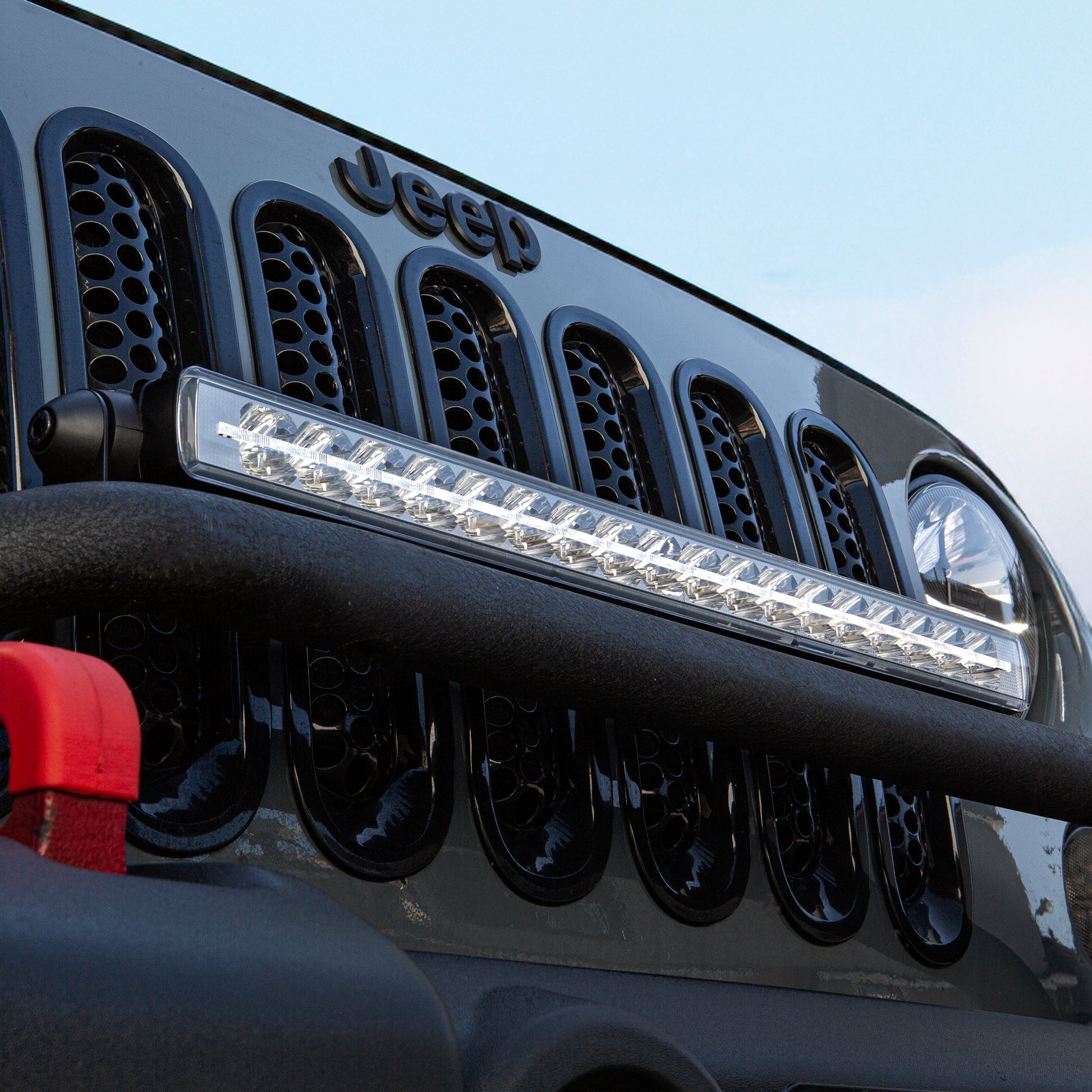

Designed for demanding environments, the CDP1F LED work lamp is ideal for service vehicles, trailers, plant machinery, and off-road applications. With powerful light output and robust construction, it provides focused illumination for working areas near vehicles, tractors, slow-moving machines, and any location where the appropriate voltage is available.
Key Features:
Exceptional Light Output:
LED module luminous flux: 14,000 lm / 8,000 lm
Lamp luminous flux: 11,200 lm / 6,400 lm
High Power Consumption:
Max power: 160W, 76W, 1.6W
Ensure good airflow to prevent temporary reduction of power due to heat build up
Durable Design:
IP67 and IP69K rated – fully protected against dust, water ingress, and high-pressure cleaning
Operating temperature: –40°C to +80°C

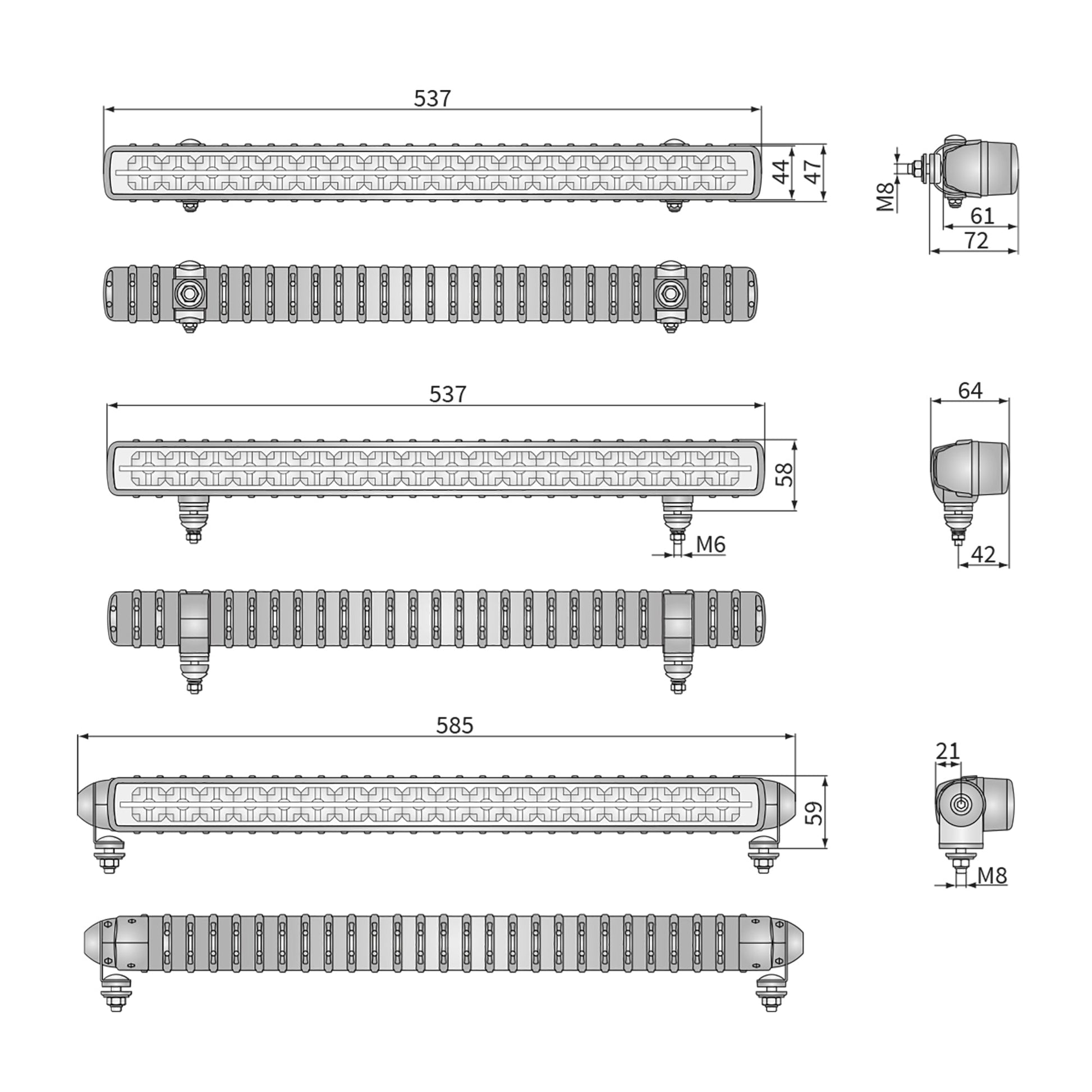

Compact housing: 537 x 47 x 62 mm
Technical Specifications:
Nominal Voltage:12V–24V DC
Permissible Voltage Range:10.5V–30V DC

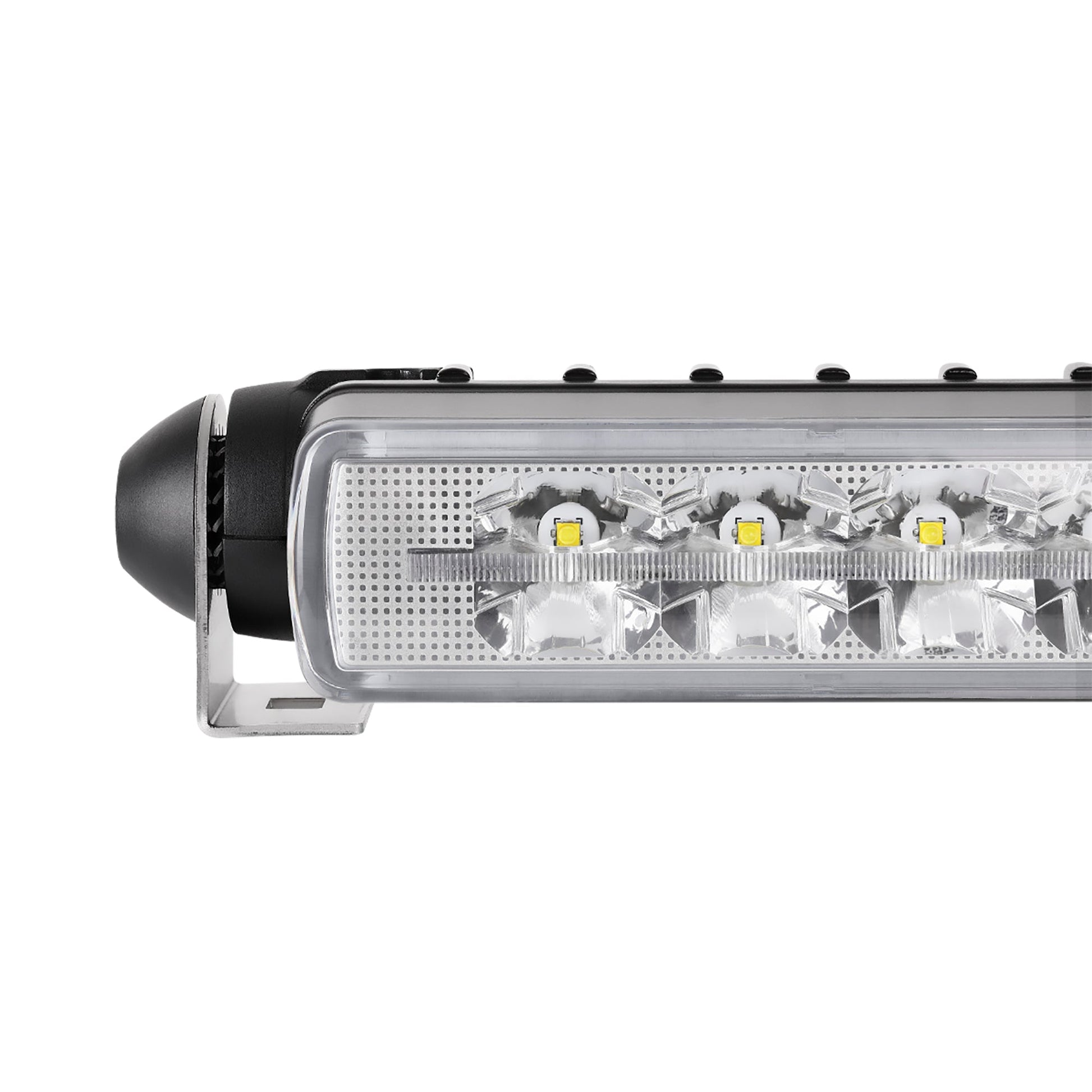

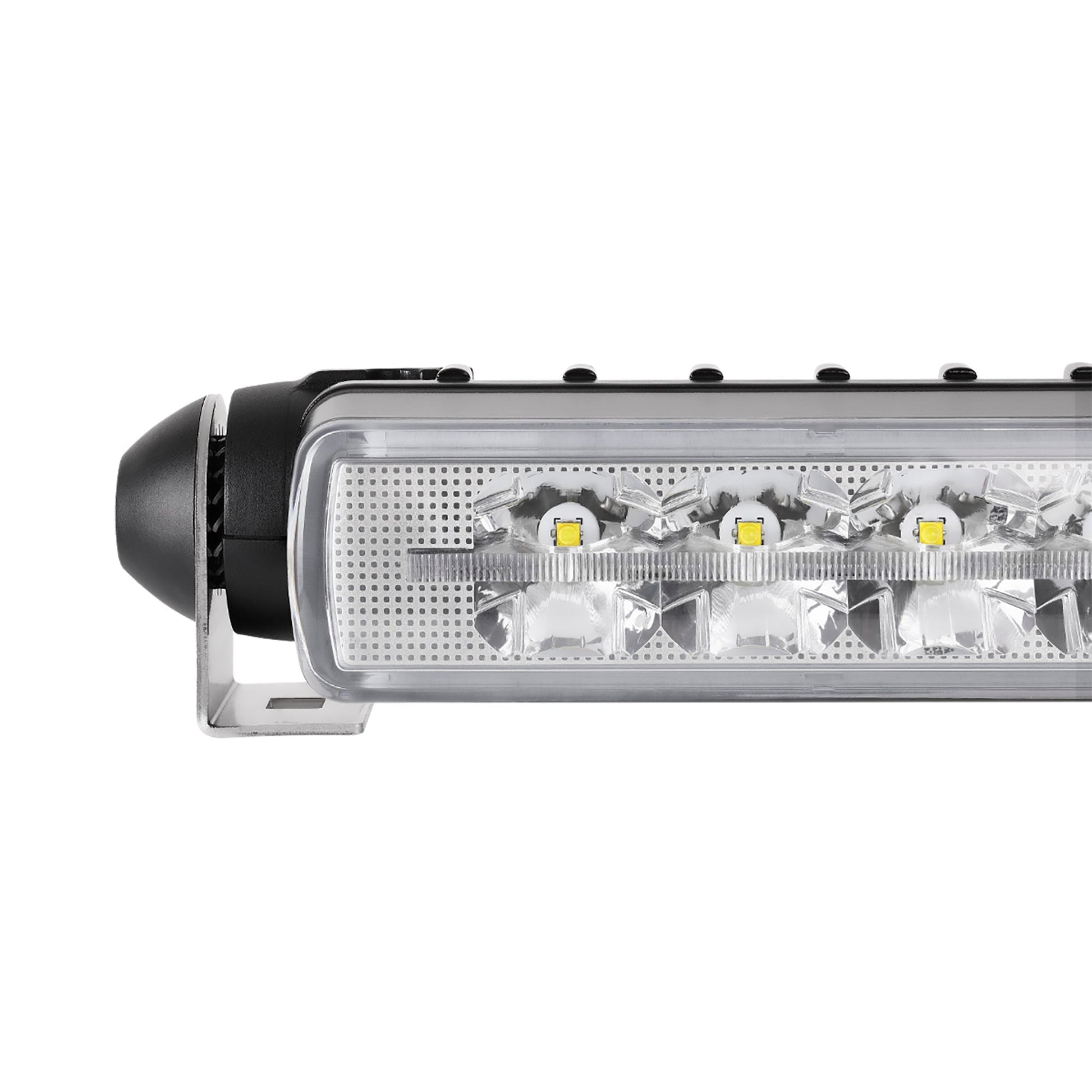

Light Source:18 x LEDs
Colour Temperature:5000K–7000K

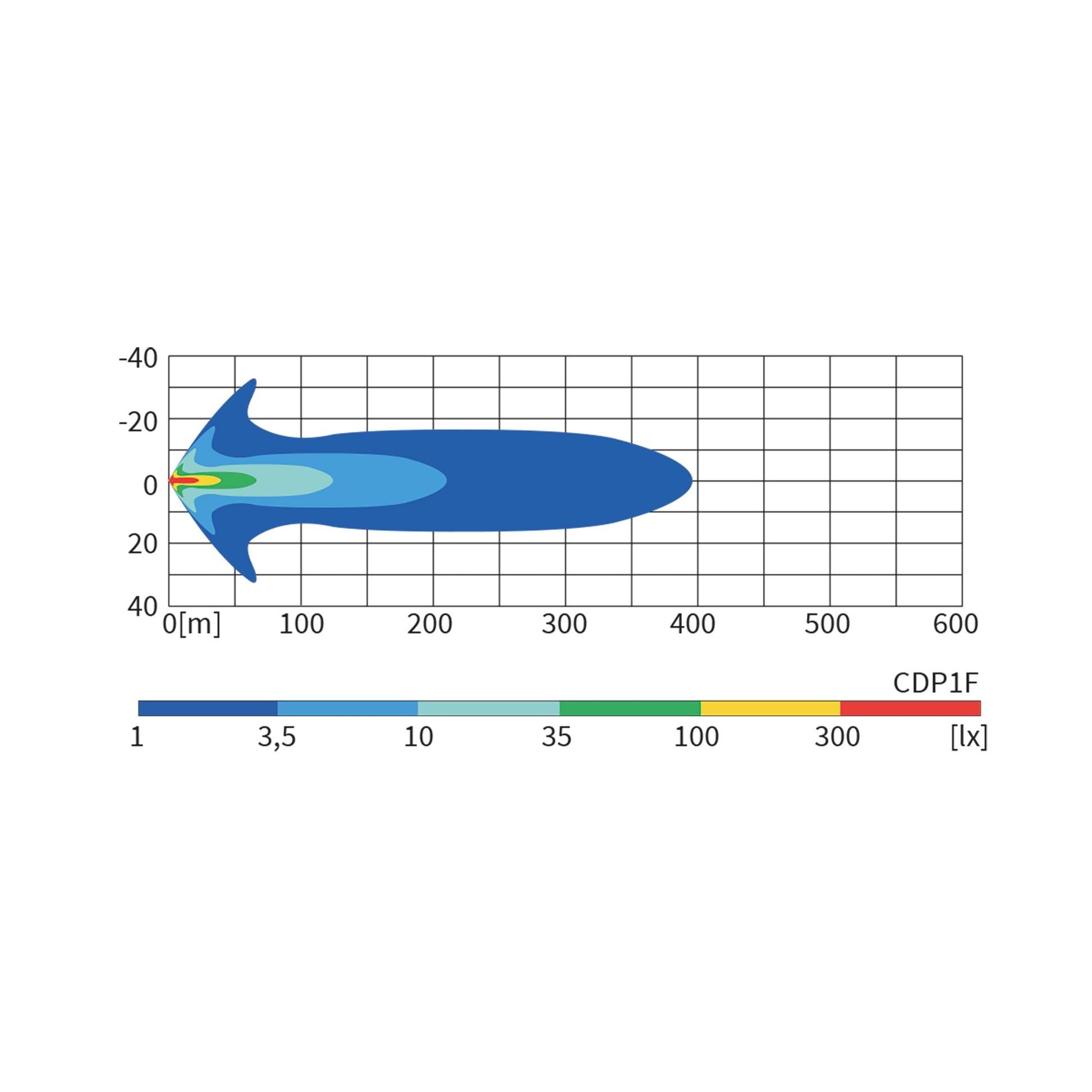

Beam Pattern:5° narrow beam for focused illumination
Housing Material:Aluminium
Lens Material:High-impact plastic
Built-in Connectors:Optional connector installation on request
Built-in Protections:
Reverse polarity protection
Overheating protection
Regulatory Compliance: Complies with EMC Directive 2004/108/EC — does not emit electromagnetic interference and is resistant to its effects. Correct polarity must be observed during installation.
