WESEM HO1 159mm Driving / Fog Lamp with Grille – H3
WESEM HO1 159mm Driving / Fog Lamp with Grille – H3
Only 2 left in stock
Couldn't load pickup availability
WESEM HO1 159mm Driving / Fog Lamp with Grille – H3

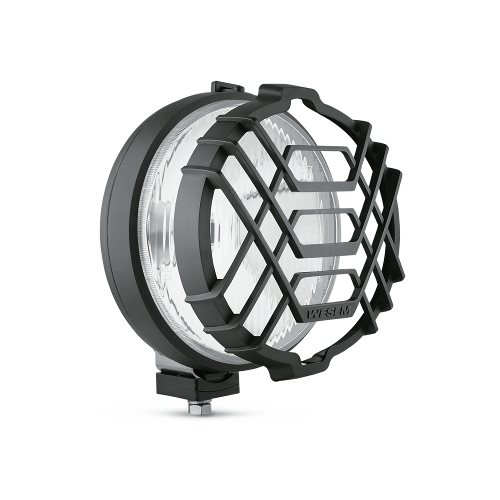

The WESEM HO1 is a robust 159mm auxiliary lamp supplied complete with a protective front grille. Designed for installation at the front of cars and commercial vehicles, it offers a choice of Drive or Fog light configurations to suit different vehicle and motorsport applications.
Its versatile mounting arrangement allows the lamp to be installed in either an upright or inverted position, providing flexibility when fitting to vehicle bumpers, lamp pods or other suitable mounting locations.
Featuring a durable black plastic and metal housing, glass lens and standard optics, the HO1 is designed for dependable performance in demanding conditions. The lamp uses an H3 bulb with a maximum rated power of 70W and operates on a 12V DC electrical system.
Available with either Drive or Fog optics, the WESEM HO1 provides a practical auxiliary lighting solution for road, rally and other motorsport applications.
Key Features
- Genuine WESEM HO1 auxiliary lamp

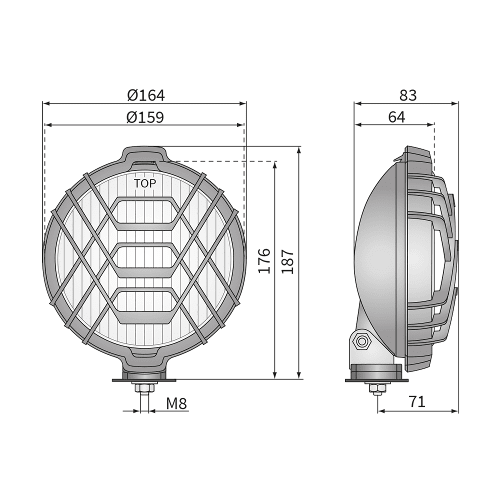

- 159mm lamp diameter
- Choice of Drive or Fog light configuration
- Supplied complete with protective front grille
- Suitable for upright or inverted installation
- H3 bulb fitment
- Maximum rated power: 70W

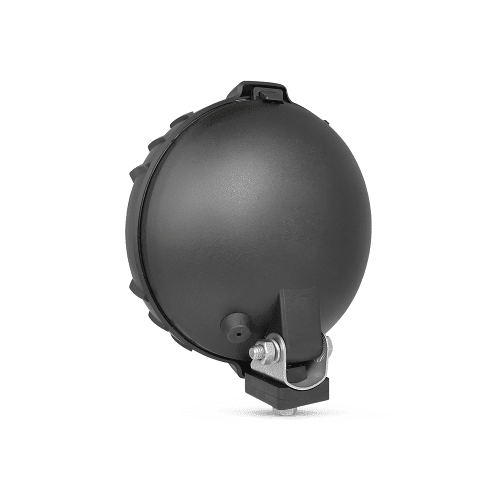

- Durable black plastic and metal housing
- Glass lens with standard optics
- M8 mounting fixings
- IP54 protection rating
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | WESEM |
| Model | HO1 |
| Diameter | 159mm |
| Light function | Drive or Fog |
| Function markings | B / HR |
| Reference mark | 17.5 |
| Light source | H3 bulb |
| Maximum power | 70W |
| Nominal voltage | 12V DC |
| Optics | Standard |
| Protection rating | IP54 |
| Housing | Black plastic and metal |
| Lens | Glass |
| Mounting | M8 fixings |
| Installation | Upright or inverted |
Available Options
Choose the required light configuration:
- Drive Light: For forward-facing auxiliary illumination.
- Fog Light: For additional fog lighting.
What's Included?
- 1 x WESEM HO1 159mm lamp unit
- 1 x Protective front grille
Please note: H3 bulb is not supplied and must be purchased separately.
Frequently Asked Questions
Does the WESEM HO1 come with a bulb?
No. The lamp is designed for an H3 bulb, but the bulb is not included.
Can I choose between Drive and Fog versions?
Yes. The WESEM HO1 is available with either Drive or Fog optics. Select the required version when ordering.
Can the lamp be mounted upside down?
Yes. The lamp is designed to be installed in either an upright or inverted position.
Does the lamp include a protective grille?
Yes. The HO1 is supplied complete with its front protective grille.
What voltage does the lamp operate on?
The specified nominal operating voltage is 12V DC.
What is the maximum bulb power?
The lamp has a maximum rated power of 70W.
Is the lamp waterproof?
The lamp carries an IP54 rating, providing protection against dust ingress and water splashing. It should not be treated as fully waterproof or suitable for immersion.
