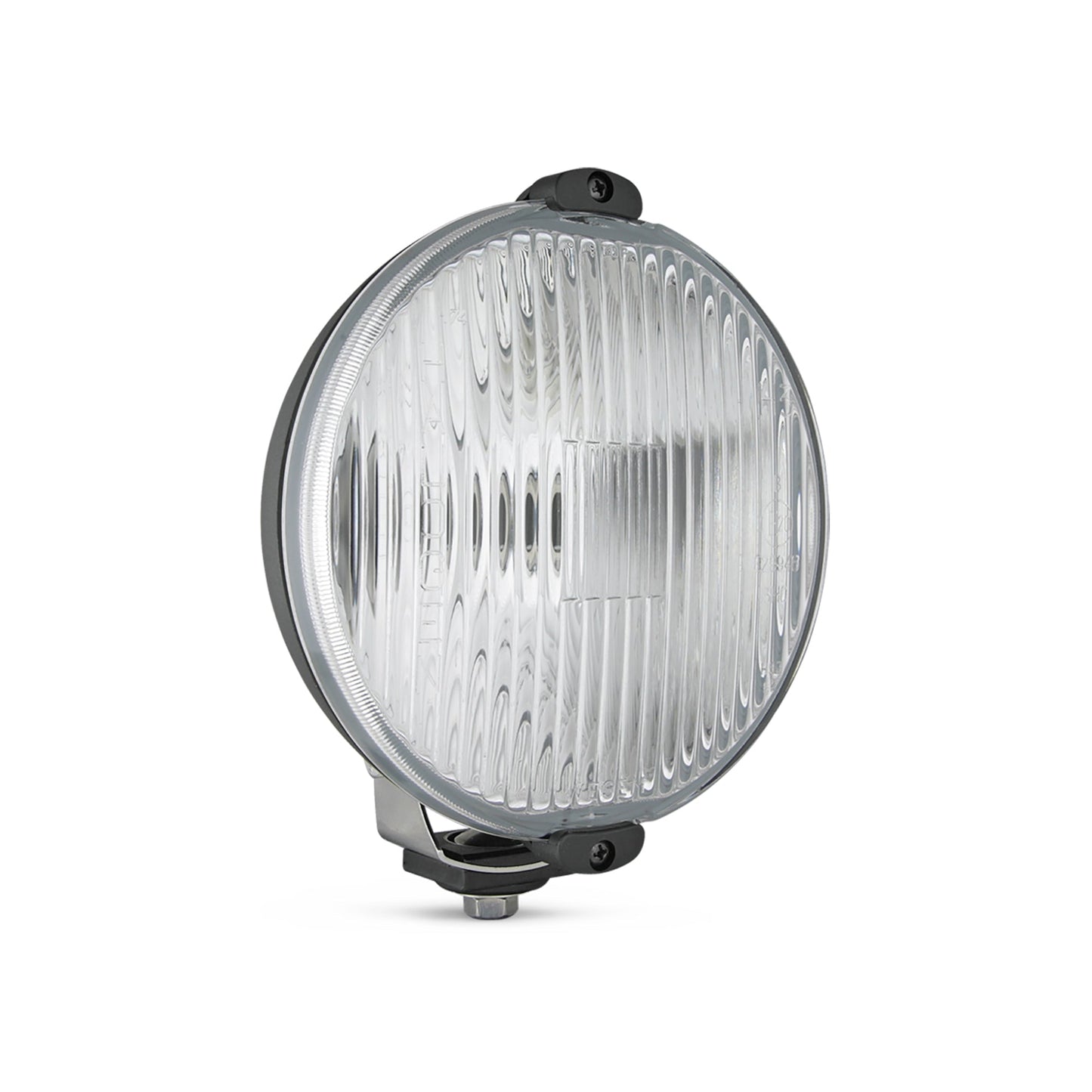

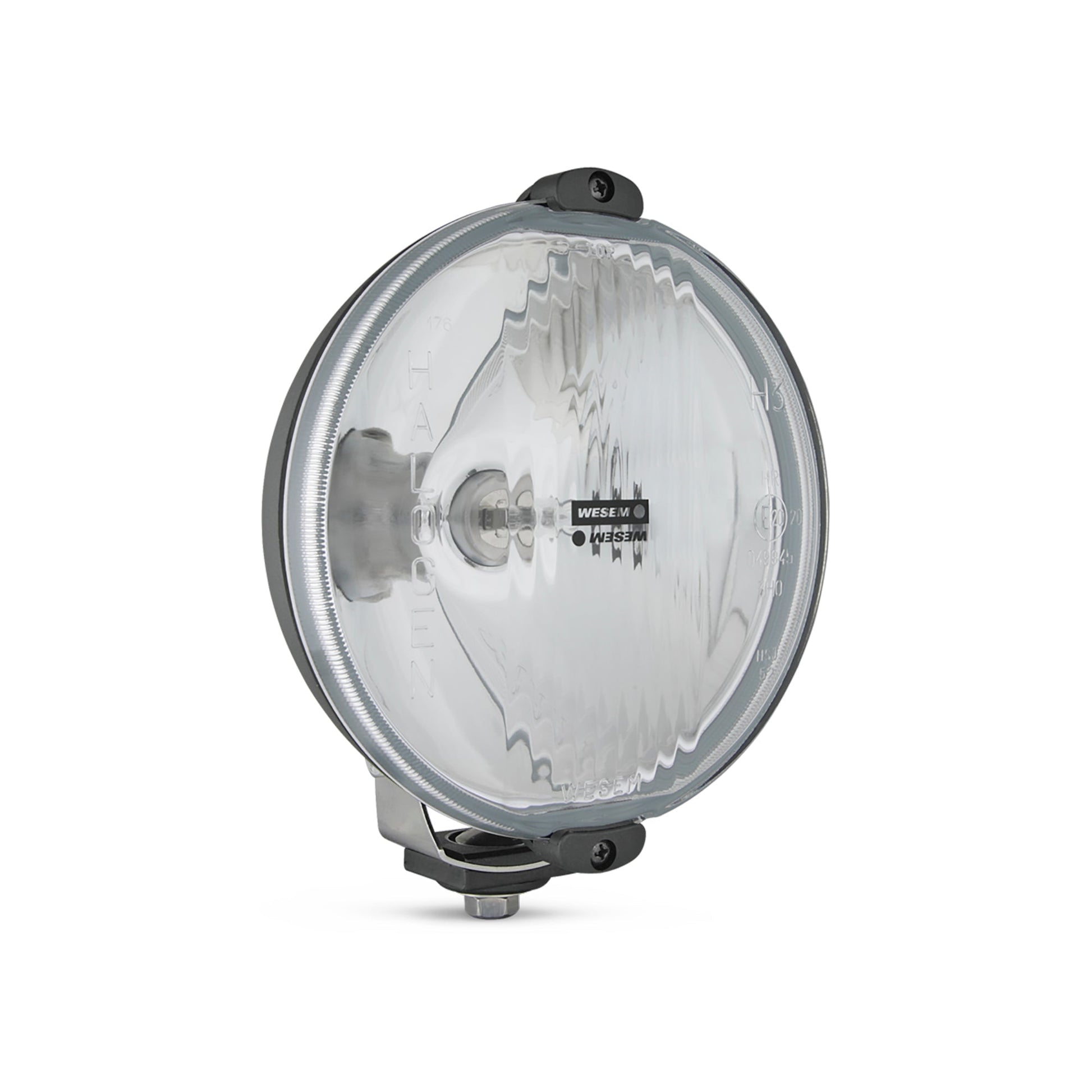

WESEM HO3 152mm Auxiliary Driving / Fog Lamp – 12V–24V

The WESEM HO3 is a versatile 152mm auxiliary lamp designed for installation at the front of cars, service vehicles, motorhomes and commercial vehicles.

Available with a choice of Drive or Fog optics, it provides additional forward illumination to suit different vehicle and lighting requirements. Its flexible mounting arrangement allows installation in either an upright or inverted position, making it easier to accommodate different mounting locations and vehicle configurations.

Featuring a robust black plastic and metal housing, glass lens and standard optics, the HO3 is designed for dependable performance in demanding environments. It uses an H3 bulb and operates on 12V–24V DC electrical systems.

An optional stone guard is also available separately to provide additional lens protection when driving on gravel or loose surfaces.

Key Features

• Genuine WESEM HO3 auxiliary lamp
• 152mm diameter
• Choice of Drive or Fog light configuration
• Suitable for upright or inverted installation
• H3 bulb fitment
• Maximum rated power: 70W
• Suitable for 12V–24V DC electrical systems
• IP54 protection rating

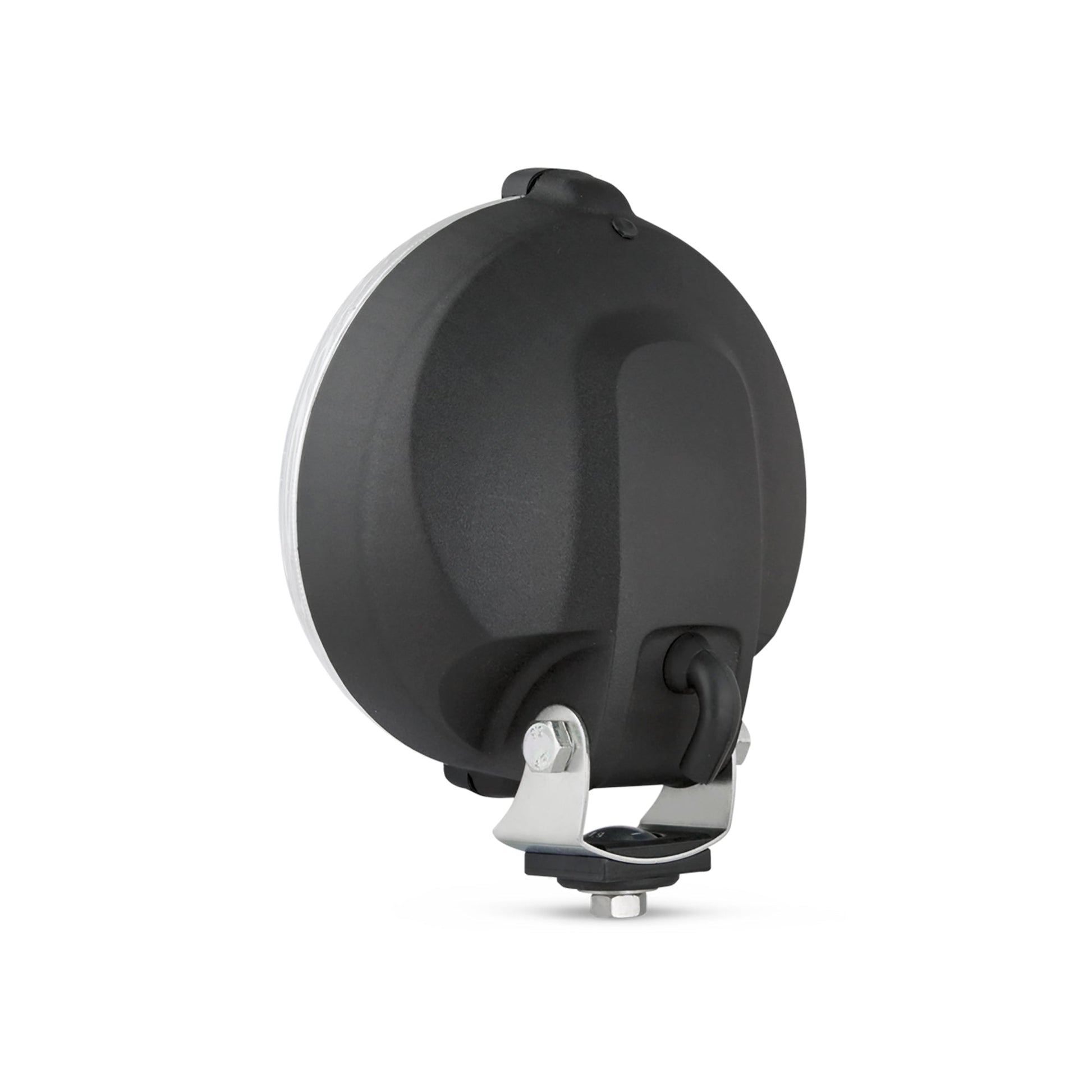

• Durable black plastic and metal housing
• Glass lens

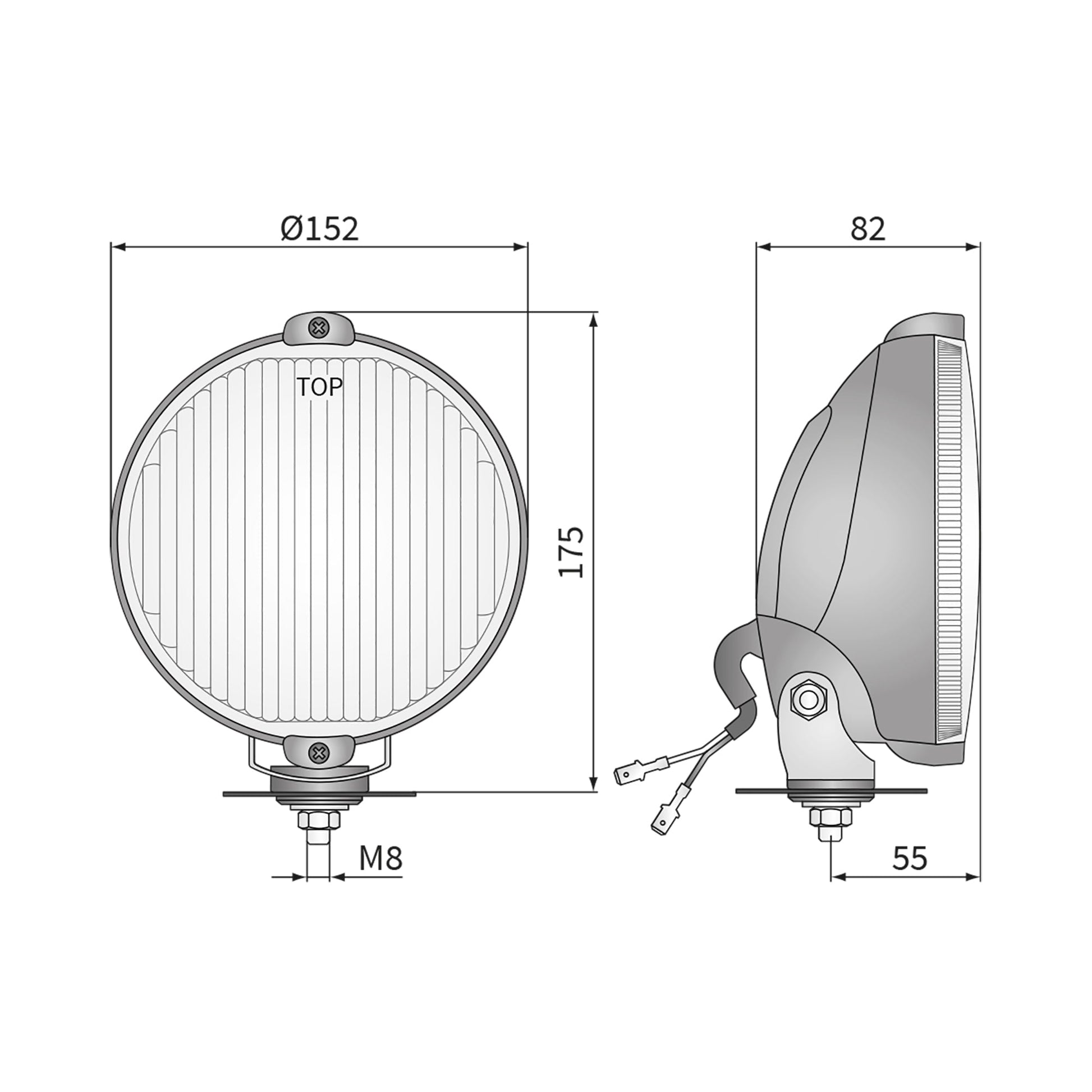

• M8 mounting fixings
• Optional stone guard available separately

Technical Specifications

Available Options

Choose the required lighting configuration:

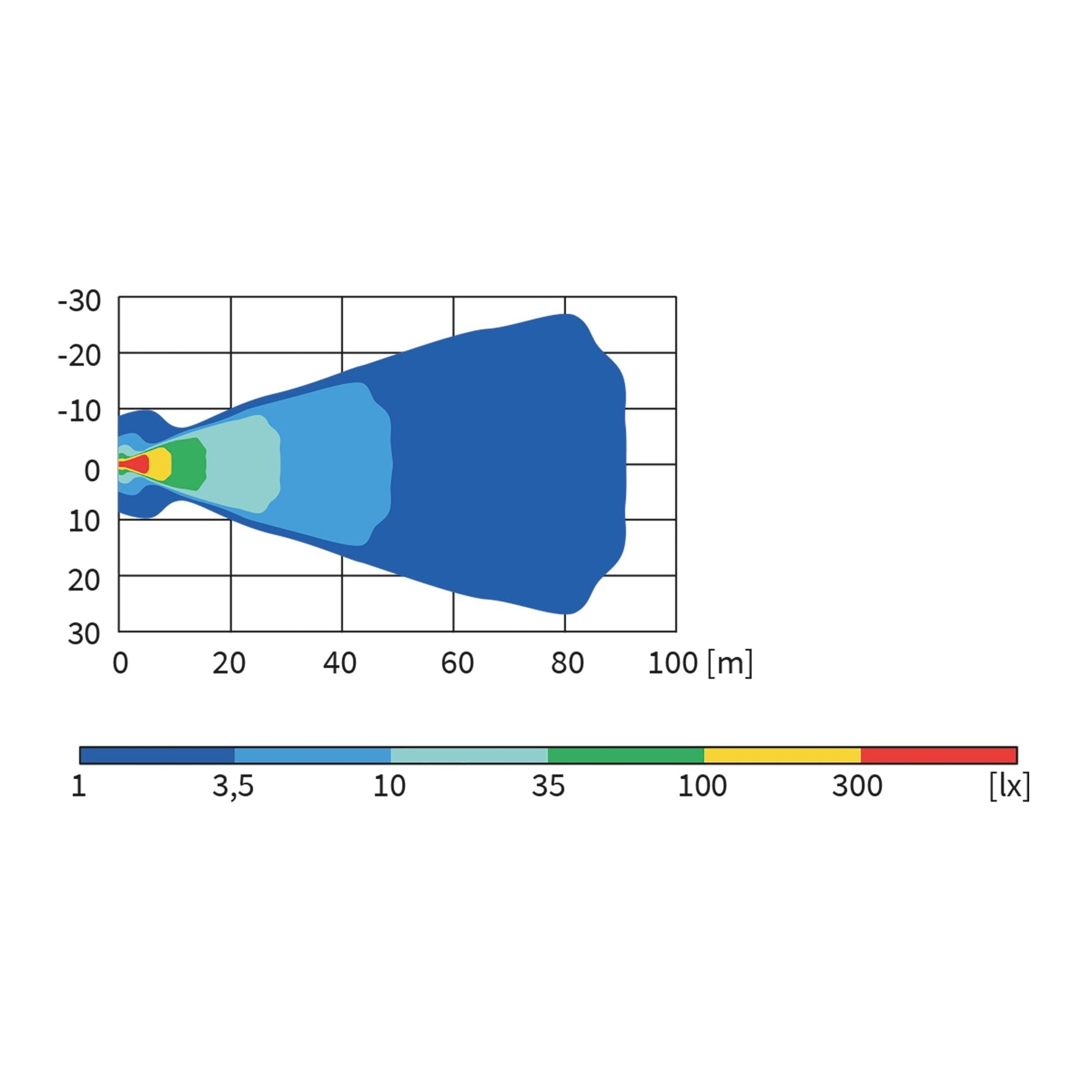

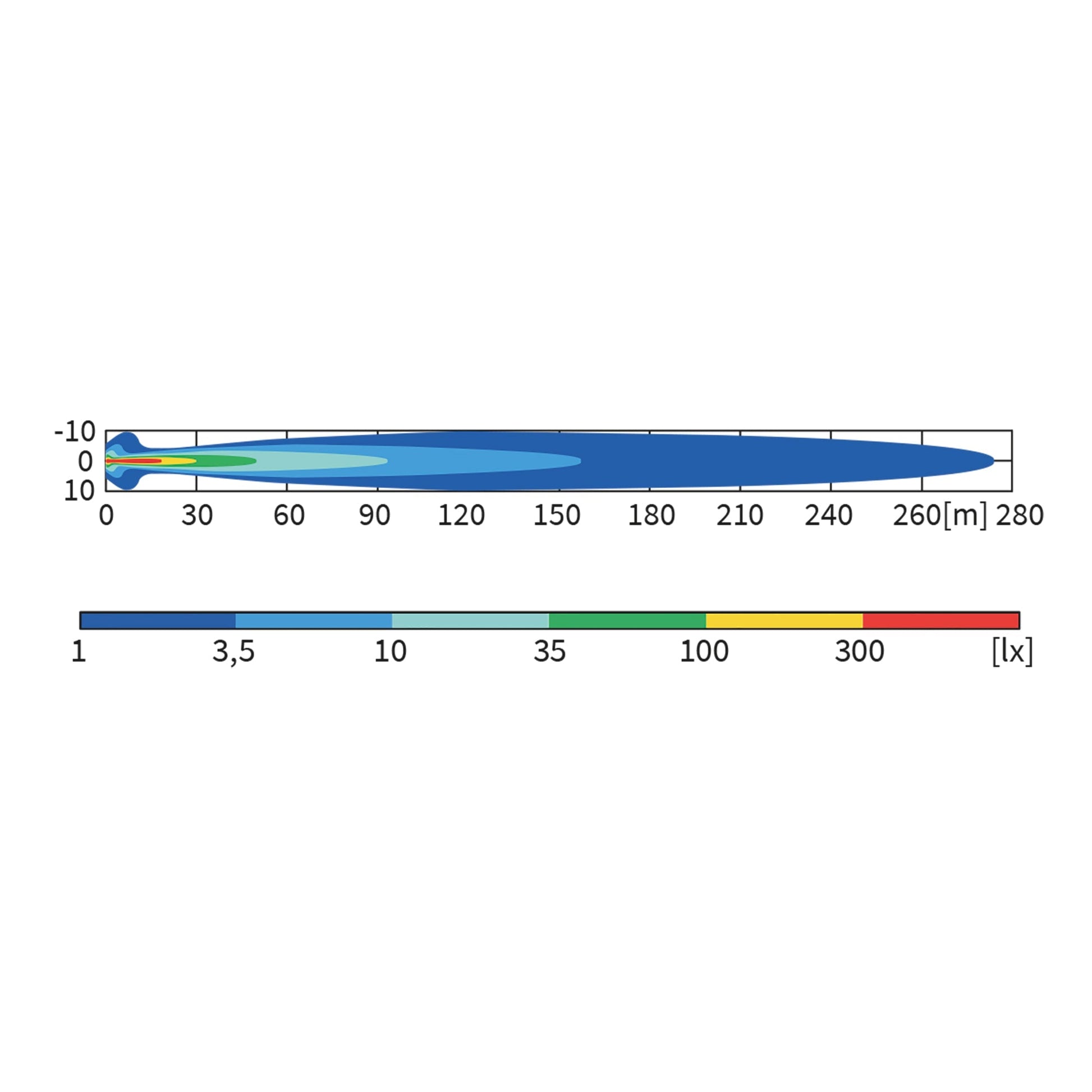

• Drive Light: For additional forward driving illumination.
• Fog Light: For additional fog lighting.

Optional Stone Guard

An optional stone guard is available separately to help protect the glass lens against stones and debris, particularly useful for gravel rallying and other loose-surface motorsport applications.

What's Included?

• 1 x WESEM HO3 152mm auxiliary lamp

Please note: H3 bulb is not supplied. Optional stone guard is sold separately.

Frequently Asked Questions

Is the WESEM HO3 available as a Drive or Fog lamp?

Yes. The HO3 is available with a choice of Drive or Fog optics. Select the required configuration when ordering.

Which bulb does the lamp use?

The lamp uses an H3 bulb with a maximum rated power of 70W. The bulb is not included.

Can the lamp be mounted upside down?

Yes. The HO3 is designed for either upright or inverted installation.

Will it work on both 12V and 24V vehicles?

Yes. It is specified for 12V–24V DC electrical systems.

Does it include a stone guard?

No. An optional stone guard is available separately to provide additional protection for the glass lens.

What is the IP rating?

The lamp carries an IP54 protection rating, providing protection against dust ingress and water splashing.

What mounting fixings does it use?

The lamp uses M8 mounting fixings.
