Lifeline ZERO® 275 FIA 8865:2015 Fire Suppression System

Lifeline continues to lead the market in FIA 8865:2015 technology with the launch of the ZERO® 275 — a next-generation fire suppression system designed for maximum safety, performance, and installation efficiency.

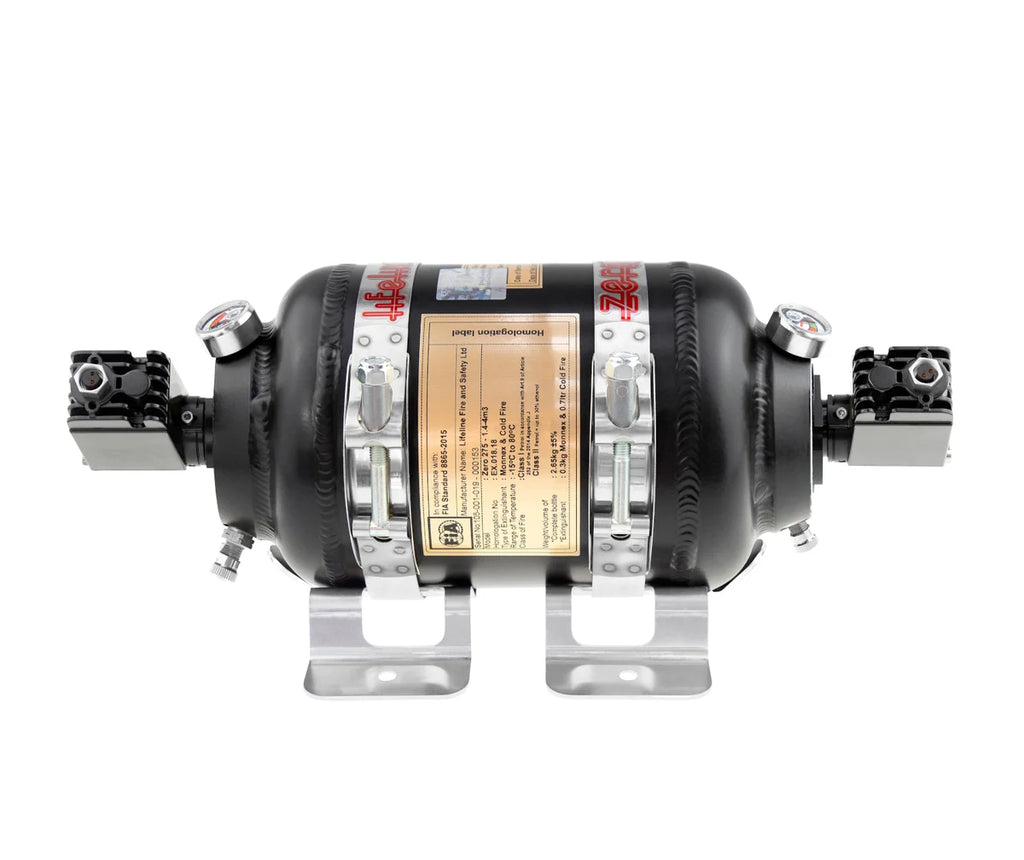

The complete system, including all ancillaries, weighs under 3.5 kg, while the compact filled cylinder weighs just 2.6 kg. With a 125 mm diameter and a total length of 308 mm, it is exceptionally easy to package and install, making it ideal for high-performance and space-conscious competition vehicles.

Patent Application Number: GB1813948.5

FIA Usage

Recommended for use across all FIA categories and mandatory in:

• WRC

• R5, R3, and R2

• WRX

• GT3

• T1 and RG-T

• TCR (from 2020)

Technical Overview

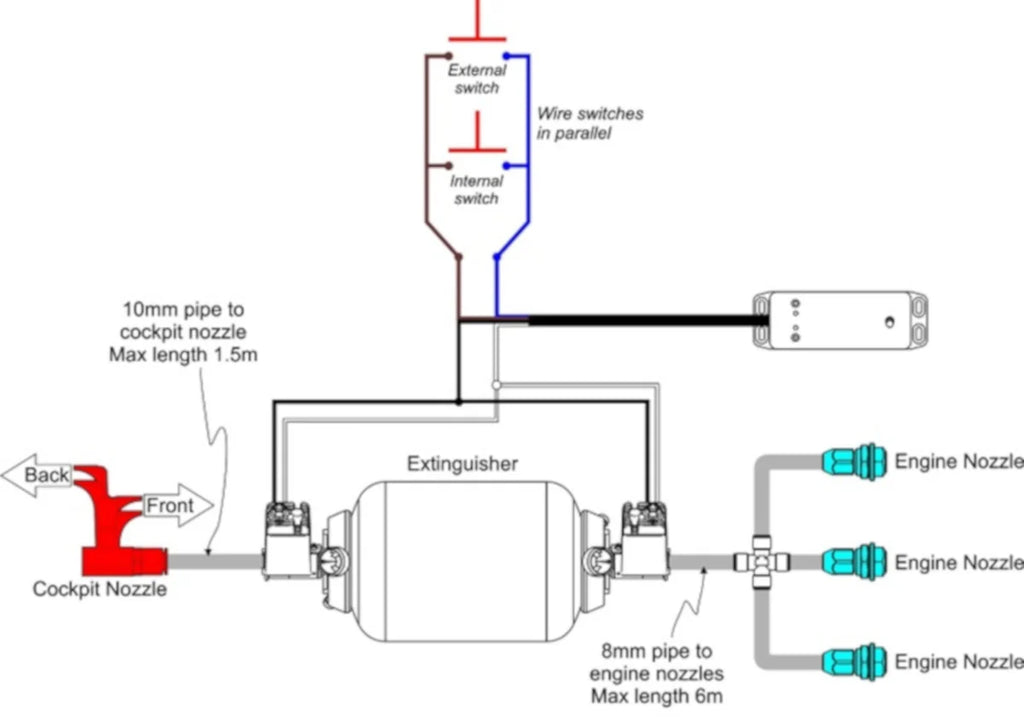

During the development of the ZERO® 275, Lifeline utilised advanced fluid dynamics analysis to deliver a major step forward in driver safety. The system optimises suppressant flow, allowing for floor-mounted cockpit nozzles that help lower the vehicle’s centre of gravity.

In the engine bay, three outlet nozzles and the use of lightweight, high-performance materials enable a significant reduction in suppressant volume compared with previous 8865:2015 systems. Thanks to this intelligent design, the overall cost and weight of the ZERO® 275 are comparable to FIA Technical List 16 systems, while providing superior protection.

Developed in collaboration with many of the world’s leading constructors, the ZERO® 275 features a simple installation kit and an electronic control system, making it the perfect solution for competitors seeking to save weight, reduce complexity, and increase fire safety.

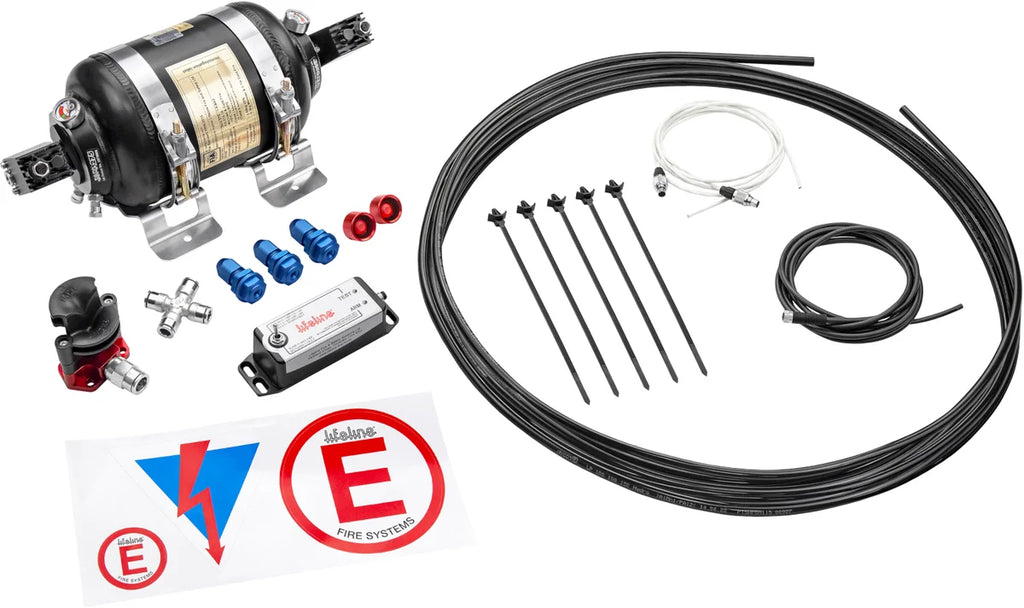

Kit Contents

• Floor-mounted cockpit nozzle

• Engine bay nozzles ×3

• FIA-compliant bracket and straps

• Tubing: 10 mm diameter (cockpit) / 8 mm diameter (engine)

• Cross connector

• Intelligent control box

• Waterproof switches ×2

• Wiring for switches and control box

Key Benefits:

• FIA 8865:2015 compliant

• Lightweight design – under 3.5 kg total

• Easy to install and package

• Reduced suppressant volume without compromising safety

• Lower centre of gravity through floor-mounted nozzle configuration

• Cost and performance optimised
