FIA 6-Pole Master Switch / Battery Isolator

FIA 6-Pole Master Switch / Battery Isolator

Resistor Included in the kit

Regular price £22.99
Regular price Sale price £22.99
Sale Sold out
Shipping calculated at checkout.

Free UK delivery when you spend £100 – just £77.01 more

Full specs, features & FAQ
Quantity
View full details

The detailsSpecs, features & FAQ

FIA 6-Pole Master Switch / Battery Isolator – Red Removable Key

The FIA 6-Pole Master Switch / Battery Isolator is designed to provide a central electrical shutdown for race and rally cars. Its six-pole configuration allows the battery supply and engine electrical circuits to be isolated, including the alternator circuit, helping prevent the engine from continuing to run after the master switch is activated.

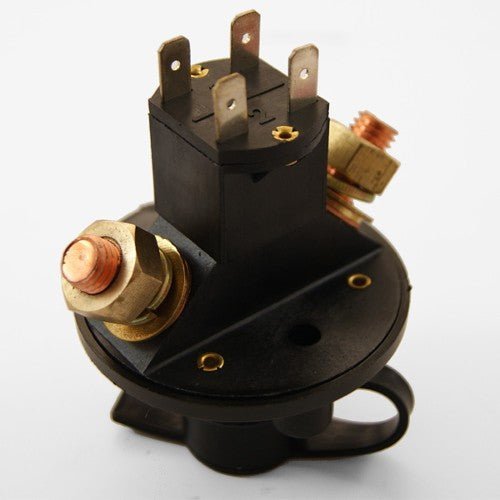

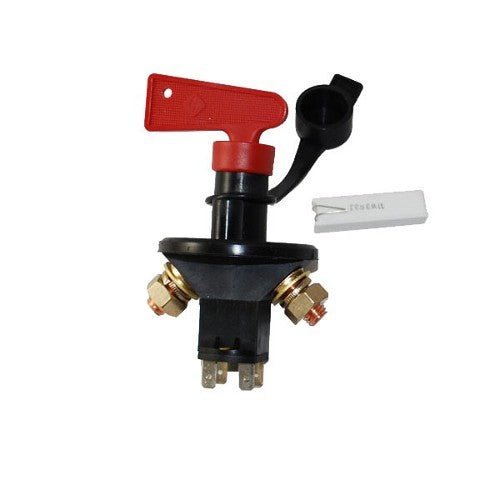

Supplied with a red removable key, this switch features 10mm terminals, an included resistor for the alternator circuit and a rubber protective cover to help shield the switch from dirt and debris when the key is removed.

Suitable for motorsport electrical installations, the switch must be wired correctly for the vehicle's alternator and ignition system to ensure effective shutdown.

Key Features

  • Six-pole design – allows the battery and designated engine electrical circuits to be switched off together.
  • Motorsport shutdown function – designed to stop the engine and isolate electrical systems when correctly installed.
  • 10mm terminals – for compatible electrical connections.
  • Included resistor – intended for use in the alternator shutdown circuit, following the wiring diagram.

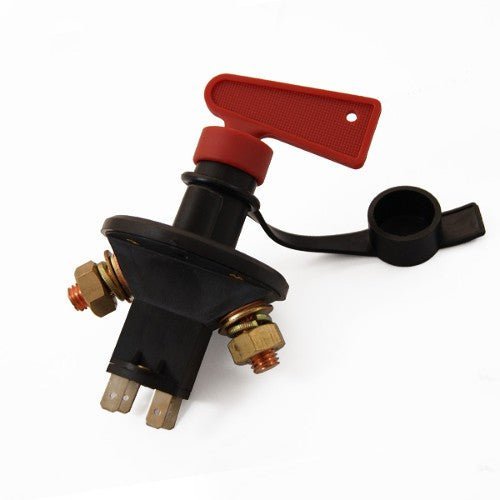

  • Removable red key – provides a clearly identifiable switch control.
  • Pull-cable provision – small hole in the key allows attachment of a suitable pull cable.

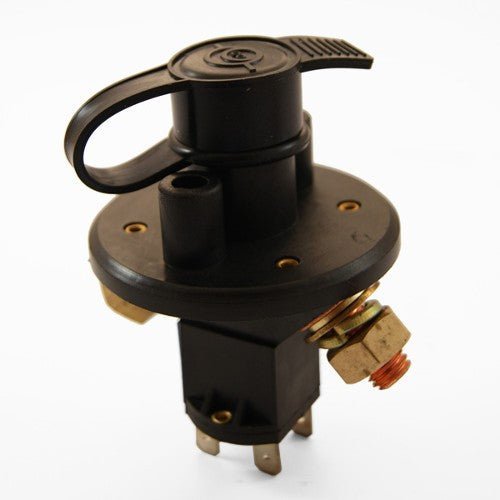

  • Rubber protective cover – helps protect the switch from dirt and debris when the key is removed.
  • Race and rally applications – intended for motorsport vehicle electrical systems.

Specifications

Specification Details
Product type 6-pole master switch / battery isolator
Poles 6
Terminal size 10mm
Key colour Red
Key type Removable
Pull-cable provision Hole in key
Included accessory Resistor
Protection Rubber cover
Application Motorsport electrical isolation

How It Works

A six-pole master switch is designed to interrupt the relevant electrical circuits when operated. In a correctly configured installation, this includes the battery supply and the designated ignition or engine electrical circuit, with the alternator circuit arranged to help prevent damaging voltage spikes during shutdown.

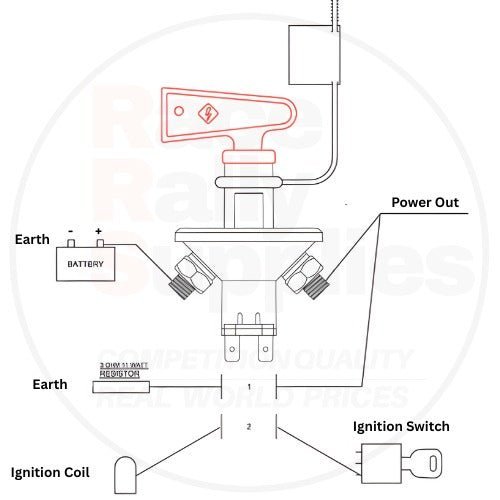

The included resistor is intended for the specified alternator wiring arrangement. Follow the manufacturer's wiring diagram carefully: incorrect wiring can damage electrical components or prevent the switch from stopping the engine as intended.

Installation

  1. Plan the wiring using the switch manufacturer's diagram and the vehicle's electrical-system requirements.
  2. Identify the battery, alternator and engine shutdown circuits that must be controlled.
  3. Install the switch securely in an accessible position appropriate for the vehicle and applicable competition regulations.
  4. Connect the terminals using correctly rated cables and suitable terminals.
  5. Install the supplied resistor in the designated position in the alternator circuit, as instructed by the manufacturer.
  6. Fit the red removable key and check that the rubber cover is available to protect the switch when the key is removed.
  7. Test the shutdown function and verify that the engine stops and the intended electrical circuits are isolated.

Important: Master-switch wiring is safety-critical. Installation should be completed by a suitably qualified automotive electrician or motorsport technician. Confirm the switch's wiring diagram and current rating before use.

Frequently Asked Questions

What is a six-pole master switch used for?

It provides a means of isolating the battery and switching off designated engine and electrical circuits. Correct wiring is essential for effective shutdown.

Does this switch stop the engine?

It is designed to support engine shutdown as part of a correctly wired installation, including the appropriate alternator and ignition circuits. The result depends on the vehicle's electrical architecture and wiring.

Why is a resistor included?

The resistor is intended for the specified alternator circuit arrangement. It helps manage the electrical behaviour of the alternator during shutdown when installed according to the manufacturer's instructions.

Is the key removable?

Yes. The switch is supplied with a red removable key, which also has a small hole for attaching a suitable pull cable.

Does it include a protective cover?

Yes. A rubber cover is supplied to help protect the switch from dirt and debris when the key is not fitted.

Is it suitable for FIA-regulated competition?

The supplied product description identifies it as FIA-compliant. Before competition use, confirm the applicable FIA or championship regulations and the switch's current approval or compliance documentation, as requirements can vary by vehicle and category.
